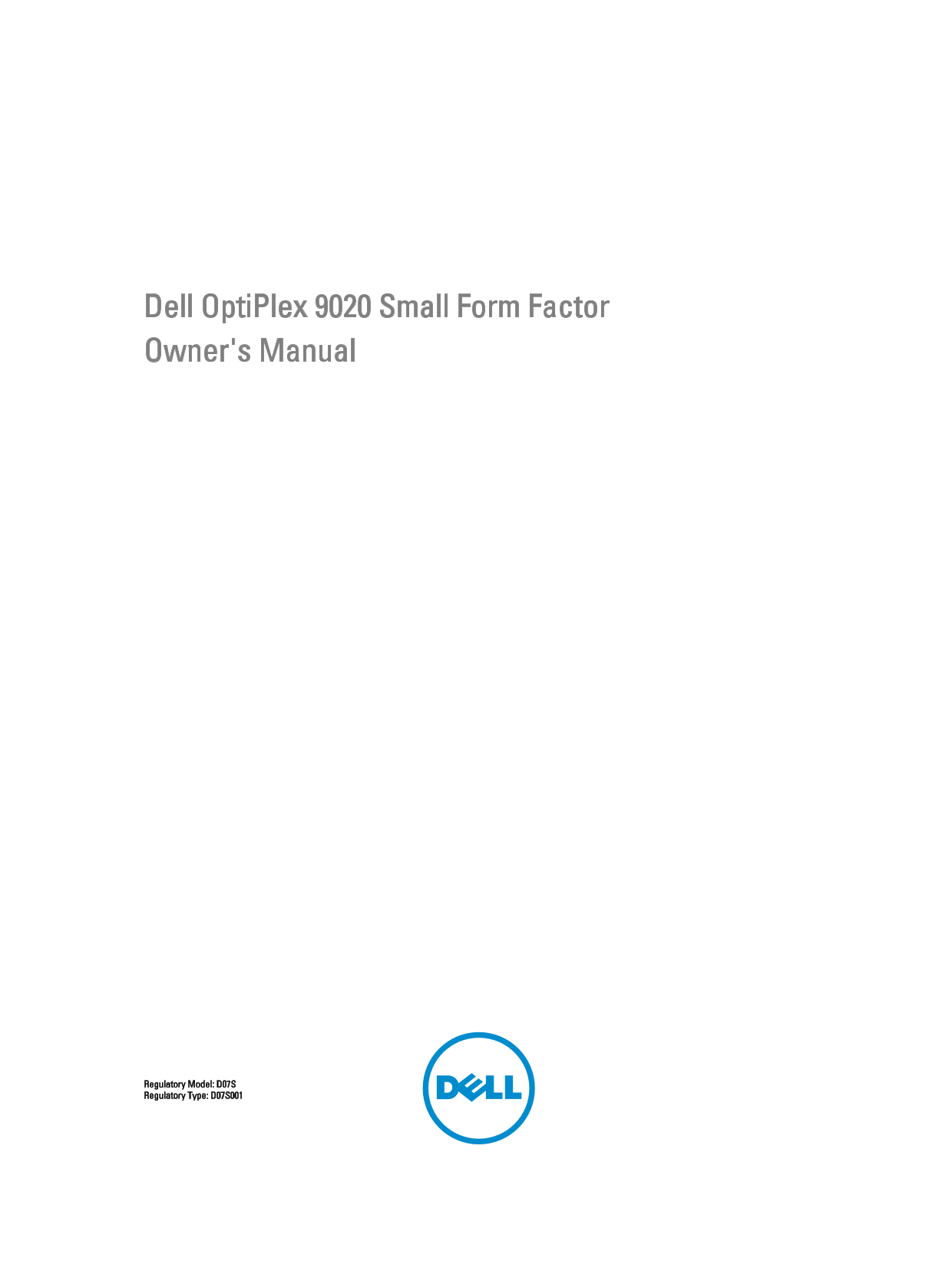

Dell Opti Plex 9020 Small Form Factor Owner's Manual
Regulatory Model: D07S Regulatory Type: D07S001
Page Summary Contents For Dell OptiPlex 9020 Small Form Factor Owner's Manual
Page 1
Dell Opti Plex 9020 Small Form Factor Owner's Manual Regulatory Model: D07S Regulatory Type: D07S001
Page 2
Notes, Cautions, and Warnings NOTE: A NOTE indicates important information that helps you make better use of your computer. CAUTION: A CAUTION indicates either potential damage to hardware or loss of ...
Page 3
Contents 1 Working on Your Computer....................................................................................................... Before Working Inside Your Computer.............................
Page 4
Removing the Heat Sink Assembly......................................................................................................................... Installing the Heat Sink Assembly.................
Page 5
Working on Your Computer Before Working Inside Your Computer Use the following safety guidelines to help protect your computer from potential damage and to help to ensure your personal safety. Unless ...
Page 6
CAUTION: Before touching anything inside your computer, ground yourself by touching an unpainted metal surface, such as the metal at the back of the computer. While you work, periodically touch an unp...
Page 7
Removing and Installing Components This section provides detailed information on how to remove or install the components from your computer. Recommended Tools The procedures in this document may requi...
Page 8
6. drive cage 7. optical drive 8. power switch 9. input/output (I/O) Panel 1. memory module 2. speaker 3. front bezel 4. system fan Removing the Cover 1. Follow the procedures in Before Working Inside...
Page 9
Installing the Cover 1. Place the cover on the chassis. 2. Press down on the cover till it clicks into place. 3. Follow the procedures in After Working Inside Your Computer. Removing the Front Bezel 1...
Page 10
Installing the Front Bezel 1. Insert the hooks along the bottom edge of the front bezel into the slots on the chassis front. 2. Push the bezel toward the computer to engage the front bezel retention c...
Page 11
4. Pull the release lever away from the expansion card until you release the securing tab from the dent in the card. Then, ease the card up and out of its connector and remove it from the computer.
Page 12
Installing The Expansion Card 1. Insert the expansion card into the connector on the system board and press down to secure it in place. 2. Install the cover 3. Follow the procedures in After Working I...
Page 13
Installing the WLAN Card 1. Place the WLAN card on the connector and press down. 2. Press the latch to secure the WLAN card. 3. Place the antenna puck on the connector and tighten the screws that secu...
Page 14
6. Repeat steps 3 to 5 to remove the second optical drive (if available). Installing the Optical Drive 1. Insert the optical drive into the bracket. 2. Slide the optical drive to insert it into the dr...
Page 15
4. Slide the blue drive-cage handle toward unlock position and lift the hard drive cage from the computer. Installing the Drive Cage 1. Place the drive cage on the edge of the computer to allow access...
Page 16
Removing the Hard Drive 1. Follow the procedures in Before Working Inside Your Computer. 2. Remove the: a) cover b) optical drive c) drive cage 3. Press the retention clips inwards and slide the hard-...
Page 17
4. Install the: a) drive cage b) optical drive c) cover 5. Follow the procedures in After Working Inside Your Computer. Removing the Speaker 1. Follow the procedures in Before Working Inside Your Comp...
Page 18
Memory modules of different sizes can be mixed (for example, 2 GB and 4 GB). But, all populated channels must have identical configurations. Memory modules must be installed beginning with the first s...
Page 19
4. Pry and remove the system fan away from the grommets securing it to the front of the computer. Then, press the grommets inward along the slots and pass through the chassis. Installing the System Fa...
Page 20
Removing the Power Switch 1. Follow the procedures in Before Working Inside Your Computer. 2. Remove the: a) cover b) front bezel c) optical drive d) drive cage 3. Disconnect the power-switch cable fr...
Page 21
3. Install the: a) drive cage b) optical drive c) front bezel d) cover 4. Follow the procedures in After Working Inside Your Computer. Removing the Input/Output (I/O) Panel 1. Follow the procedures in...
Page 22
Installing the Input/Output (I/O) Panel 1. Insert the I/O panel into the slot on the chassis front. 2. Slide the I/O panel to secure it to the chassis. 3. Tighten the screw to secure the I/O panel to ...
Page 23
5. Remove the screws that secure the power supply to the back of the computer. 6. Push in on the blue release tab and slide the power supply towards the front of the computer. 7. Lift the power supply...
Page 24
Installing the Power Supply 1. Place the power supply in the chassis and slide towards the back of the computer to secure it. 2. Tighten the screws securing the power supply to the back of the compute...
Page 25
Installing the Coin-Cell Battery 1. Place the coin-cell battery into its slot on the system board. 2. Press the coin-cell battery downward until the release latch springs back into place and secures i...
Page 26
Installing the Heat Sink Assembly 1. Place the heat-sink assembly into the chassis. 2. Tighten the captive screws to secure the heat-sink assembly to the system board. 3. Connect the fan cable to the ...
Page 27
Installing the Processor 1. Insert the processor into the processor socket. Ensure the processor is properly seated. 2. Gently lower the processor cover. 3. Press the release lever down and then move ...
Page 28
System Board Components The following image displays the system board layout. 1. power connector 11. HDD/ODD power connector 2. processor socket 12. SATA connectors 3. system fan connector 13. interna...
Page 29
4. Remove the screws that secure the system board to the chassis. 5. Turn the hex screw counter clockwise and remove from the system board. 6. Remove the system board from the chassis. Installing the ...
Page 31
System Setup System Setup enables you to manage your computer hardware and specify BIOS‐level options. From the System Setup, you can: Change the NVRAM settings after you add or remove hardware View t...
Page 32
Keys Navigation <Enter> Allows you to select a value in the selected field (if applicable) or follow the link in the field. Spacebar Expands or collapses a drop‐down list, if applicable. <Tab...
Page 33
Table 3. System Configuration Option Description Integrated NIC Allows you to enable or disable the integrated network card. You can set the integrated NIC to: Enable UEFI Network Stack (disable by de...
Page 34
Option Description SMART Reporting This field controls if the hard drive errors for the integrated drives are reported during system startup. This technology is part of the SMART (Self Monitoring Anal...
Page 35
Option Description System Password Min System Password Max Password Bypass Allows you to bypass the System Password and the internal HDD password prompts during a system restart. Disabled - Always pro...
Page 36
Option Description This option is set to Enable by default. Admin Setup Lockout Allows you to enable or disable the option to enter setup when an admin password is Enable Admin Setup Lockout - This op...
Page 37
Option Description Intel Speed Step Allows you to enable or disable the Intel Speed Step mode of the processor. This option is enabled by default. C States Control Allows you to enable or disable the ...
Page 38
Option Description Disabled - The system will not automatically power up. Every Day - The system will power up every day at the time you specified above . Weekdays - The system will power up Monday th...
Page 39
Table 8. POST Behavior Option Description Numlock LED Specifies if the Num Lock function can be enabled when the system boots. This option is enabled by default. Keyboard Errors Specifies whether keyb...
Page 40
Option Description NOTE: This field is only relevant when the Integrated NIC control in the System Configuration group is set to Enabled with Image Server. Server IP Address Specifies the primary stat...
