Dell Precision T1700 Owner's Manual - Small Form Factor
Summary
This document is the official manual for the Dell Precision T1700 Small Form Factor Owner's Manual. The manual provides comprehensive guidance on setup, configuration, and operation. It includes step-by-step setup and installation instructions. Troubleshooting guidance and problem resolution steps are also provided. Technical specifications and compatibility details are included. Safety instructions and regulatory compliance information are covered. Designed for network administrators and IT professionals who need detailed guidance on using and maintaining this desktop computer.
Page 1 Text Content
Dell Precision T1700 Small Form Factor Owner's Manual
Regulatory Model: D07S Regulatory Type: D07S001
Page Summary Contents For Dell Precision T1700 Owner's Manual - Small Form Factor

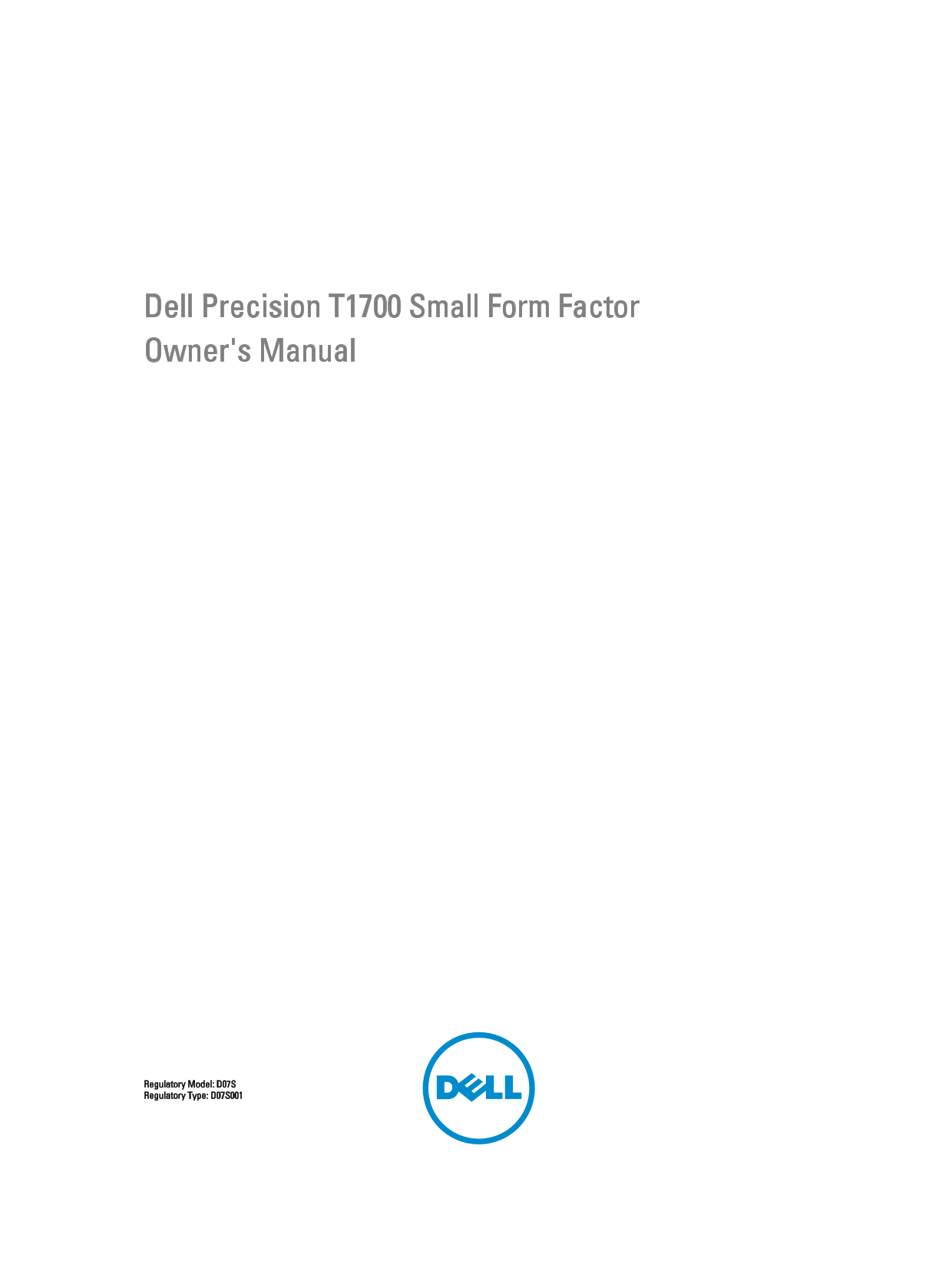

Page 1
Dell Precision T1700 Small Form Factor Owner's Manual Regulatory Model: D07S Regulatory Type: D07S001
Page 2
Notes, Cautions, and Warnings NOTE: A NOTE indicates important information that helps you make better use of your computer. CAUTION: A CAUTION indicates either potential damage to hardware or loss of ...
Page 3
Contents 1 Working on Your Computer....................................................................................................... Before Working Inside Your Computer.............................
Page 4
Removing the Coin-Cell Battery..............................................................................................................................25 Installing the Coin-Cell Battery............
Page 5
Working on Your Computer Before Working Inside Your Computer Use the following safety guidelines to help protect your computer from potential damage and to help to ensure your personal safety. Unless ...
Page 6
CAUTION: Before touching anything inside your computer, ground yourself by touching an unpainted metal surface, such as the metal at the back of the computer. While you work, periodically touch an unp...
Page 7
Removing and Installing Components This section provides detailed information on how to remove or install the components from your computer. Recommended Tools The procedures in this document may requi...
Page 8
6. drive cage 7. optical drive 8. power switch 9. input/output (I/O) Panel 1. memory module 2. speaker 3. front bezel 4. system fan Removing the Cover 1. Follow the procedures in Before Working Inside...
Page 9
3. Lift the cover upward to a 45–degree angle and remove it from the computer. Installing the Cover 1. Place the cover on the chassis. 2. Press down on the cover till it clicks into place. 3. Follow t...
Page 10
3. Pry the front bezel retention clips away from the chassis. Rotate the bezel away from the computer to release the hooks on the opposite edge of the bezel from the chassis and remove it from the com...
Page 11
4. Pull the release lever away from the expansion card until you release the securing tab from the dent in the card. Then, ease the card up and out of its connector and remove it from the computer.
Page 12
Installing The Expansion Card 1. Insert the expansion card into the connector on the system board and press down to secure it in place. 2. Install the cover 3. Follow the procedures in After Working I...
Page 13
Installing the WLAN Card 1. Place the WLAN card on the connector and press down. 2. Press the latch to secure the WLAN card. 3. Place the antenna puck on the connector and tighten the screws that secu...
Page 14
6. Repeat steps 3 to 5 to remove the second optical drive (if available). Installing the Optical Drive 1. Insert the optical drive into the bracket. 2. Slide the optical drive to insert it into the dr...
Page 15
4. Slide the blue drive-cage handle toward unlock position and lift the hard drive cage from the computer. Installing the Drive Cage 1. Place the drive cage on the edge of the computer to allow access...
Page 16
Removing the Hard Drive 1. Follow the procedures in Before Working Inside Your Computer. 2. Remove the: a) cover b) optical drive c) drive cage 3. Press the retention clips inwards and slide the hard-...
Page 17
4. Install the: a) drive cage b) optical drive c) cover 5. Follow the procedures in After Working Inside Your Computer. Removing the Speaker 1. Follow the procedures in Before Working Inside Your Comp...
Page 18
Removing the Intrusion Switch 1. Follow the procedures in Before Working Inside Your Computer. 2. Remove the cover. 3. Press the clip inwards to release and gently pull the intrusion cable from system...
Page 19
If memory modules with different speeds are installed, they operate at the speed of the slowest installed memory modules. Removing the Memory 1. Follow the procedures in Before Working Inside Your Com...
Page 20
4. Pry and remove the system fan away from the grommets securing it to the front of the computer. Then, press the grommets inward along the slots and pass through the chassis. Installing the System Fa...
Page 21
Removing the Power Switch 1. Follow the procedures in Before Working Inside Your Computer. 2. Remove the: a) cover b) front bezel c) optical drive d) drive cage 3. Disconnect the power-switch cable fr...
Page 22
3. Install the: a) drive cage b) optical drive c) front bezel d) cover 4. Follow the procedures in After Working Inside Your Computer. Removing the Input/Output (I/O) Panel 1. Follow the procedures in...
Page 23
Installing the Input/Output (I/O) Panel 1. Insert the I/O panel into the slot on the chassis front. 2. Slide the I/O panel to secure it to the chassis. 3. Tighten the screw to secure the I/O panel to ...
Page 24
5. Remove the screws that secure the power supply to the back of the computer. 6. Push in on the blue release tab beside the power supply, and slide the power supply towards the front of the computer....
Page 25
Installing the Power Supply 1. Place the power supply in the chassis and slide towards the back of the computer to secure it. 2. Tighten the screws securing the power supply to the back of the compute...
Page 26
Installing the Coin-Cell Battery 1. Place the coin-cell battery into its slot on the system board. 2. Press the coin-cell battery downward until the release latch springs back into place and secures i...
Page 27
Installing the Heat Sink Assembly 1. Place the heat-sink assembly into the chassis. 2. Tighten the captive screws to secure the heat-sink assembly to the system board. 3. Connect the fan cable to the ...
Page 28
Installing the Processor 1. Insert the processor into the processor socket. Ensure the processor is properly seated. 2. Gently lower the processor cover. 3. Press the release lever down and then move ...
Page 29
Removing the System Board 1. Follow the procedures in Before Working Inside Your Computer. 2. Remove the: a) cover b) front bezel c) optical drive d) drive cage e) memory f) heat sink assembly g) expa...
Page 30
g) front bezel h) cover 5. Follow the procedures in After Working Inside Your Computer.
Page 31
System Setup System Setup enables you to manage your computer hardware and specify BIOS‐level options. From the System Setup, you can: Change the NVRAM settings after you add or remove hardware View t...
Page 32
Keys Navigation <Enter> Allows you to select a value in the selected field (if applicable) or follow the link in the field. Spacebar Expands or collapses a drop‐down list, if applicable. <Tab...
Page 33
Table 3. System Configuration Option Description Integrated NIC Allows you to enable or disable the integrated network card. You can set the integrated NIC to: Disabled Enabled Enabled w/PXE (this opt...
Page 34
Option Description USB Configuration This field configures the integrated USB controller. If Boot Support is enabled, the system is allowed to boot any type of USB mass storage devices (HDD, memory ke...
Page 35
Option Description Disabled - Always prompt for the system and internal HDD password when they are set. This option is disabled by default. Reboot Bypass - Bypass the password prompts on restarts (war...
Page 36
Option Description Enable Admin Setup Lockout - This option is not set by default. Table 5. Secure Boot Secure Boot Enable Allows you to enable or disable Secure Boot feature Disable Enable NOTE: For ...
Page 37
Option Description Limit CPUID Value This field limits the maximum value the processor Standard CPUID Function will support Enable CPUID Limit (this option is disabled by default) NOTE: Some Operating...
Page 38
Option Description NOTE: This feature does not work if you turn off your computer using the switch on a power strip or surge protector or if Auto Power is set to disabled. Deep Sleep Control Allows yo...
Page 39
Option Description Enable MEBx Hotkey — This option is enabled by default Table 9. Virtualization Support Option Description Virtualization This option specifies whether a Virtual Machine Monitor (VMM...
Page 40
Option Description NOTE: This field is only relevant when the Integrated NIC control in the System Configuration group is set to Enabled with Image Server. Client Address Method Specifies how the clie...
Manual Details
| Brand | Dell |
|---|---|
| Pages | 59 |
| File Size | 5.07 MB |
| Published | June 28, 2026 |
5 views
Enter the captcha to get the download link:
Frequently Asked Questions
What are the dimensions of the Dell Precision T1700 Small Form Factor?
Height: 290.00 mm (11.42 inches); Width: 92.60 mm (3.65 inches); Depth: 312.00 mm (12.28 inches); Weight: 5.30 kg (11.68 lb).
What is the maximum weight supported by the computer?
The computer's weight is based on a typical configuration and may vary with different configurations.
What is the operating temperature range for the Precision T1700?
5 °C to 35 °C (41 °F to 95 °F).
What are the vibration and shock specifications for storage?
Storage vibration is 2.20 GRMS and storage shock is 105 G.
