Dell Inspiron One 2320 Set Up Your TV Tuner

Summary

Dell TV Tuner Card Setup Guide (2011) covering supported TV signals (Analog, DMB-TH, ATSC, Clear QAM, DVB-T, ISDB-T), B-CAS card insertion (Japan), TV cable connection, remote control battery installation, Windows Media Center TV configuration, and set-top box IR-transmitter setup.

📄 Preview ‹ PAGE OF 10 ›

‹

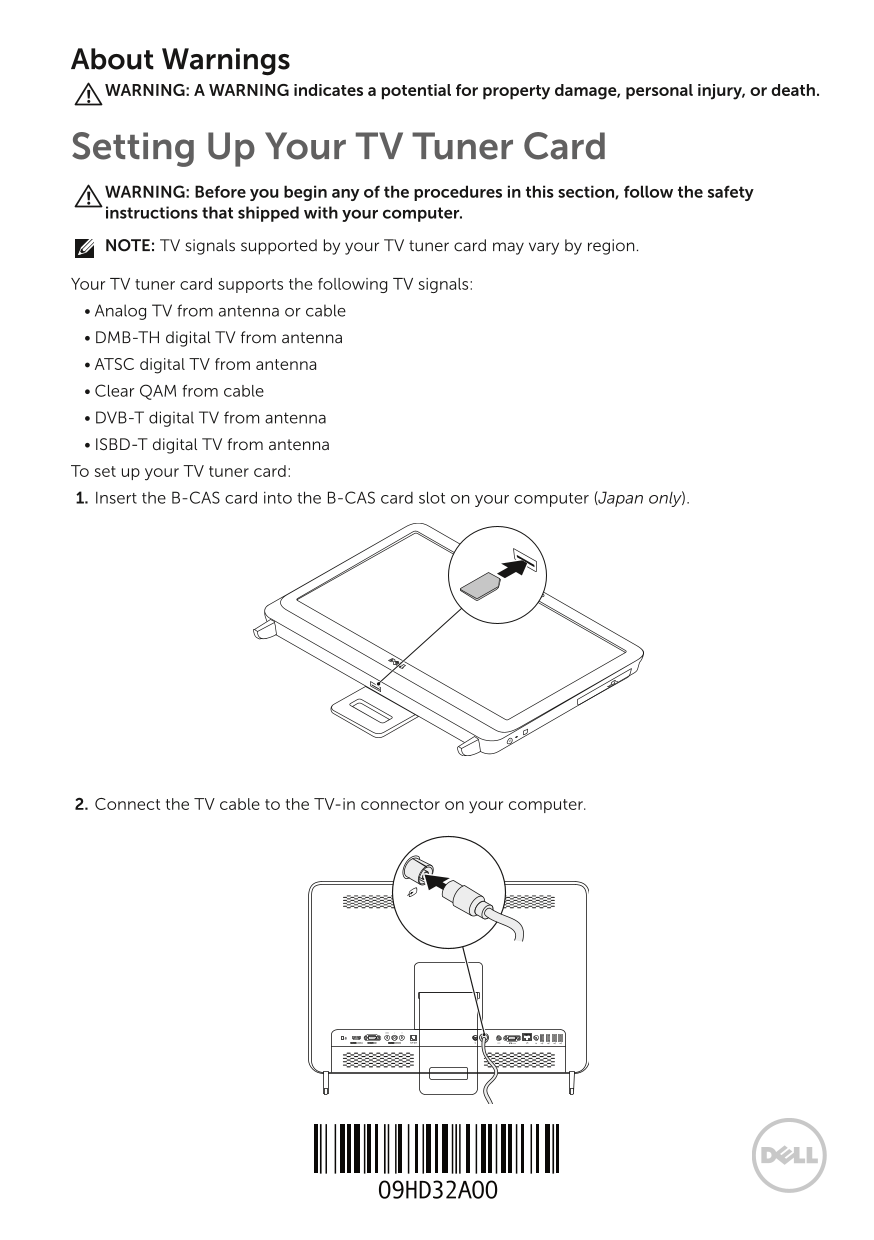

Dell Inspiron One 2320 Set Up Your TV Tuner - Page 1

›

Page 1 Text Content

About Warnings WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Setting Up Your TV Tuner Card WARNING: Before you begin any of the procedures in this section, follow the safety instructions that shipped with your computer. NOTE: TV signals supported by your TV tuner card may vary by region. Your TV tuner card supports the following TV signals: • Analog TV from antenna or cable • DMB-TH digital TV from antenna • ATSC digital TV from antenna • Clear QAM from cable • DVB-T digital TV from antenna • ISBD-T digital TV from antenna To set up your TV tuner card: 1. Insert the B-CAS card into the B-CAS card slot on your computer (Japan only).

2. Connect the TV cable to the TV-in connector on your computer.

Page Summary Contents For Dell Inspiron One 2320 Set Up Your TV Tuner

Page 1 About Warnings WARNING: A WARNING indicates a potential for property damage, personal injury, or death. Setting Up Your TV Tuner Card WARNING: Before you begin any of the procedures in this section, f...

Page 2 3. Install the remote control batteries. For more information, see the documentation that shipped with your remote control. 4. Turn on your computer. 5. Click Start→ All Programs→ Windows Media Center...

Page 3 安装电视调谐卡警告：在开始本节以下任何步骤前，首先遵从计算机随附的安全说明。注：您的电视调谐卡所支持的电视信号因地区而异。您的电视调谐卡支持以下电视信号： • 来自天线或有线电视信号线的模拟电视信号 • 来自天线的 DMB-TH 数字电视信号 • 来自天线的 ATSC 数字电视信号 • 来自有线信号线的 Clear QAM 信号 • 来自天线的 DVB-T 数字电视信号 • 来自天线的 IS...

Page 4 3. 将电池装入遥控器。有关详细信息，请参阅遥控器随附的说明文件。 4. 开启计算机。 5. 单击开始→ 所有程序→ Windows 媒体中心→ 任务→ 设置→ TV。 6. 遵循屏幕上的说明进行操作。用电视调谐卡与机顶盒（可选）设置计算机注：射频（RF）电缆需另购。 1. 用射频电缆连接机顶盒与计算机。 2. 找到机顶盒上的红外传感器。 3. 揭下红外发射器上的保护膜。 4. 将红外发射...

Page 5 設定您的 TV 調諧器警告：在您開始執行本章節的任何程序之前，請遵循您電腦所附的安全說明。註：您的 TV 調諧器支援的 TV 訊號可能依區域而有所不同。您的 TV 調諧器支援下列電視訊號： • 由天線或連接線的類比電視 • 由天線的 DMB-TH 數位電視 • 由天線的 ATSC 數位電視 • 由纜線的清晰 QAM • 由天線的 DVB-T 數位電視 • 由天線的 ISBD-T 數位電視設...

Page 6 3. 安裝遙控器電池。若需更多資訊，請參閱隨附於遙控器的說明文件。 4. 開啟電腦的電源。 5. 按一下開始→ 所有程式→ Windows Media Center → 工作→ 設定→ 電視。 6. 依螢幕指示操作。使用 TV 調諧器與機上盒 (選配) 設定您的電腦註：廣播頻率 (RF) 纜線必須分別購買。 1. 使用 RF 纜線連接機上盒至您的電腦。 2. 找到您機上盒的 IR 感應器。 3...

Page 7 TV チューナーカードのセットアップ警告：本項の手順を開始する前に、お使いのコンピュータに同梱の安全にお使いいただくための注意に従ってください。メモ：お使いの TV チューナーカードでサポートされる TV 信号は、地域によって異なる場合があります。お使いの TV チューナーカードは、次の TV 信号をサポートします。 • アンテナまたはケーブルによるアナログ TV • アンテナによる DM...

Page 8 3. リモコンにバッテリを入れます。詳細に関しては、リモコンに同梱のマニュアルを参照してください。 4. コンピュータの電源を入れます。 5. Start（スタート）→ All Programs（すべてのプログラム）→ Windows Media Center（Windows メディアセンター）→ Tasks（タスク）→ Settings（設定）→ TV とクリックします。 6. 画面に表示される...

Page 9 TV 튜너 카드 설치 경고: 이 항목의 절차를 시작하기 전에, 컴퓨터와 함께 제공된 안전 정보를 읽으십시오. 주: TV 튜너 카드로 지원되는 TV 시그널은 지역에 따라 다릅니다. TV 튜너 카드는 다음의 TV 시그널을 지원합니다: • 안테나 또는 케이블에서 아날로그 TV • 안테나에서 DMB-TH 디지털 TV • 안테나에서 ATSC 디지털 TV • 케이블에...

Page 10 3. 리모콘 배터리를 설치합니다. 자세한 정보는 리모콘과 함께 제공된 문서를 참조하십시오. 4. 컴퓨터를 켜십시오. 5. 시작→ 모든 프로그램→ Windows Media Center→ 작업→ 설정→ TV를 클릭합니다. 6. 화면의 지시사항을 따르십시오. TV 튜너 카드 및 셋톱 박스를 사용하여 컴퓨터 설치 (선택사양) 주: 무선 주파수 (RF) 케이블은 개...

Manual Details

Brand	Dell
Pages	10
File Size	1015.88 KB
Published	July 03, 2026

6 views

Enter the captcha to get the download link:

Frequently Asked Questions

What types of TV signals does this tuner card support?

It supports Analog TV, DMB-TH, ATSC, Clear QAM, DVB-T, and ISBD-T from sources like antennas or cable.

How do I perform the basic setup for the TV tuner card?

Insert the B-CAS card (if required), connect the TV cable, install remote batteries, turn on your computer, and follow instructions via Start > Windows Media Center settings.

Do I need special cables to use a set-top box with this tuner card?

Yes; an RF cable must be purchased separately. You must also position the IR transmitter over the set-top box's IR sensor.

Where can I find detailed instructions for troubleshooting the TV tuner card?

For more information on configuration and trouble shooting, please see the User’s Guide at support.dell.com/manuals.
