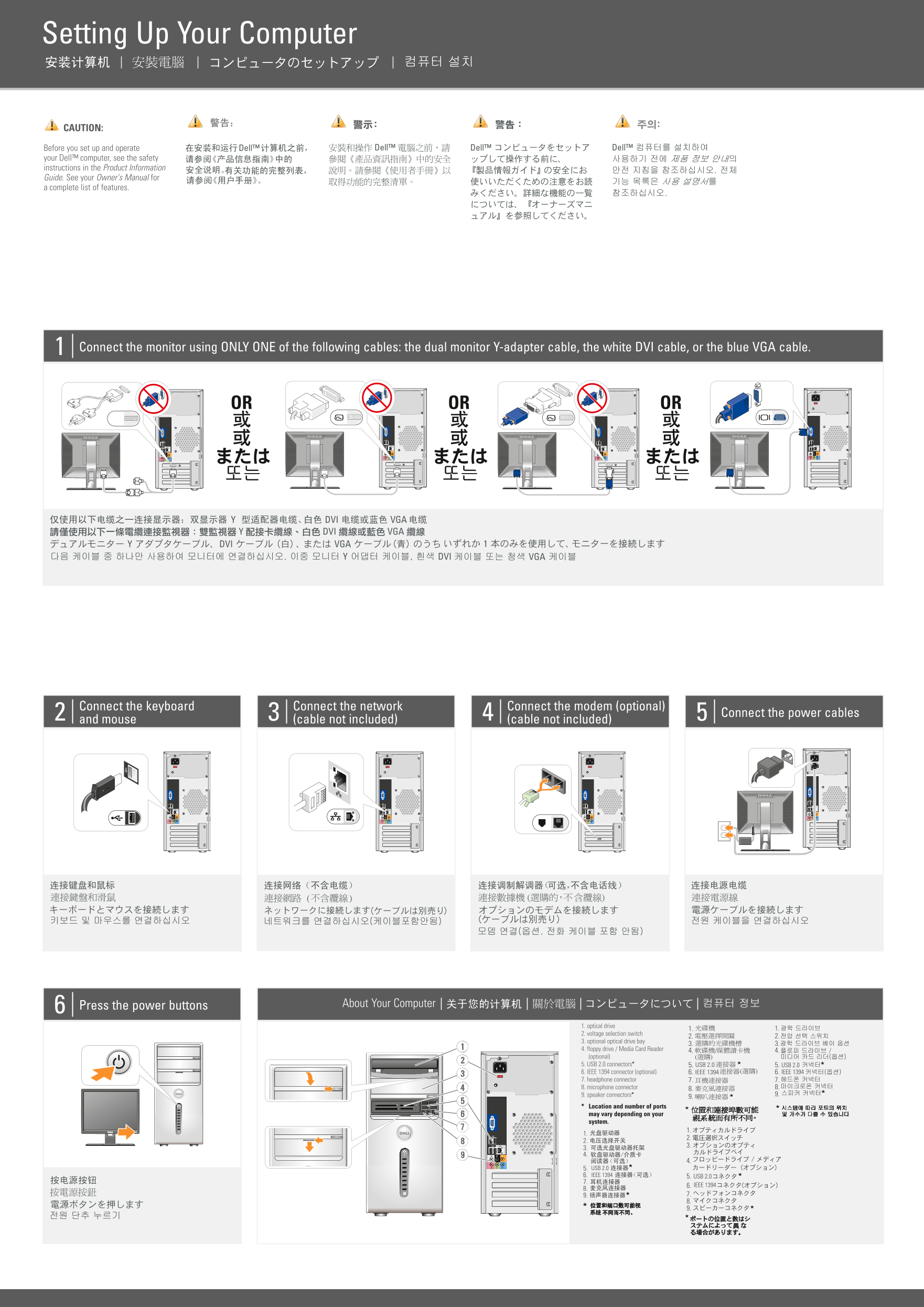

Setting Up Your Computer
CAUTION: Before you set up and operate your Dell™ computer, see the safety instructions in the Product Information Guide. See your Owner's Manual for complete list of features.
Connect the monitor using ONLY ONE of the following cables: the dual monitor Y-adapter cable, the white DVI cable, or the blue VGA cable.
OR OR OR
Connect the keyboard Connect the network Connect the modem (optional)
Connect the power cables
and mouse (cable not included) (cable not included)
Press the power buttons About Your Computer
1. optical drive
2. voltage selection switch
3. optional optical drive bay
4. floppy drive / Media Card Reader 4. 4. (optional) 5. USB 2.0 connectors* 5. USB 2.0 5. USB 2.0 6. IEEE 1394 connector (optional) 6. IEEE 1394 6. IEEE 1394 7. headphone connector 7. 7.
8. microphone connector 8. 8. 9. speaker connectors* 9.
Location and number of ports may vary depending on your system.
5. USB 2.0 6. IEEE 1394 5. USB 2.0 7.
6. IEEE 1394
