Dell Inspiron 5150 Installation Guide
Summary
Setup guide for an early-2000s Dell laptop computer dated May 2003, illustrating port and connector identification including S-video TV-out, AC adapter, USB, IEEE 1394 FireWire, network, PC Card slot, hard drive bay, audio connectors, and modem. Provides battery removal procedure using the slide latch mechanism and references the Dell Tell Me How help file accessible through Windows Help and Support for device setup and operating system usage instructions.
Page 1 Text Content

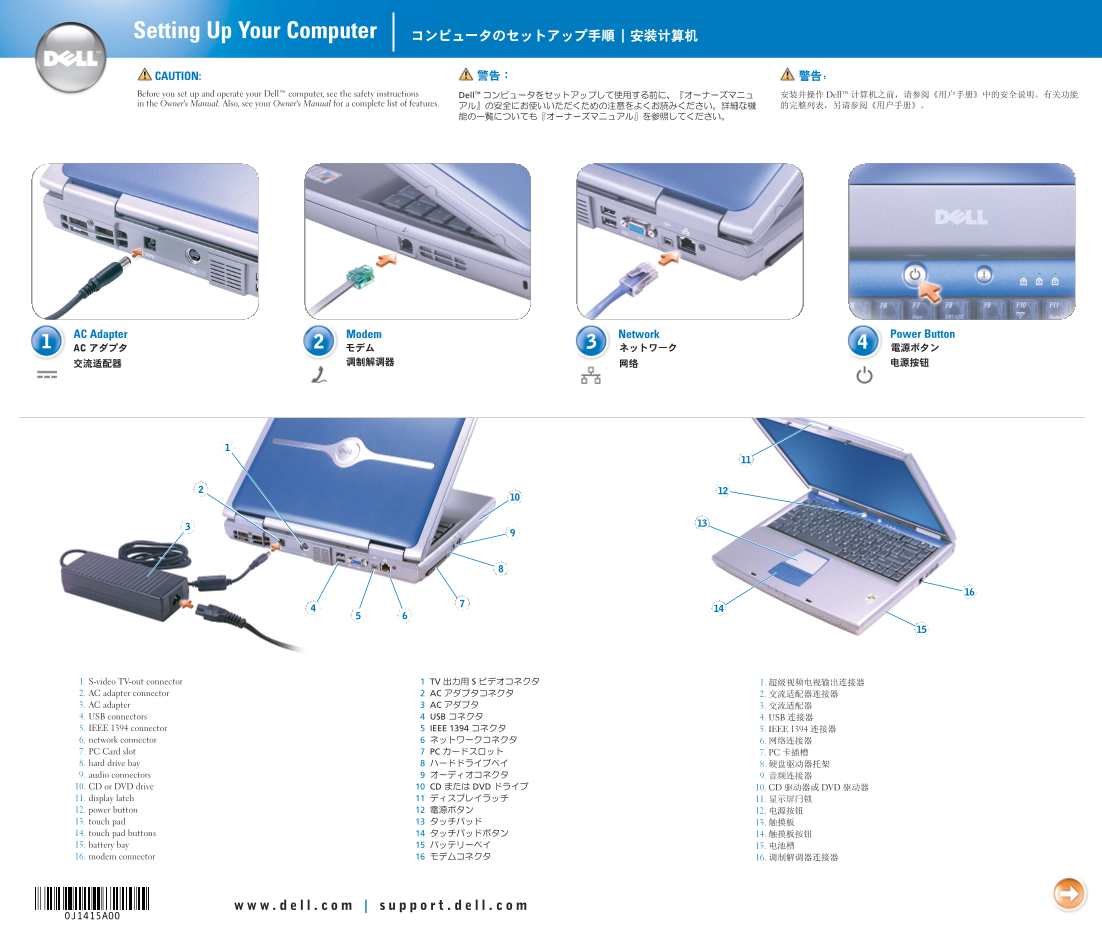

Setting Up Your Computer CAUTION: Before you set up and operate your Dell™ computer, see the safety instructions in the Owner's Manual. Also, see your Owner's Manual for a complete list of features.
Power Button Network Modem AC Adapter
1. S-video TV-out connector 2. AC adapter connector 3. AC adapter 4. USB connectors 5. IEEE 1394 connector 6. network connector 7. PC Card slot 8. hard drive bay 9. audio connectors 10. CD or DVD drive 11. display latch 12. power button 13. touch pad 14. touch pad buttons 15. battery bay 16. modem connector
Page Summary Contents For Dell Inspiron 5150 Installation Guide
Manual Details
| Brand | Dell |
|---|---|
| Pages | 2 |
| File Size | 1.29 MB |
| Published | June 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What should I review before setting up and operating the Dell computer?
You must first check the safety instructions provided in your Owner's Manual.
How do I remove the battery from the computer?
To remove it, slide and hold the latch, then pull the battery out of the bay.
Where can users find help with system guides or operating procedures?
Access the Dell Tell Me How file by clicking the Start button, selecting Help and Support, navigating to User’s guides, and finally choosing Tell Me How.
