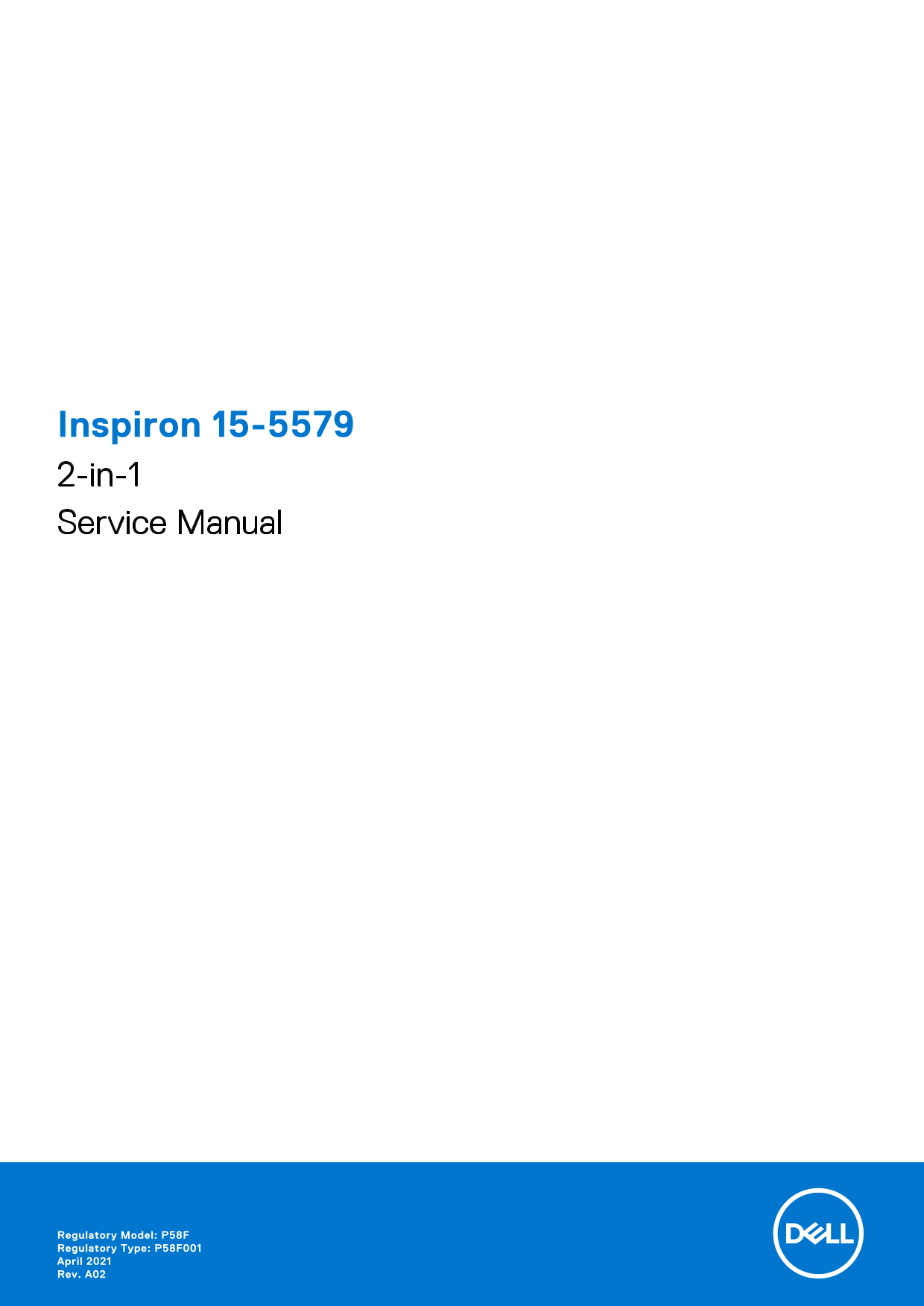

Inspiron 15-5579 2-in-1 Service Manual
Regulatory Model: P58F Regulatory Type: P58F001 April 2021 Rev. A02
Page Summary Contents For Dell Inspiron 15-5579 2-in-1 Service Manual, Translated Title: Dell Vostro 3660 3669 Owner's Manual and Dell Inspiron 15-5579 2-in-1 Service Manual
Page 1
Inspiron 15-5579 2-in-1 Service Manual Regulatory Model: P58F Regulatory Type: P58F001 April 2021 Rev. A02
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents Chapter 1: Before working inside your computer........................................................................... Before you begin .......................................................
Page 4
Procedure............................................................................................................................................................................ Post-requisites......
Page 5
Procedure............................................................................................................................................................................42 Post-requisites....
Page 6
Chapter 36: Replacing the palm-rest and keyboard assembly...................................................... Procedure..................................................................................
Page 7
Intel USB 3.0 x HCI.............................................................................................................................................................77 Downloading the Wi-Fi...
Page 8
Before working inside your computer NOTE: The images in this document may differ from your computer depending on the configuration you ordered. Before you begin 1. Save and close all open files and ex...
Page 9
Recommended tools The procedures in this document may require the following tools: Philips screwdriver #1 Plastic scribe Screw list Table 1. Screw list Component Secured to Screw type Quantity Screw i...
Page 10
Table 1. Screw list (continued) Component Secured to Screw type Quantity Screw image Touchpad bracket Palm rest and keyboard assembly M2x2.5 Wireless card Palm rest and keyboard assembly M2x3 Before w...
Page 11
After working inside your computer CAUTION: Leaving stray or loose screws inside your computer may severely damage your computer. 1. Replace all screws and ensure that no stray screws remain inside yo...
Page 12
Removing the base cover NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After workin...
Page 13
Figure 2. Removing the base cover a. plastic scribe b. palm rest and keyboard assembly c. base cover 4. Disconnect the battery cable from the system board. NOTE: Disconnect the battery cable only when...
Page 14
Replacing the base cover NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After worki...
Page 15
Removing the battery NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After working i...
Page 16
Replacing the battery NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After working ...
Page 17
Removing the memory modules NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wo...
Page 18
Figure 6. Removing the memory modules a. memory-module slot b. securing clips (2) c. memory module Removing the memory modules
Page 19
Replacing the memory modules NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After w...
Page 20
Post-requisites Replace the base cover. Replacing the memory modules
Page 21
Removing the hard drive or the solid-state drive NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside yo...
Page 22
7. pull tab 4. Remove the three screws (M2x3) that secure the hard-drive assembly to the palm rest and keyboard assembly. 5. Lift the hard-drive assembly along with its cable off the palm rest and key...
Page 23
8. Lift the hard drive off the hard-drive bracket. Figure 11. Removing the hard-drive bracket a. hard drive b. hard-drive bracket c. screws (4) NOTE: The following step applies if the storage device i...
Page 24
Figure 13. Removing the interposer i. screws (2) ii. interposer Removing the hard drive or the solid-state drive
Page 25
Replacing the hard drive or the solid-state drive NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside y...
Page 26
Removing the coin-cell battery NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After...
Page 27
Replacing the coin-cell battery NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. Afte...
Page 28
Removing the wireless card NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wor...
Page 29
Replacing the wireless card NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wo...
Page 30
Figure 16. Replacing the wireless card 1. tab 2. notch 3. wireless card 4. wireless-card slot 5. antenna cables (2) 6. screw 7. wireless-card bracket Post-requisites Replace the base cover. Replacing ...
Page 31
Removing the status-light board NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. Afte...
Page 32
Replacing the status-light board NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. Aft...
Page 33
Removing the touchpad NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After working ...
Page 34
Figure 19. Removing the touchpad a. screws (4) b. palm rest and keyboard assembly c. touchpad Removing the touchpad
Page 35
Replacing the touchpad NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After working...
Page 36
Removing the speakers NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After working ...
Page 37
5. speaker cable 6. palm rest and keyboard assembly 7. tape 6. Release the tabs on the speakers from the slots on the palm rest and keyboard assembly and lift the speakers along with the cable off the...
Page 38
Replacing the speakers NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After working...
Page 39
Removing the fan NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After working insid...
Page 40
Replacing the fan NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After working insi...
