Dell Inspiron 15 5000 Series 2-in-1 Setup Guide and Specifications
Summary
This manual provides setup and specifications for the Inspiron 15 5000 Series 2-in-1 laptop (Model Inspiron 15-5568). It covers computer setup instructions, front/left/right/base/display views, operating modes (notebook, tablet, stand, tent), system specifications, keyboard shortcuts, and regulatory information. The target audience includes end users and consumers purchasing this convertible laptop.
Page 1 Text Content
Inspiron 15 5000 Series 2-in-1 Setup and Specifications
Computer Model: Inspiron 15-5568 Regulatory Model: P58F Regulatory Type: P58F001
Page Summary Contents For Dell Inspiron 15 5000 Series 2-in-1 Setup Guide and Specifications

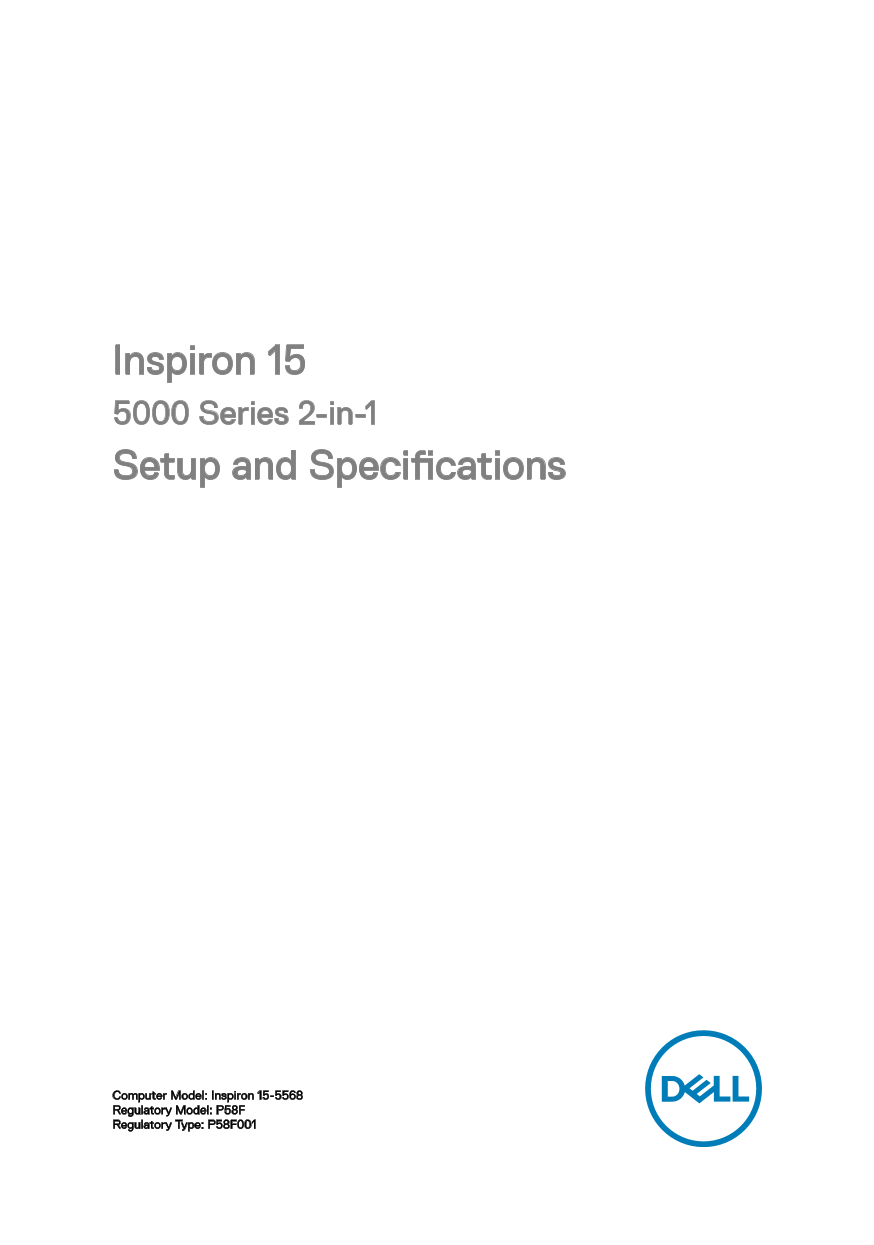

Page 1
Inspiron 15 5000 Series 2-in-1 Setup and Specifications Computer Model: Inspiron 15-5568 Regulatory Model: P58F Regulatory Type: P58F001
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your computer. CAUTION: A CAUTION indicates either potential damage to hardware or loss of ...
Page 3
Contents Set up your computer.................................................... Views.............................................................................8 Front................................
Page 4
Specifications...............................................................14 Dimensions and weight............................................................................ System information.......
Page 5
Set up your computer 1 Connect the power adapter and press the power button.
Page 6
2 Finish operating system setup. For Windows a) Enable security and Dell updates. b) Connect to a wireless network. c) Sign-in to your Microsoft account or create a new account. For Ubuntu: Follow the...
Page 7
3 Explore Dell resources on your desktop. Register your computer Dell Help & Support Support Assist — Check and update your computer
Page 8
Views Power and battery-status light/hard-drive activity light Indicates the battery-charge status or the hard-drive activity. NOTE: Press Fn+H to toggle this light between power and battery- status l...
Page 9
Power-adapter port Connect a power adapter to provide power to your computer and charge the battery. HDMI port Connect a TV or another HDMI-in enabled device. Provides video and audio output. USB 3.0 ...
Page 10
NOTE: You can customize the power-button behavior in Power Options. For more information, see Me and My Dell at www.dell.com/ support/manuals. Volume-control buttons Press to increase or decrease the ...
Page 11
Right-click area Press to right-click. Display Left microphone Provides digital sound input for audio recording, voice calls, and so on. Infrared emitter (optional) Emits infrared light, which allows ...
Page 12
Provides digital sound input for audio recording, voice calls, and so on. Service tag location The service tag is a unique alphanumeric identifier that allows Dell service technicians to identify the ...
Page 13
Stand
Page 14
Specifications Dimensions and weight Height 20.20 mm (0.80 in) Width 380.90 mm (15 in) Depth 253.10 mm (9.96 in) Weight (maximum) 2.09 kg (4.61 lb) NOTE: The weight of your laptop varies depending on ...
Page 15
Ports and connectors External: USB One USB 3.0 port with Power Share One USB 3.0 port One USB 2.0 port Audio/Video One HDMI port One headset (headphone and microphone combo) port Internal: M.2 Slot On...
Page 16
Audio Controller Realtek ALC3253 with Waves Maxx Audio Pro Speakers Two Output Average – 2 W Peak – 2.5 W Microphone Digital-array microphones in camera assembly Volume controls Media-control shortcut...
Page 17
Viewing angle 160 degrees Controls Brightness can be controlled using shortcut keys Height 193.59 mm (7..62 in) Width 344.16 mm (13.55 in) Diagonal 396.24 mm (15.60 in) Keyboard Type Backlit keyboard ...
Page 18
Touch pad Resolution Horizontal: 1260 Vertical: 960 Dimensions Height: 80 mm (3.15 in) Width: 105 mm (4.13 in) Battery Type 3-cell 42 WHr smart lithium ion Dimension: Width 97.15 mm (3.82 in) Dimensio...
Page 19
Input current (maximum) 1.30 A/1.60 A/1.70 A Output current (continuous) 2.31 A/3.34 A Rated output voltage 19.50 VDC Temperature range: Operating 0°C to 40°C (32°F to 104°F) Temperature range: Storag...
Page 20
Keyboard shortcuts Icons Description Mute audio Decrease volume Increase volume Play previous track/chapter Play/Pause Play next track/chapter Switch to external display Search Toggle keyboard backlig...
Page 21
Icons Description Sleep System request Open application menu Toggle between power and battery- status light/hard-drive activity light Page up Page down
Page 22
Getting help and contacting Dell Self-help resources You can get information and help on Dell products and services using these self-help resources: Information about Dell products and www.dell.com se...
Page 23
NOTE: If you do not have an active internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.
Manual Details
| Brand | Dell |
|---|---|
| Pages | 23 |
| File Size | 1.44 MB |
| Published | June 24, 2026 |
4 views
Enter the captcha to get the download link:
Frequently Asked Questions
What are the installation steps for this device?
Connect the power adapter, press the power button, finish OS setup, and register on Dell's website.
How do I toggle the status lights on the front panel?
Press the Fn+H key combination to switch between the power/battery light and the hard-drive activity light.
What are the maximum operating altitude and vibration limits?
The maximum altitude is 3048 m (10,000 ft) with a random vibration spectrum.
Where can I find troubleshooting information and drivers?
Visit www.dell.com/support for manuals, drivers, software updates, and technical help.
