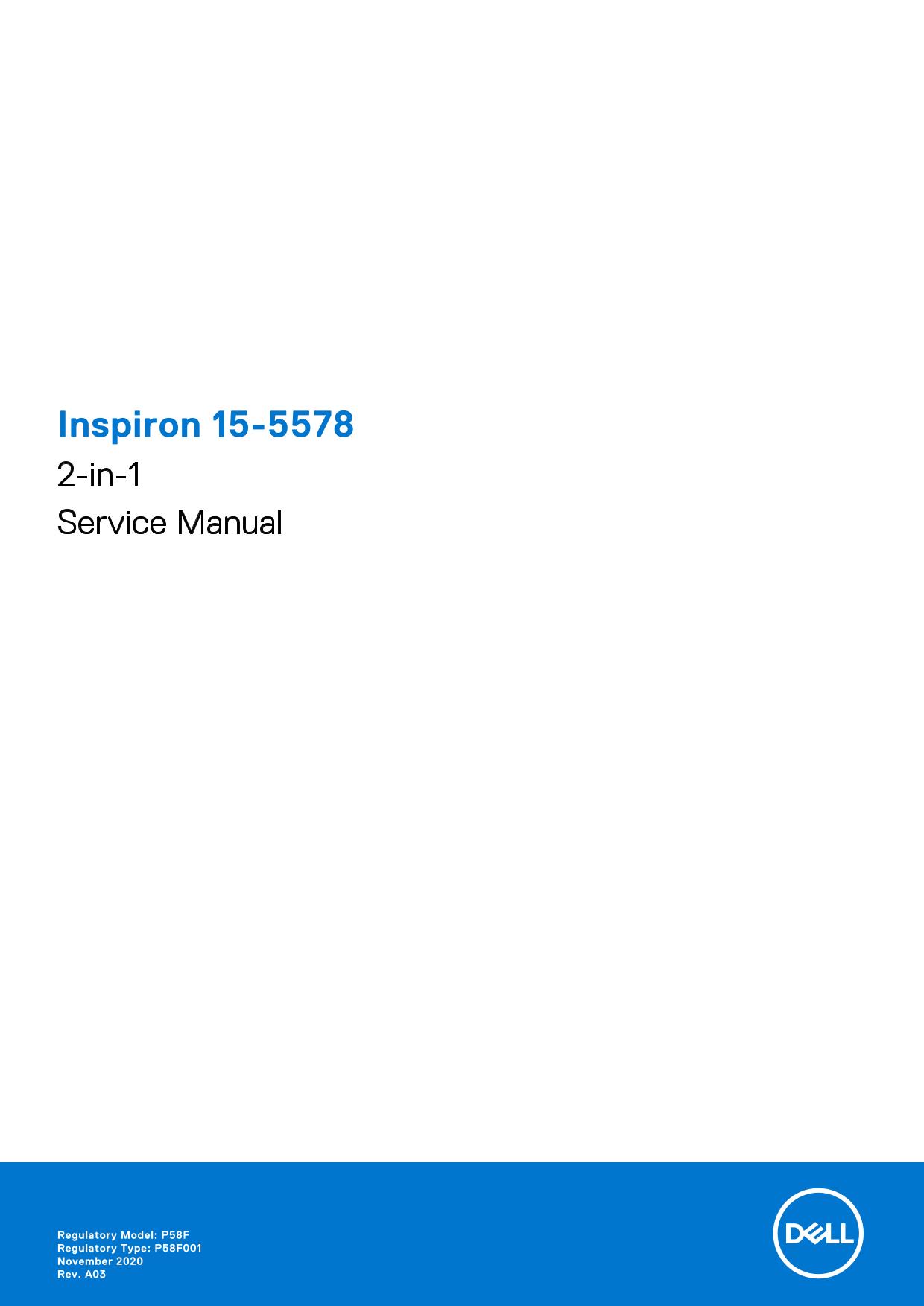

Inspiron 15-5578 2-in-1 Service Manual
Regulatory Model: P58F Regulatory Type: P58F001 November 2020 Rev. A03
Page Summary Contents For Dell Inspiron 15-5578 2-in-1 Service Manual
Page 1
Inspiron 15-5578 2-in-1 Service Manual Regulatory Model: P58F Regulatory Type: P58F001 November 2020 Rev. A03
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents Chapter 1: Before working inside your computer........................................................................... Before you begin .......................................................
Page 4
Procedure............................................................................................................................................................................26 Post-requisites....
Page 5
Procedure............................................................................................................................................................................44 Post-requisites....
Page 6
Chapter 36: Replacing the display assembly................................................................................ Procedure.......................................................................
Page 7
Chapter 48: Replacing the sensor board...................................................................................... Procedure.....................................................................
Page 8
Before working inside your computer NOTE: The images in this document may differ from your computer depending on the configuration you ordered. Before you begin 1. Save and close all open files and ex...
Page 9
CAUTION: Press and eject any installed card from the media-card reader. NOTE: The color of your computer and certain components may appear differently than shown in this document. Recommended tools Th...
Page 10
Table 1. Screw list (continued) Component Secured to Screw type Quantity Screw image Touchpad bracket Palm rest and keyboard assembly M2x2.5 Wireless card Palm rest and keyboard assembly M2x3 Before w...
Page 11
After working inside your computer CAUTION: Leaving stray or loose screws inside your computer may severely damage your computer. 1. Replace all screws and ensure that no stray screws remain inside yo...
Page 12
Removing the base cover NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After workin...
Page 13
Figure 2. Removing the base cover a. plastic scribe b. palm rest and keyboard assembly c. base cover 4. Disconnect the battery cable from the system board. NOTE: Disconnect the battery cable only when...
Page 14
Replacing the base cover NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After worki...
Page 15
Removing the battery NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After working i...
Page 16
Replacing the battery NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After working ...
Page 17
Removing the memory modules NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wo...
Page 18
Figure 6. Removing the memory modules a. memory-module slot b. securing clips (2) c. memory module Removing the memory modules
Page 19
Replacing the memory modules NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After w...
Page 20
Post-requisites Replace the base cover. Replacing the memory modules
Page 21
Removing the hard drive NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After workin...
Page 22
4. Remove the three screws (M2x3) that secure the hard-drive assembly to the palm rest and keyboard assembly. 5. Lift the hard-drive assembly along with its cable off the palm rest and keyboard assemb...
Page 23
Figure 11. Removing the hard-drive bracket a. hard drive b. hard-drive bracket c. screws (4) Removing the hard drive
Page 24
Replacing the hard drive NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After worki...
Page 25
Removing the coin-cell battery NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After...
Page 26
Replacing the coin-cell battery NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. Afte...
Page 27
Removing the wireless card NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wor...
Page 28
Replacing the wireless card NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wo...
Page 29
Figure 14. Replacing the wireless card 1. tab 2. notch 3. wireless card 4. wireless-card slot 5. antenna cables (2) 6. screw 7. wireless-card bracket Post-requisites Replace the base cover. Replacing ...
Page 30
Removing the keyboard daughter-board NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer....
Page 31
7. keyboard daughter-board 8. palm rest and keyboard assembly Removing the keyboard daughter-board
Page 32
Replacing the keyboard daughter-board NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer...
Page 33
Removing the status-light board NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. Afte...
Page 34
Figure 17. Removing the status-light board 1. status-light board cable 2. palm rest and keyboard assembly 3. status-light board 4. foam Removing the status-light board
Page 35
Replacing the status-light board NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. Aft...
Page 36
Removing the touchpad NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After working ...
Page 37
Figure 19. Removing the touch-pad cable from the touch pad 1. touch-pad cable 2. latches (2) 3. tape 4. touch pad 5. Remove the screws that secure the touch-pad bracket to the palm rest and keyboard a...
Page 38
Figure 21. Removing the touch pad a. screws (4) b. touch pad c. palm rest and keyboard assembly Removing the touchpad
Page 39
Replacing the touchpad NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After working...
Page 40
Removing the speakers NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After working ...
