Dell Inspiron 7506 2-in-1 Black Service Manual
Summary
The Dell Inspiron 7506 2-in-1 Service Manual with regulatory model P97F provides detailed repair instructions for this convertible laptop. It covers electrostatic discharge (ESD) protection, ESD field service kit requirements, and component transport guidelines. Step-by-step removal and installation instructions cover the battery, display assembly, system board, storage, memory, and wireless modules. Technicians servicing the Inspiron 7506 convertible can reference this guide for safe and correc
Page 1 Text Content

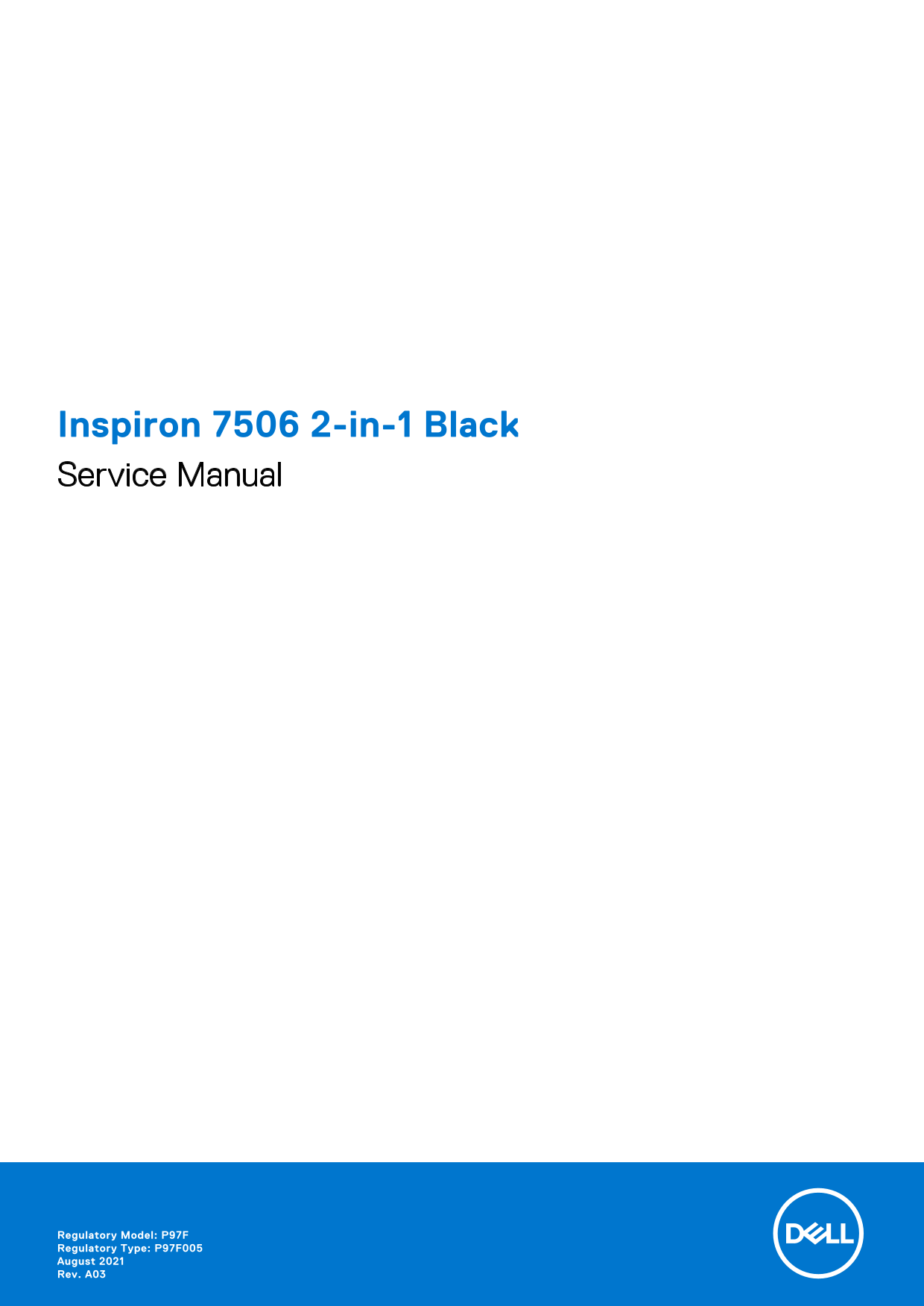

Inspiron 7506 2-in-1 Black Service Manual
Regulatory Model: P97F Regulatory Type: P97F005 August 2021 Rev. A03
Page Summary Contents For Dell Inspiron 7506 2-in-1 Black Service Manual
Page 1
Inspiron 7506 2-in-1 Black Service Manual Regulatory Model: P97F Regulatory Type: P97F005 August 2021 Rev. A03
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents Chapter 1: Working inside your computer...................................................................................... Before working inside your computer.................................
Page 4
Fan........................................................................................................................................................................................ Removing the...
Page 5
Chapter 6: Getting help and contacting Dell................................................................................ Contents
Page 6
Working inside your computer Before working inside your computer About this task NOTE: The images in this document may differ from your computer depending on the configuration you ordered. Steps 1. Sa...
Page 7
CAUTION: When you disconnect a cable, pull it by its connector or its pull tab, not the cable itself. Some cables have connectors with locking tabs or thumbscrews that you must disengage before discon...
Page 8
Wrist Strap and Bonding Wire – The wrist strap and bonding wire can be either directly connected between your wrist and bare metal on the hardware if the ESD mat is not required, or connected to the a...
Page 9
Removing and installing components NOTE: The images in this document may differ from your computer depending on the configuration you ordered. Recommended tools The procedures in this document may req...
Page 10
Table 1. Screw list (continued) Component Secured to Screw type Quantity Screw image Touchpad Palm-rest and keyboard M2x2 assembly Pen-garage cable Palm-rest and keyboard M1.6x2.5 assembly I/O board P...
Page 11
1. Base cover 2. Battery 3. Heat sink 4. System board 5. Power-adapter port 6. Right speaker 7. Touchpad 8. Left speaker 9. Display assembly 10. Palm-rest and keyboard assembly 11. Fan 12. Power butto...
Page 12
Base cover Removing the base cover Prerequisites 1. Follow the procedure in Before working inside your computer. About this task The following images indicate the location of the base cover and provid...
Page 13
Removing and installing components
Page 14
Steps 1. Remove the six screws (M2x4) that secure the base cover to the palm-rest and keyboard assembly. 2. Loosen the three captive screws that secure the base cover to the palm-rest and keyboard ass...
Page 15
Removing and installing components
Page 16
Steps 1. Connect the battery cable to the system board. 2. Align the screw holes on the base cover with the screw holes on the palm-rest and keyboard assembly, and then snap the base cover into place....
Page 17
Do not bend the battery. Do not use tools of any kind to pry on or against the battery. Ensure any screws during the servicing of this product are not lost or misplaced, to prevent accidental puncture...
Page 18
About this task The following image indicates the location of the battery and provides a visual representation of the installation procedure. Steps 1. Using the alignment posts, place the battery on t...
Page 19
Steps 1. Disconnect the coin-cell battery from the I/O board. 2. Peel the tape that secures the speaker cable and coin-cell battery cable to the palm-rest and keyboard assembly. 3. Lift the speaker ca...
Page 20
Steps 1. Adhere the coin-cell battery to the slot on the palm-rest and keyboard assembly. 2. Connect the coin-cell battery cable to the I/O board. 3. Place the speaker cable and adhere the tape that s...
Page 21
Steps 1. Remove the I/O-board cable from the routing guides on the fan. 2. Disconnect the speaker cable from the system board. 3. Peel the tape that secures the speaker cable to the palm-rest and keyb...
Page 22
Steps 1. Using the alignment posts and rubber grommets, place the speakers on the slots of the palm-rest and keyboard assembly. 2. Route the speaker cable through the routing guides on the palm-rest a...
Page 23
CAUTION: For maximum cooling of the processor, do not touch the heat transfer areas on the heat sink. The oils in your skin can reduce the heat transfer capability of the thermal grease. NOTE: The hea...
Page 24
Steps 1. Align the screw holes on the heat sink with the screw holes on the system board. 2. In sequential order (as indicated on the heat sink), tighten the seven captive screws that secure the heat ...
Page 25
Steps 1. Peel the tape that secures the touchscreen cable to the heat sink. 2. In reverse sequential order (as indicated on the heat sink), loosen the four captive screws that secure the heat sink to ...
Page 26
Steps 1. Align the screw holes on the heat sink with the screw holes on the system board. 2. In sequential order (as indicated on the heat sink), tighten the four captive screws that secure the heat s...
Page 27
Steps 1. Remove the two screws (M2x3.5) that secure the right display-hinge to the system board and palm-rest and keyboard assembly. 2. Remove the screw (M2.5x5) that secures the right display-hinge t...
Page 28
Steps 1. Place the power-adapter port, along with its cable, into the slot on the palm-rest and keyboard assembly. 2. Route the power-adapter port cable through the routing guide on the palm-rest and ...
Page 29
Steps 1. Remove the three screws (M2x2) that secure the touchpad bracket to the palm-rest and keyboard assembly. 2. Peel the tape that secures the speaker cable to the touchpad bracket. 3. Open the la...
Page 30
Steps 1. Slide the touchpad into the slot on the palm-rest and keyboard assembly. 2. Replace the two screws (M2x2) that secure the touchpad to the palm-rest and keyboard assembly. 3. Adhere the tape t...
Page 31
Steps 1. Disconnect the pen-garage cable from the system board. 2. Peel the tape that secures the pen-garage cable to the system board. 3. Remove the screw (M1.6x2.5) that secures the pen-garage cable...
Page 32
Steps 1. Align the screw hole on the pen-garage cable with the screw hole on the palm-rest and keyboard assembly. 2. Replace the screw (M1.6x2.5) that secures the pen-garage cable to the palm-rest and...
Page 33
Steps 1. Remove the screw (M2x3) that secure the solid-state drive thermal bracket to the palm-rest and keyboard assembly. 2. Lift the solid-state drive thermal bracket off the palm-rest and keyboard ...
Page 34
The following image indicates the location of the M.2 2230 solid-state drive and provides a visual representation of the installation procedure. Removing and installing components
Page 35
NOTE: Perform step 1 to step 3 if you are replacing the M.2 2230 solid-state drive with an M.2 2280 solid-state drive. Steps 1. Remove the screw (M1.6x2.5) that secures the solid-state drive bracket t...
Page 36
Removing the M.2 2280 solid-state drive Prerequisites 1. Follow the procedure in Before working inside your computer. 2. Remove the base cover. About this task The following image indicates the locati...
Page 37
The following image indicates the location of the M.2 2280 solid-state drive and provides a visual representation of the installation procedure. NOTE: Perform step 1 to step 3 if you are replacing the...
Page 38
3. Align the screw hole on the solid-state drive bracket with the screw hole on the palm-rest and keyboard assembly. 4. Replace the screw (M1.6x2.5) that secures the solid-state drive bracket to the p...
Page 39
Installing the fan Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure. About this task The following image indicates the locatio...
Page 40
Steps 1. Remove the two screws (M2x3.5) that secure the left display hinge to the I/O board and palm-rest and keyboard assembly. 2. Remove the screw (M2.5x5) that secures the left display hinge to the...
