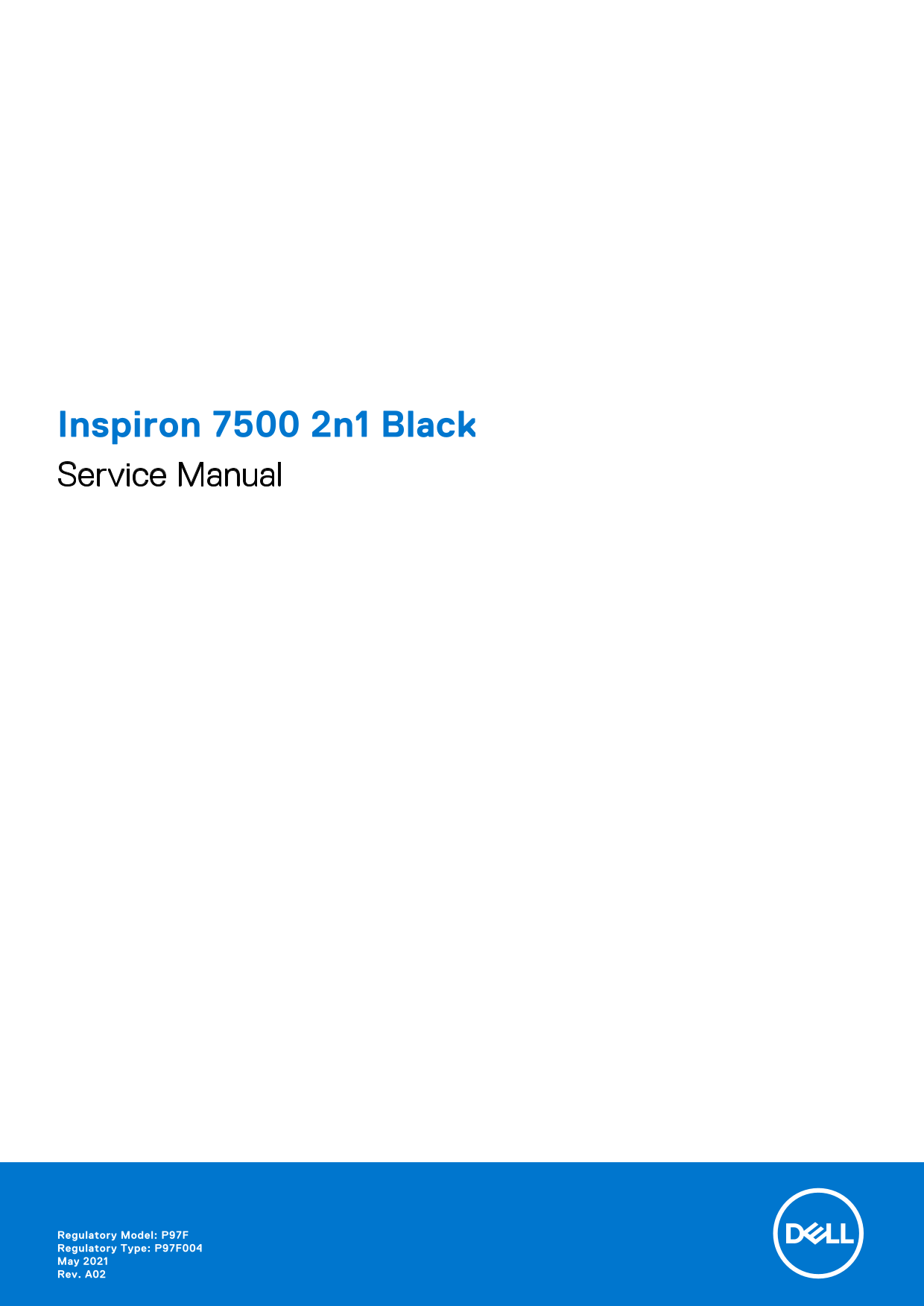

Inspiron 7500 2n1 Black Service Manual
Regulatory Model: P97F Regulatory Type: P97F004 May 2021 Rev. A02
Page Summary Contents For Dell Inspiron 7500 2n1 Black Service Manual
Page 1
Inspiron 7500 2n1 Black Service Manual Regulatory Model: P97F Regulatory Type: P97F004 May 2021 Rev. A02
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents Chapter 1: Working inside your computer...................................................................................... Before working inside your computer.................................
Page 4
Installing the M.2 2230 solid-state drive............................................................................................................... Removing the M.2 2280 solid-state drive...........
Page 5
Working inside your computer Before working inside your computer About this task NOTE: The images in this document may differ from your computer depending on the configuration you ordered. Steps 1. Sa...
Page 6
When disconnecting cables, keep them evenly-aligned to avoid bending the connector pins. When connecting cables, ensure that the ports and the connectors are correctly oriented and aligned. CAUTION: P...
Page 7
and tear, and must be checked regularly with a wrist strap tester in order to avoid accidental ESD hardware damage. It is recommended to test the wrist strap and bonding wire at least once per week. E...
Page 8
Steps 1. Replace all screws and ensure that no stray screws remain inside your computer. 2. Connect any external devices, peripherals, or cables you removed before working on your computer. 3. Replace...
Page 9
Removing and installing components Recommended tools The procedures in this document may require the following tools: Phillips screwdriver #0 Phillips screwdriver #1 Plastic scribe Screw list NOTE: Wh...
Page 10
Table 1. Screw list (continued) Component Secured to Screw type Quantity Screw image Touchpad Palm-rest and keyboard M2x2 assembly Pen-garage cable Palm-rest and keyboard M1.6x2.5 assembly I/O board P...
Page 11
1. Base cover 2. Battery 3. Memory module 4. Heat sink 5. System board 6. Power-adapter port 7. Right speaker 8. Touchpad 9. Left speaker 10. Display assembly 11. Palm-rest and keyboard assembly 12. F...
Page 12
Base cover Removing the base cover Prerequisites 1. Follow the procedure in Before working inside your computer. About this task The following images indicate the location of the base cover and provid...
Page 13
Removing and installing components
Page 14
Steps 1. Remove the six screws (M2x4) that secure the base cover to the palm-rest and keyboard assembly. 2. Loosen the three captive screws that secure the base cover to the palm-rest and keyboard ass...
Page 15
Removing and installing components
Page 16
Steps 1. Connect the battery cable to the system board. 2. Align the screw holes on the base cover with the screw holes on the palm-rest and keyboard assembly, and then snap the base cover into place....
Page 17
Do not bend the battery. Do not use tools of any kind to pry on or against the battery. Ensure any screws during the servicing of this product are not lost or misplaced, to prevent accidental puncture...
Page 18
About this task The following image indicates the location of the battery and provides a visual representation of the installation procedure. Steps 1. Using the alignment posts, place the battery on t...
Page 19
Steps 1. Disconnect the coin-cell battery from the I/O board. 2. Peel the tape that secures the speaker cable and coin-cell battery cable to the palm-rest and keyboard assembly. 3. Lift the speaker ca...
Page 20
Steps 1. Adhere the coin-cell battery to the slot on the palm-rest and keyboard assembly. 2. Connect the coin-cell battery cable to the I/O board. 3. Place the speaker cable and adhere the tape that s...
Page 21
Steps 1. Lift the flap to access the memory module. 2. Use your fingertips to carefully spread apart the securing-clips on each end of the memory-module slot until the memory module pops up. 3. Slide ...
Page 22
Steps 1. Lift the flap to access the memory-module slot. 2. Align the notch on the memory module with the tab on the memory-module slot. 3. Slide the memory module firmly at an angle, into the memory-...
Page 23
Speakers Removing the speakers Prerequisites 1. Follow the procedure in Before working inside your computer. 2. Remove the base cover. 3. Remove the battery. About this task The following image indica...
Page 24
Installing the speakers Prerequisites If you are replacing a component, remove the existing component before performing the installation procedure. About this task The following image indicates the lo...
Page 25
Heat sink Removing the heat sink — for computers with integrated graphics card Prerequisites 1. Follow the procedure in Before working inside your computer. CAUTION: For maximum cooling of the process...
Page 26
NOTE: If either the system board or the heat sink is replaced, use the thermal pad/paste provided in the kit to ensure that thermal conductivity is achieved. About this task The following image indica...
Page 27
Steps 1. Peel the tape that secures the touchscreen cable to the heat sink. 2. In reverse sequential order (as indicated on the heat sink), loosen the seven captive screws that secure the heat sink to...
Page 28
Steps 1. Align the screw holes on the heat sink with the screw holes on the system board. 2. In sequential order (as indicated on the heat sink), tighten the seven captive screws that secure the heat ...
Page 29
Steps 1. Remove the two screws (M2x3.5) that secure the right display-hinge to the system board and palm-rest and keyboard assembly. 2. Remove the screw (M2.5x5) that secures the right display-hinge t...
Page 30
Steps 1. Place the power-adapter port, along with its cable, into the slot on the palm-rest and keyboard assembly. 2. Route the power-adapter port cable through the routing guide on the palm-rest and ...
Page 31
Steps 1. Remove the three screws (M2x2) that secure the touchpad bracket to the palm-rest and keyboard assembly. 2. Peel the tape that secures the speaker cable to the touchpad bracket. 3. Open the la...
Page 32
Steps 1. Slide the touchpad into the slot on the palm-rest and keyboard assembly. 2. Replace the two screws (M2x2) that secure the touchpad to the palm-rest and keyboard assembly. 3. Adhere the tape t...
Page 33
Steps 1. Disconnect the pen-garage cable from the system board. 2. Peel the tape that secures the pen-garage cable to the system board. 3. Remove the screw (M1.6x2.5) that secures the pen-garage cable...
Page 34
Steps 1. Align the screw hole on the pen-garage cable with the screw hole on the palm-rest and keyboard assembly. 2. Replace the screw (M1.6x2.5) that secures the pen-garage cable to the palm-rest and...
Page 35
Steps 1. Remove the screw (M2x3) that secure the solid-state drive thermal bracket to the palm-rest and keyboard assembly. 2. Lift the solid-state drive thermal bracket off the palm-rest and keyboard ...
Page 36
The following image indicates the location of the M.2 2230 solid-state drive and provides a visual representation of the installation procedure. Removing and installing components
Page 37
NOTE: Perform step 1 to step 3 if you are replacing the M.2 2230 solid-state drive with an M.2 2280 solid-state drive. Steps 1. Remove the screw (M1.6x2.5) that secures the solid-state drive bracket t...
Page 38
Removing the M.2 2280 solid-state drive Prerequisites 1. Follow the procedure in Before working inside your computer. 2. Remove the base cover. About this task The following image indicates the locati...
Page 39
The following image indicates the location of the M.2 2280 solid-state drive and provides a visual representation of the installation procedure. NOTE: Perform step 1 to step 3 if you are replacing the...
Page 40
3. Align the screw hole on the solid-state drive bracket with the screw hole on the palm-rest and keyboard assembly. 4. Replace the screw (M1.6x2.5) that secures the solid-state drive bracket to the p...
