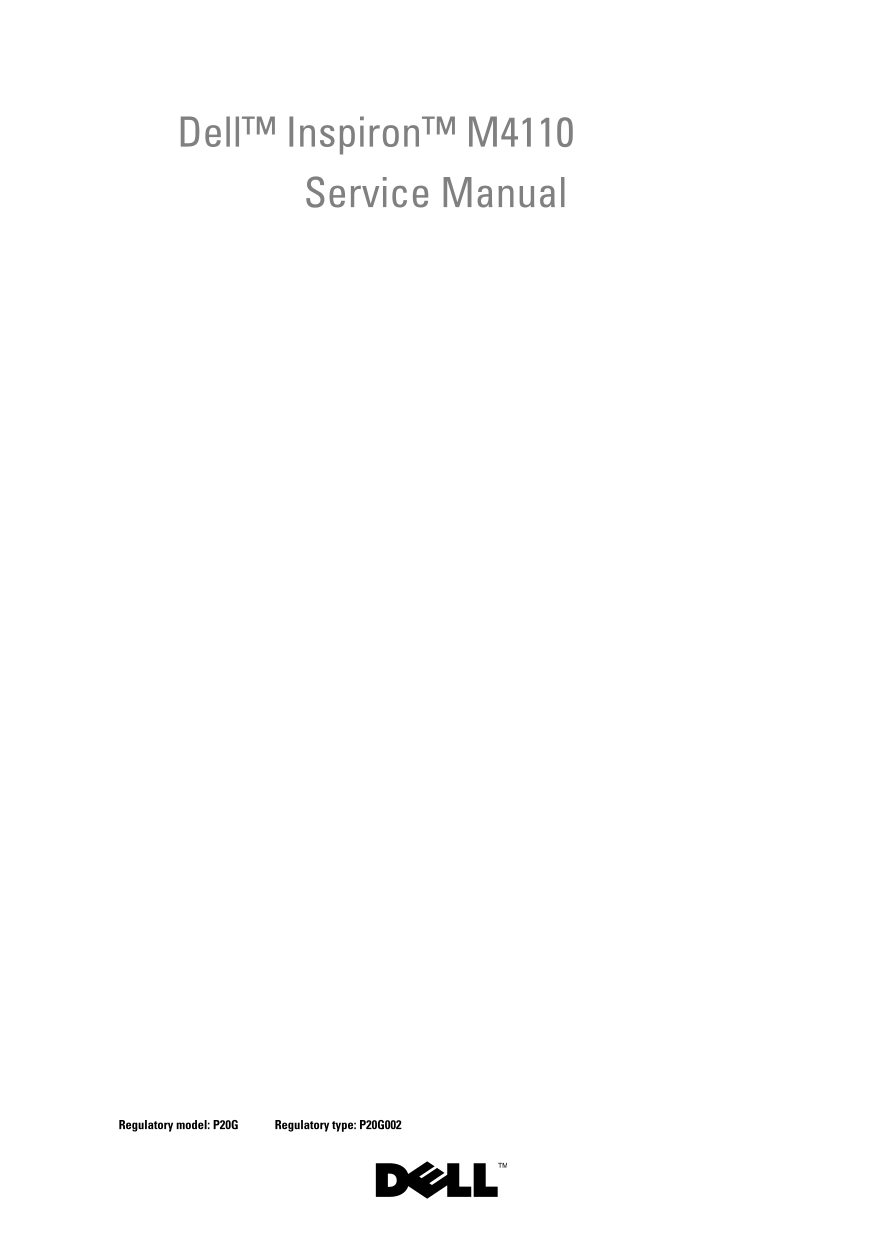

Dell Inspiron M411R Service Manual

Summary

This service manual provides comprehensive documentation for the product. The document includes detailed information about setup, configuration, operation, and maintenance of the laptop. It covers key features, specifications, installation procedures, troubleshooting steps, and best practices. The manual is designed for system administrators, IT professionals, and end users who need to deploy, manage, or operate the equipment effectively. Readers will find step-by-step instructions, technical diagrams, safety information, and reference materials to ensure proper usage and optimal performance.

Dell™ Inspiron™ N4110 Service Manual
Notes, Cautions, and Warnings
Contents
Before You Begin
- Recommended Tools
- Turning Off Your Computer
- Before Working Inside Your Computer
  - 2
Top Cover
- Removing the Top Cover
  - 1 Follow the instructions in "Before You Begin" on page 9.
  - 2 Press and hold the release button that secures the top cover to the display back cover.
  - 3 Slide and lift the top cover.
- Replacing the Top Cover
  - 1 Follow the instructions in "Before You Begin" on page 9.
  - 2 Align the top cover to the display back cover.
  - 3 Slide the top cover until it clicks into place. Ensure that there are no gaps between the top cover and display back cover.
  - 3
Battery
- Removing the Battery
  - 1 Follow the instructions in "Before You Begin" on page 9.
  - 2 Shut down the computer and turn it over.
  - 3 Slide the battery lock latch until it clicks into place.
  - 4 Slide the battery release latch to the unlock position.
  - 5 Slide and lift the battery out of the battery bay.
- Replacing the Battery
  - 1 Follow the instructions in "Before You Begin" on page 9.
  - 2 Slide the battery into the battery bay until it clicks into place.
  - 3 Slide the battery lock latch to the lock position.
- Module Cover
  - Removing the Module Cover
  - Replacing the Module Cover
- Optical Drive
  - Removing the Optical Drive
  - Replacing the Optical Drive
- Memory Module(s)
  - Removing the Memory Module(s)
  - Replacing the Memory Module(s)

    7
Keyboard
- Removing the Keyboard
  - 1 Follow the instructions in "Before You Begin" on page 9.
  - 2 Remove the battery (see "Removing the Battery" on page 15).
  - 3 Turn the computer over and open the display as far as possible.
  - 4 Slide a plastic scribe between the slots on the keyboard and release the tabs on the palm rest.
  - 5 Pry and lift the keyboard to disengage it from the tabs on the palm rest.
  - 6 Ease the keyboard up until it clears off the palm rest.
  - 7 Carefully turn the keyboard over and place it on the palm-rest assembly.
  - 8 Lift the connector latch that secures the keyboard cable to the connector on the system board and disconnect the keyboard cable.
  - 9 Lift the keyboard off the computer.
- Replacing the Keyboard
  - 1 Follow the instructions in "Before You Begin" on page 9.
  - 2 Slide the keyboard cable into the connector on the system board. Press down on the connector latch to secure the keyboard cable to the connector on the system board.
  - 3 Slide the tabs on the keyboard into the slots on the palm-rest assembly.
  - 4 Gently press around the edges of the keyboard and slide it upwards to secure the keyboard under the tabs on the palm-rest assembly.
  - 5 Close the display and turn the computer over.
  - 6 Replace the battery (see "Replacing the Battery" on page 16).
  - 8
Palm-Rest Assembly
- Removing the Palm-Rest Assembly
  - 1 Follow the instructions in "Before You Begin" on page 9.
  - 2 Remove the battery (see "Removing the Battery" on page 15).
  - 3 Remove the module cover (see "Removing the Module Cover" on page 17).
  - 4 Follow the instructions from step 4 to step 5 in "Removing the Optical Drive" on page 19.
  - 5 Remove the ten screws from the computer base.
  - 6 Remove the keyboard (see "Removing the Keyboard" on page 27).
  - 7 Remove the five screws on the palm-rest assembly.
  - 8 Lift the connector latches and pull the pull-tabs to disconnect the power-button cable, touch-pad cable, and hot-key board cable from the connectors on the system board.
  - 9 Using a plastic scribe, carefully pry out the palm-rest assembly along the rear edge and then ease the palm-rest assembly from the computer base.
  - 10 Lift the palm-rest assembly off the computer base.
  - 11 Turn the palm-rest assembly over.
  - 12 Remove the hot-key board (see "Removing the Hot-Key Board" on page 37).
  - 13 Remove the power button board (see "Removing the Power Button Board" on page 41).
- Replacing the Palm-Rest Assembly
  - 1 Follow the instructions in "Before You Begin" on page 9.
  - 2 Replace the power button board (see "Replacing the Power Button Board" on page 42).
  - 3 Replace the hot-key board (see "Replacing the Hot-Key Board" on page 38).
  - 4 Align the tabs on the palm-rest assembly with the slots on the computer base and gently snap the palm-rest assembly in place.
  - 5 Slide the power-button cable, touch-pad cable, and hot-key board cable into the connectors on the system board and press down on the connector latches to secure them.
  - 6 Replace the five screws on the palm-rest assembly.
  - 7 Replace the keyboard (see "Replacing the Keyboard" on page 29).
  - 8 Turn the computer over and replace the ten screws at the bottom of the computer.
  - 9 Follow the instructions from step 4 to step 5 in "Replacing the Optical Drive" on page 21.
  - 10 Replace the module cover (see "Replacing the Module Cover" on page 18).
  - 11 Replace the battery (see "Replacing the Battery" on page 16).
- Hot-Key Board
  - Removing the Hot-Key Board
  - Replacing the Hot-Key Board
- Power Button Board
  - Removing the Power Button Board
  - Replacing the Power Button Board

    11
Wireless Mini-Card(s)
- Removing the Mini-Card(s)
  - 1 Follow the instructions in "Before You Begin" on page 9.
  - 2 Remove the battery (see "Removing the Battery" on page 15).
  - 3 Remove the module cover (see "Removing the Module Cover" on page 17).
  - 4 Follow the instructions from step 4 to step 5 in "Removing the Optical Drive" on page 19.
  - 5 Remove the keyboard (see "Removing the Keyboard" on page 27).
  - 6 Remove the palm-rest assembly (see "Removing the Palm-Rest Assembly" on page 31).
  - 7 Disconnect the two antenna cables from the Mini-Card(s).
  - 8 Remove the screw that secures the Mini-Card(s) to the system board.
  - 9 Lift the Mini-Card(s) off the computer base.
  - 10 If you are removing the WLAN Mini-Card, detach it from the WLAN Mini-Card bracket.
- Replacing the Mini-Card(s)
  - 1 Follow the instructions in "Before You Begin" on page 9.
  - 2 Remove the new Mini-Card from its packaging.
  - 3 If you are replacing the WLAN Mini-Card, attach it to the WLAN Mini-Card bracket.
  - 4 Insert the Mini-Card connector at a 45-degree angle into the system-board connector.
  - 5 Press the other end of the Mini-Card down into the slot on the system board and replace the screw that secures the Mini-Card to the system board.
  - 6 Connect the appropriate antenna cables to the Mini-Card you are installing. The following table provides the antenna cable color scheme for the Mini-Cards supported by your computer.
  - 7 Replace the palm-rest assembly (see "Replacing the Palm-Rest Assembly" on page 35).
  - 8 Replace the keyboard (see "Replacing the Keyboard" on page 29).
  - 9 Follow the instructions from step 4 to step 5 in "Replacing the Optical Drive" on page 21.
  - 10 Replace the module cover (see "Replacing the Module Cover" on page 18).
  - 11 Replace the battery (see "Replacing the Battery" on page 16).
  - 12 Install the drivers and utilities for your computer, as required.
  - 12
Thermal Fan
- Removing the Thermal Fan
  - 1 Follow the instructions in "Before You Begin" on page 9.
  - 2 Remove the battery (see "Removing the Battery" on page 15).
  - 3 Remove the keyboard (see "Removing the Keyboard" on page 27).
  - 4 Remove the palm-rest assembly (see "Removing the Palm-Rest Assembly" on page 31).
  - 5 Disconnect the display cable from the connector on the system board.
  - 6 Disconnect the thermal fan cable from the connector on the system board.
  - 7 Remove the screw that secures the thermal fan to the computer base.
  - 8 Lift the thermal fan off the system board.
- Replacing the Thermal Fan
  - 1 Follow the instructions in "Before You Begin" on page 9.
  - 2 Place the thermal fan on the computer base and replace the screw.
  - 3 Connect the thermal fan cable to the connector on the system board.
  - 4 Connect the display cable to the connector on the system board.
  - 5 Replace the palm-rest assembly (see "Replacing the Palm-Rest Assembly" on page 35).
  - 6 Replace the keyboard (see "Replacing the Keyboard" on page 29).
  - 7 Replace the battery (see "Replacing the Battery" on page 16).
  - 13
Display
- Display Assembly
  - Removing the Display Assembly

    1 Follow the instructions in "Before You Begin" on page 9.

    2 Remove the battery (see "Removing the Battery" on page 15).

    3 Remove the module cover (see "Removing the Module Cover" on page 17).

    4 Follow the instructions from step 4 to step 5 in "Removing the Optical Drive" on page 19.

    5 Remove the two screws from the computer base.

    6 Remove the keyboard (see "Removing the Keyboard" on page 27).

    7 Remove the palm-rest assembly (see "Removing the Palm-Rest Assembly" on page 31).

    8 Loosen the display cable grounding screw.

    9 Disconnect the display cable from the connector on the system board.

    10 Disconnect the Mini-Card antenna cables from the connectors on the Mini-Card(s) (see "Removing the Mini-Card(s)" on page 45).

    11 Remove the four screws that secure the display assembly to the computer base.

    12 Lift the display assembly off the computer base.
  - Replacing the Display Assembly

    1 Follow the instructions in "Before You Begin" on page 9.

    2 Place the display assembly in position and replace the four screws that secure the display assembly to the computer base.

    3 Route the display cable and Mini-Card antenna cables through the routing guides.

    4 Connect the display cable to the connector on the system board.

    5 Connect the Mini-Card antenna cables to the Mini-Cards(s) (see "Replacing the Mini-Card(s)" on page 47).

    6 Tighten the display cable grounding screw.

    7 Replace the palm-rest assembly (see "Replacing the Palm-Rest Assembly" on page 35).

    8 Replace the keyboard (see "Replacing the Keyboard" on page 29).

    9 Replace the two screws at the bottom of the computer.

    10 Follow the instructions from step 4 to step 5 in "Replacing the Optical Drive" on page 21.

    11 Replace the module cover (see "Replacing the Module Cover" on page 18).

    12 Replace the battery (see "Replacing the Battery" on page 16).
- Display Bezel
  - Removing the Display Bezel

    1 Follow the instructions in "Before You Begin" on page 9.

    2 Remove the top cover (see "Removing the Top Cover" on page 13).

    3 Remove the display assembly (see "Removing the Display Assembly" on page 53).

    4 Using your fingertips, carefully pry up the inside edge of the display bezel.

    5 Remove the display bezel.
  - Replacing the Display Bezel

    1 Follow the instructions in "Before You Begin" on page 9.

    2 Realign the display bezel over the display panel and gently snap it into place.

    3 Replace the display assembly (see "Replacing the Display Assembly" on page 56).

    4 Replace the top cover (see "Replacing the Top Cover" on page 14).
- Display Panel
  - Removing the Display Panel

    1 Follow the instructions in "Before You Begin" on page 9.

    2 Remove the display assembly (see "Removing the Display Assembly" on page 53).

    3 Remove the display bezel (see "Removing the Display Bezel" on page 57).

    4 Remove the six screws that secure the display panel to the display cover.

    5 Note the routing of the display cable and Mini-Card(s) cables and remove the cables from the routing guides on the display cover.

    6 Lift the display panel off the display cover.
  - Replacing the Display Panel

    1 Follow the instructions in "Before You Begin" on page 9.

    2 Align the screw holes on the display panel with the screw holes on the display cover and replace the six screws.

    3 Route the display cable through the routing guides on the display cover.

    4 Replace the display bezel (see "Replacing the Display Bezel" on page 58).

    5 Replace the display assembly (see "Replacing the Display Assembly" on page 56).
- Display Cable
  - Removing the Display Cable

    1 Follow the instructions in "Before You Begin" on page 9.

    2 Remove the display assembly (see "Removing the Display Assembly" on page 53).

    3 Remove the display bezel (see "Removing the Display Bezel" on page 57).

    4 Remove the display panel (see "Removing the Display Panel" on page 58).

    5 Turn the display panel over and place it on a clean surface.

    6 Lift the tape that secures the display cable to the connector on the display panel and disconnect the display cable.
  - Replacing the Display Cable

    1 Follow the instructions in "Before You Begin" on page 9.

    2 Connect the display cable to the connector on the display panel and secure it with the tape.

    3 Turn the display panel over and place it on the display cover.

    4 Replace the display panel (see "Replacing the Display Panel" on page 59).

    5 Replace the display bezel (see "Replacing the Display Bezel" on page 58).

    6 Replace the display assembly (see "Replacing the Display Assembly" on page 56).
- Hinge Caps
  - Removing the Hinge Caps

    1 Follow the instructions in "Before You Begin" on page 9.

    2 Remove the display assembly (see "Removing the Display Assembly" on page 53).

    3 Remove the display bezel (see "Removing the Display Bezel" on page 57).

    4 Remove the six screws that secure the display panel to the display cover.

    5 Turn the display panel over and keep it on a clean surface.

    6 Press both sides of each hinge cap and lift the hinge caps out of the display hinges.
  - Replacing the Hinge Caps

    1 Follow the instructions in "Before You Begin" on page 9.

    2 Align the tabs on the hinge caps with the slots on the display panel brackets and snap them into place.

    3 Turn the display panel over and place it on the display cover.

    4 Replace the six screws that secure the display panel to the display cover.

    5 Replace the display bezel (see "Replacing the Display Bezel" on page 58).

    6 Replace the display assembly (see "Replacing the Display Assembly" on page 56).
- Display Panel Brackets
  - Removing the Display Panel Brackets

    1 Follow the instructions in "Before You Begin" on page 9.

    2 Remove the display assembly (see "Removing the Display Assembly" on page 53).

    3 Remove the display bezel (see "Removing the Display Bezel" on page 57).

    4 Remove the hinge caps (see "Removing the Hinge Caps" on page 61).

    5 Remove the four screws (two on each side) that secure the display panel brackets to the display panel.
  - Replacing the Display Panel Brackets

    1 Follow the instructions in "Before You Begin" on page 9.

    2 Align the screw holes on the display panel vbbrackets with the screw holes on the display panel.

    3 Replace the four screws (two on each side) that secure the display-panel brackets to the display panel.

    4 Replace the hinge caps (see "Replacing the Hinge Caps" on page 62).

    5 Replace the display bezel (see "Replacing the Display Bezel" on page 58).

    6 Replace the display assembly (see "Replacing the Display Assembly" on page 56).
- Camera Module
  - Removing the Camera Module
  - Replacing the Camera Module
- Hinge Cover
  - Removing the Hinge Cover
  - Replacing the Hinge Cover
- VGA Connector Board
  - Removing the VGA Connector Board
  - Replacing the VGA Connector Board

    17
System Board
- Removing the System Board
  - 1 Follow the instructions in "Before You Begin" on page 9.
  - 2 Press and eject any installed cards or blanks from the 8-in-1 media card reader.
  - 3 Remove the battery (see "Removing the Battery" on page 15).
  - 4 Remove the module cover (see "Removing the Module Cover" on page 17).
  - 5 Remove the memory module(s) (see "Removing the Memory Module(s)" on page 23).
  - 6 Follow the instructions from step 4 to step 5 in "Removing the Optical Drive" on page 19.
  - 7 Disconnect the AC-adapter connector cable from the connector on the system board.
  - 8 Remove the keyboard (see "Removing the Keyboard" on page 27).
  - 9 Remove the palm-rest assembly (see "Removing the Palm-Rest Assembly" on page 31).
  - 10 Remove the thermal fan (see "Removing the Thermal Fan" on page 49).
  - 11 Loosen the display cable grounding screw.
  - 12 Disconnect the display cable and speakers cable from the connectors on the system board.
  - 13 Remove the five screws that secure the system board to the computer base.
  - 14 Lift the system board assembly to disconnect the connector on the system board from the connector on the I/O board.
  - 15 Turn the system board over.
  - 16 Remove the coin-cell battery (see "Removing the Coin-Cell Battery" on page 87).
  - 17 Follow the instructions from step 3 to step 5 in "Removing the Hard-Drive Assembly" on page 95.
  - 18 Remove the thermal cooling assembly (see "Removing the Thermal Cooling Assembly" on page 89.
  - 19 Remove the processor module (see "Removing the Processor Module" on page 91).
- Replacing the System Board
  - 1 Follow the instructions in "Before You Begin" on page 9.
  - 2 Replace the processor module (see "Replacing the Processor Module" on page 92).
  - 3 Replace the thermal cooling assembly (see "Replacing the Thermal Cooling Assembly" on page 90.
  - 4 Follow the instructions from step 5 to step 7 in "Replacing the Hard-Drive Assembly" on page 97.
  - 5 Replace the coin-cell battery (see "Replacing the Coin-Cell Battery" on page 88).
  - 6 Turn the system board over.
  - 7 Align the connectors on the system board with the slots on the computer base and place it in position.
  - 8 Gently press the system board to connect the connector on the system board to the connector on the I/O board.
  - 9 Replace the five screws that secure the system board to the computer base.
  - 10 Connect the display cable and speakers cable to the connectors on the system board.
  - 11 Tighten the display cable grounding screw.
  - 12 Replace the thermal fan (see "Replacing the Thermal Fan" on page 50).
  - 13 Replace the palm-rest assembly (see "Replacing the Palm-Rest Assembly" on page 35).
  - 14 Replace the keyboard (see "Replacing the Keyboard" on page 29).
  - 15 Connect the AC-adapter connector cable to the connector on the system board.
  - 16 Follow the instructions from step 4 to step 5 in "Replacing the Optical Drive" on page 21.
  - 17 Replace the memory module(s) (see "Replacing the Memory Module(s)" on page 24).
  - 18 Replace the module cover (see "Replacing the Module Cover" on page 18).
  - 19 Replace the battery (see "Replacing the Battery" on page 16).
  - 20 Replace any cards or blanks removed from the 8-in-1 media card reader.
  - 21 Turn on the computer.
  - 22 Enter the service tag (see "Entering the Service Tag in the BIOS" on page 82).
- Entering the Service Tag in the BIOS
  - 1 Ensure that the AC adapter is plugged in and that the main battery is installed properly.
  - 2 Turn on the computer.
  - 3 Press <F2> as soon as you see the Dell logo to enter the system setup program.
  - 4 Navigate to the security tab and enter the service tag in the Set Service Tag field.
  - 18
Speakers
- Removing the Speakers
  - 1 Follow the instructions in "Before You Begin" on page 9.
  - 2 Follow the instructions from step 2 to step 14 in "Removing the System Board" on page 77.
  - 3 Note the speakers cable routing and lift the left and right speakers along with the its cable from the computer base.
- Replacing the Speakers
  - 1 Follow the instructions in "Before You Begin" on page 9.
  - 2 Place the speakers on the computer base and route the speakers cable through the routing guides.
  - 3 Follow the instructions from step 7 to step 20 in "Replacing the System Board" on page 81.
  - 19
Coin-Cell Battery
- Removing the Coin-Cell Battery
  - 1 Follow the instructions in "Before You Begin" on page 9.
  - 2 Follow the instructions from step 2 to step 15 in "Removing the System Board" on page 77.
  - 3 Use a plastic scribe and gently pry the coin-cell out of the battery socket on the system board.
  - 4 Lift the coin-cell battery out of the system-board socket.
- Replacing the Coin-Cell Battery
  - 1 Follow the instructions in "Before You Begin" on page 9.
  - 2 Hold the coin-cell battery with the positive side up.
  - 3 Slide the coin-cell battery into the slot and gently press until it snaps in place.
  - 4 Follow the instructions from step 6 to step 20 in "Replacing the System Board" on page 81.
- Thermal Cooling Assembly
  - Removing the Thermal Cooling Assembly
  - Replacing the Thermal Cooling Assembly

    21
Processor Module
- Removing the Processor Module
  - 1 Follow the instructions in "Before You Begin" on page 9.
  - 2 Follow the instructions from step 2 to step 15 in "Removing the System Board" on page 77.
  - 3 Remove the thermal cooling assembly (see "Removing the Thermal Cooling Assembly" on page 89).
  - 4 To loosen the ZIF socket, use a small, flat-blade screwdriver and rotate the ZIF-socket cam screw counterclockwise until it comes to the cam stop.
  - 5 Lift the processor module from the ZIF socket.
- Replacing the Processor Module
  - 1 Follow the instructions in "Before You Begin" on page 9.
  - 2 Align the pin-1 corner of the processor module with the pin-1 corner of the ZIF socket, then insert the processor module.
  - 3 Tighten the ZIF socket by turning the cam screw clockwise to secure the processor module to the system board.
  - 4 Replace the thermal cooling assembly (see "Replacing the Thermal Cooling Assembly" on page 90).
  - 5 Follow the instructions from step 6 to step 20 in "Replacing the System Board" on page 81.
  - 22
Hard-Drive Assembly
- Removing the Hard-Drive Assembly
  - 1 Follow the instructions in "Before You Begin" on page 9.
  - 2 Follow the instructions from step 2 to step 15 in "Removing the System Board" on page 77.
  - 3 Remove the screw that secures the hard-drive assembly to the system board.
  - 4 Slide the hard-drive assembly in the direction shown in the illustration to disconnect it from the connector on the system board.
  - 5 Lift the hard-drive assembly off the system board.
  - 6 Remove the four screws that secure the hard-drive bracket to the hard drive.
  - 7 Lift the hard drive away from the hard-drive bracket.
- Replacing the Hard-Drive Assembly
  - 1 Follow the instructions in "Before You Begin" on page 9.
  - 2 Remove the new hard drive from its packaging.
  - 3 Place the hard drive in the hard-drive bracket.
  - 4 Replace the four screws that secure the hard-drive bracket to the hard drive.
  - 5 Place the hard-drive assembly on the system board.
  - 6 Slide the hard-drive assembly to connect it to the connector on the system board.
  - 7 Replace the screw that secures the hard-drive assembly to the system board.
  - 8 Follow the instructions from step 6 to step 20 in "Replacing the System Board" on page 81.
- I/O Board
  - Removing the I/O Board
  - Replacing the I/O Board

    24
AC-Adapter Connector
- Removing the AC-Adapter Connector
  - 1 Follow the instructions in "Before You Begin" on page 9.
  - 2 Follow the instructions from step 2 to step 14 in "Removing the System Board" on page 77.
  - 3 Remove the display assembly (see "Removing the Display Assembly" on page 53).
  - 4 Remove the hinge cover (see "Removing the Hinge Cover" on page 69).
  - 5 Remove the VGA connector board (see "Removing the VGA Connector Board" on page 73).
  - 6 Note the AC-adapter connector cable routing and remove the cable from the routing guides.
  - 7 Remove the screw that secures the AC-adapter connector to the computer base.
  - 8 Lift the AC-adapter connector off the computer base.
- Replacing the AC-Adapter Connector
  - 1 Follow the instructions in "Before You Begin" on page 9.
  - 2 Place the AC-adapter connector on the computer base.
  - 3 Replace the screw that secures the AC-adapter connector to the computer base.
  - 4 Route the AC-adapter connector cable through the routing guides.
  - 5 Replace the VGA connector board (see "Replacing the VGA Connector Board" on page 74).
  - 6 Replace the hinge cover (see "Replacing the Hinge Cover" on page 71).
  - 7 Replace the display assembly (see "Replacing the Display Assembly" on page 56).
  - 8 Follow the instructions from step 7 to step 20 in "Replacing the System Board" on page 81.
  - 25
Flashing the BIOS
- 1 Turn on the computer.
- 2 Go to support.dell.com/support/downloads.
- 3 Locate the BIOS update file for your computer:
  - a Click Enter a Tag.
  - b Enter your computer’s Service Tag in the Enter a service tag: field, click Go, and proceed to step 4.
  - a Click Select Model.
  - b Select the type of product in the Select Your Product Family list.
  - c Select the product brand in the Select Your Product Line list.
  - d Select the product model number in the Select Your Product Model list.
  - e Click Confirm.
- 4 A list of results appear on the screen. Click BIOS.
- 5 Click Download Now to download the latest BIOS file. The File Download window appears.
- 6 Click Save to save the file on your desktop. The file downloads to your desktop.
- 7 Click Close if the Download Complete window appears. The file icon appears on your desktop and is titled the same as the downloaded BIOS update file.
- 8 Double-click the file icon on the desktop and follow the instructions on the screen.

📄 Preview 📖 Table of Contents Contents ‹ PAGE OF 106 ›

‹

Dell Inspiron M411R Service Manual - Page 1

›

Page 1 Text Content

Dell™ Inspiron™ M4110 Service Manual

Regulatory model: P20G Regulatory type: P20G002

Page Summary Contents For Dell Inspiron M411R Service Manual

Page 1 Dell™ Inspiron™ M4110 Service Manual Regulatory model: P20G Regulatory type: P20G002

Page 2 Notes, Cautions, and Warnings NOTE: A NOTE indicates important information that helps you make better use of your computer. CAUTION: A CAUTION indicates potential damage to hardware or loss of data if...

Page 3 Contents Before You Begin Recommended Tools. Turning Off Your Computer. Before Working Inside Your Computer Top Cover Removing the Top Cover Replacing the Top Cover Battery Removing the Battery Replac...

Page 4 Replacing the Optical Drive Memory Module(s) Removing the Memory Module(s) Replacing the Memory Module(s) Keyboard Removing the Keyboard Replacing the Keyboard Palm-Rest Assembly Removing the Palm-Res...

Page 5 Wireless Mini-Card(s) Removing the Mini-Card(s) Replacing the Mini-Card(s) Thermal Fan Removing the Thermal Fan Replacing the Thermal Fan Display Display Assembly Removing the Display Assembly Replaci...

Page 6 Removing the Display Brackets Replacing the Display Brackets Camera Module Removing the Camera Module. Replacing the Camera Module Hinge Cover Removing the Hinge Cover Replacing the Hinge Cover VGA Co...

Page 7 Coin-Cell Battery Removing the Coin-Cell Battery Replacing the Coin-Cell Battery. Thermal Cooling Assembly Removing the Thermal Cooling Assembly Replacing the Thermal Cooling Assembly Processor Module...

Page 8 Replacing the AC-Adapter Connector Flashing the BIOS Contents

Page 9 Before You Begin This manual provides procedures for removing and installing components in your computer. Unless otherwise noted, each procedure assumes that the following conditions exist: You have p...

Page 10 Before Working Inside Your Computer Use the following safety guidelines to help protect your computer from potential damage and to help to ensure your own personal safety. WARNING: Before working insi...

Page 11 CAUTION: To help prevent damage to the system board, remove the main battery (see "Removing the Battery" on page 15) before working inside the computer. Remove the battery (see "Removin...

Page 12 Before You Begin

Page 13 Top Cover WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Compliance Hom...

Page 14 top cover release button Replacing the Top Cover Follow the instructions in "Before You Begin" on page 9. NOTE: Ensure that the Dell logo is facing towards the back of the computer while rep...

Page 15 Battery WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Compliance Homep...

Page 16 battery release latch battery battery lock latch Replacing the Battery Follow the instructions in "Before You Begin" on page 9. Slide the battery into the battery bay until it clicks into pl...

Page 17 Module Cover WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Compliance ...

Page 18 captive screw module cover tabs (2) Replacing the Module Cover Follow the instructions in "Before You Begin" on page 9. Align the tabs on the module cover with the slots on the computer base...

Page 19 Optical Drive WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Compliance...

Page 20 optical-drive assembly screw Remove the two screws that secure the optical-drive bracket to the optical drive. Pull the optical-drive bezel to detach it from the optical drive. Optical Drive

Page 21 screws (2) optical-drive bracket optical drive optical-drive bezel Replacing the Optical Drive Follow the instructions in "Before You Begin" on page 9. Align the tabs on the optical-drive be...

Page 22 Optical Drive

Page 23 Memory Module(s) WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Complia...

Page 24 memory-module connector securing clips (2) memory module Replacing the Memory Module(s) CAUTION: If you need to install memory modules in two connectors, install a memory module in the connector label...

Page 25 tab notch Replace the module cover (see "Replacing the Module Cover" on page 18). Replace the battery (see "Replacing the Battery" on page 16), or connect the AC adapter to your co...

Page 26 Memory

Page 27 Keyboard WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Compliance Home...

Page 28 plastic scribe keyboard CAUTION: Be extremely careful when removing and handling the keyboard. Failure to do so could result in scratching the display panel. Ease the keyboard up until it clears off t...

Page 29 keyboard cable keyboard-cable connector Replacing the Keyboard Follow the instructions in "Before You Begin" on page 9. Slide the keyboard cable into the connector on the system board. Press...

Page 30 Replace the battery (see "Replacing the Battery" on page 16). Keyboard

Page 31 Palm-Rest Assembly WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Compl...

Page 32 Remove the five screws on the palm-rest assembly. CAUTION: Pull on the plastic tab on top of the connectors to avoid damaging the connectors. Lift the connector latches and pull the pull-tabs to disco...

Page 33 touch-pad cable power-button cable hot-key board cable Palm-Rest Assembly

Page 34 CAUTION: Carefully separate the palm rest from the computer base to avoid damage to the palm rest. Using a plastic scribe, carefully pry out the palm-rest assembly along the rear edge and then ease th...

Page 35 Replacing the Palm-Rest Assembly Follow the instructions in "Before You Begin" on page 9. Replace the power button board (see "Replacing the Power Button Board" on page 42). Replac...

Page 36 Palm-Rest Assembly

Page 37 Hot-Key Board WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Compliance...

Page 38 screw hot-key board hot-key board cable Replacing the Hot-Key Board Follow the instructions in "Before You Begin" on page 9. Align the slots on the hot-key board with the alignment posts on ...

Page 39 CAUTION: Before turning on the computer, replace all screws and ensure that no stray screws remain inside the computer. Failure to do so may result in damage to the computer. Hot-Key Board

Page 40 Hot-Key Board

Manual Details

Brand	Dell
Pages	106
File Size	6.00 MB
Published	June 28, 2026

4 views

Enter the captcha to get the download link:

Frequently Asked Questions

How do I replace the system board?

Remove the hinge cover, display assembly, and VGA connector board, then follow steps 7 to 20 in 'Replacing the System Board'.

Where can I find the Service Tag?

The Service Tag is located on a label at the bottom of the computer.

How do I flash the BIOS?

Download the file from support.dell.com, save it to your desktop, double-click the icon, and follow the on-screen instructions.

What is the purpose of the CAUTION before turning on the computer?

It ensures no stray screws remain inside the computer to prevent damage.

Dell Inspiron M411R Service Manual

Summary

2

1 Follow the instructions in "Before You Begin" on page 9.

2 Press and hold the release button that secures the top cover to the display back cover.

3 Slide and lift the top cover.

1 Follow the instructions in "Before You Begin" on page 9.

2 Align the top cover to the display back cover.

3 Slide the top cover until it clicks into place. Ensure that there are no gaps between the top cover and display back cover.

3

1 Follow the instructions in "Before You Begin" on page 9.

2 Shut down the computer and turn it over.

3 Slide the battery lock latch until it clicks into place.

4 Slide the battery release latch to the unlock position.

5 Slide and lift the battery out of the battery bay.

1 Follow the instructions in "Before You Begin" on page 9.

2 Slide the battery into the battery bay until it clicks into place.

3 Slide the battery lock latch to the lock position.

Removing the Module Cover

Replacing the Module Cover

Removing the Optical Drive

Replacing the Optical Drive

Removing the Memory Module(s)

Replacing the Memory Module(s)

7

1 Follow the instructions in "Before You Begin" on page 9.

2 Remove the battery (see "Removing the Battery" on page 15).

3 Turn the computer over and open the display as far as possible.

4 Slide a plastic scribe between the slots on the keyboard and release the tabs on the palm rest.

5 Pry and lift the keyboard to disengage it from the tabs on the palm rest.

6 Ease the keyboard up until it clears off the palm rest.

7 Carefully turn the keyboard over and place it on the palm-rest assembly.

8 Lift the connector latch that secures the keyboard cable to the connector on the system board and disconnect the keyboard cable.

9 Lift the keyboard off the computer.

1 Follow the instructions in "Before You Begin" on page 9.

2 Slide the keyboard cable into the connector on the system board. Press down on the connector latch to secure the keyboard cable to the connector on the system board.

3 Slide the tabs on the keyboard into the slots on the palm-rest assembly.

4 Gently press around the edges of the keyboard and slide it upwards to secure the keyboard under the tabs on the palm-rest assembly.

5 Close the display and turn the computer over.

6 Replace the battery (see "Replacing the Battery" on page 16).

8

1 Follow the instructions in "Before You Begin" on page 9.

2 Remove the battery (see "Removing the Battery" on page 15).

3 Remove the module cover (see "Removing the Module Cover" on page 17).

4 Follow the instructions from step 4 to step 5 in "Removing the Optical Drive" on page 19.

5 Remove the ten screws from the computer base.

6 Remove the keyboard (see "Removing the Keyboard" on page 27).

7 Remove the five screws on the palm-rest assembly.

8 Lift the connector latches and pull the pull-tabs to disconnect the power-button cable, touch-pad cable, and hot-key board cable from the connectors on the system board.

9 Using a plastic scribe, carefully pry out the palm-rest assembly along the rear edge and then ease the palm-rest assembly from the computer base.

10 Lift the palm-rest assembly off the computer base.

11 Turn the palm-rest assembly over.

12 Remove the hot-key board (see "Removing the Hot-Key Board" on page 37).

13 Remove the power button board (see "Removing the Power Button Board" on page 41).

1 Follow the instructions in "Before You Begin" on page 9.

2 Replace the power button board (see "Replacing the Power Button Board" on page 42).

3 Replace the hot-key board (see "Replacing the Hot-Key Board" on page 38).

4 Align the tabs on the palm-rest assembly with the slots on the computer base and gently snap the palm-rest assembly in place.

5 Slide the power-button cable, touch-pad cable, and hot-key board cable into the connectors on the system board and press down on the connector latches to secure them.

6 Replace the five screws on the palm-rest assembly.

7 Replace the keyboard (see "Replacing the Keyboard" on page 29).

8 Turn the computer over and replace the ten screws at the bottom of the computer.

9 Follow the instructions from step 4 to step 5 in "Replacing the Optical Drive" on page 21.

10 Replace the module cover (see "Replacing the Module Cover" on page 18).

11 Replace the battery (see "Replacing the Battery" on page 16).

Removing the Hot-Key Board

Replacing the Hot-Key Board

Removing the Power Button Board

Replacing the Power Button Board

11

1 Follow the instructions in "Before You Begin" on page 9.

2 Remove the battery (see "Removing the Battery" on page 15).

3 Remove the module cover (see "Removing the Module Cover" on page 17).

4 Follow the instructions from step 4 to step 5 in "Removing the Optical Drive" on page 19.

5 Remove the keyboard (see "Removing the Keyboard" on page 27).

6 Remove the palm-rest assembly (see "Removing the Palm-Rest Assembly" on page 31).

7 Disconnect the two antenna cables from the Mini-Card(s).

8 Remove the screw that secures the Mini-Card(s) to the system board.

9 Lift the Mini-Card(s) off the computer base.

10 If you are removing the WLAN Mini-Card, detach it from the WLAN Mini-Card bracket.
