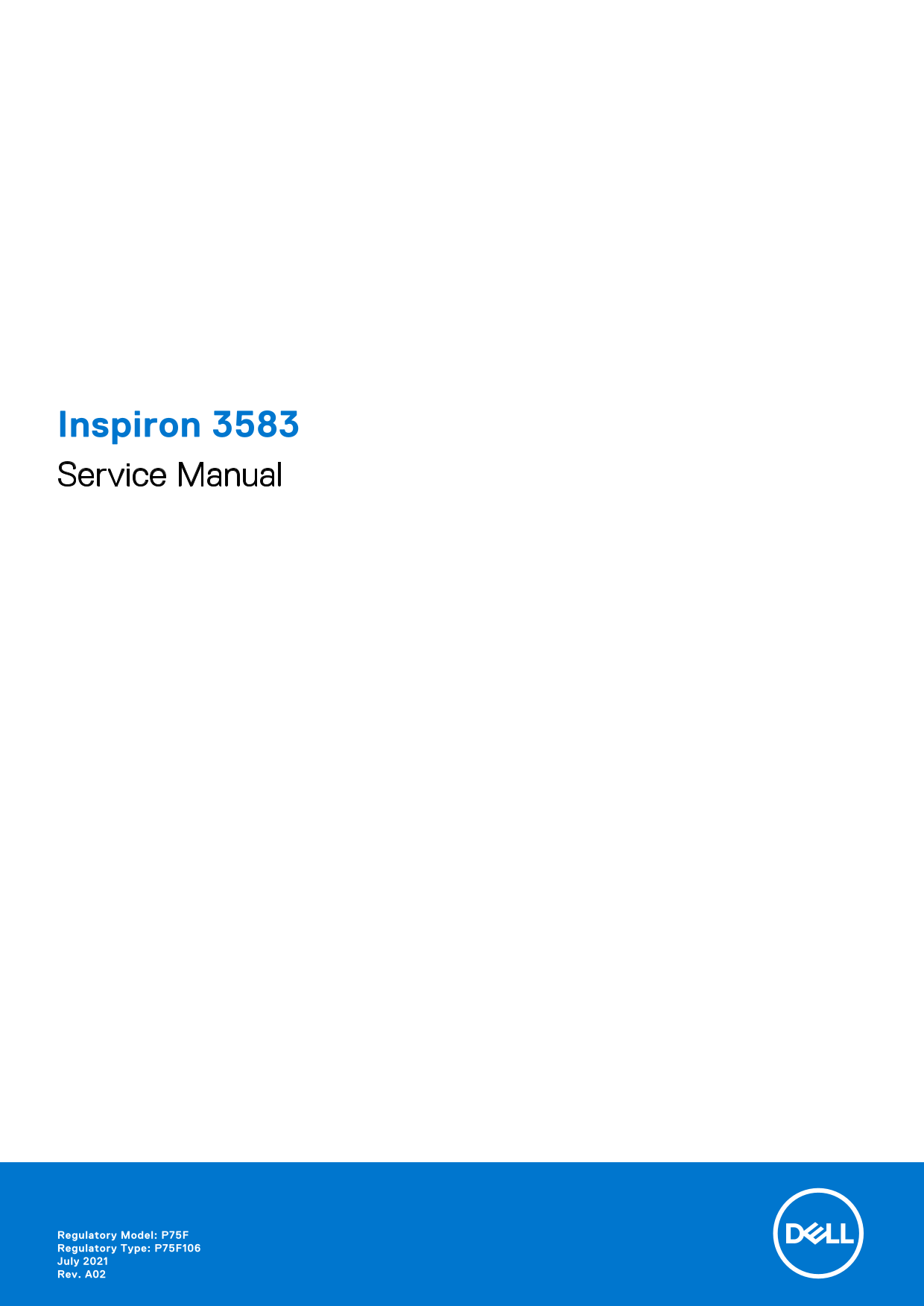

Inspiron 3583 Service Manual
Regulatory Model: P75F Regulatory Type: P75F106 July 2021 Rev. A02
Page Summary Contents For Dell Inspiron 3583 Service Manual
Page 1
Inspiron 3583 Service Manual Regulatory Model: P75F Regulatory Type: P75F106 July 2021 Rev. A02
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents Chapter 1: Before working inside your computer........................................................................... Before you begin .......................................................
Page 4
Procedure............................................................................................................................................................................29 Post-requisites....
Page 5
Chapter 25: Replacing the speakers............................................................................................ Procedure ..................................................................
Page 6
Chapter 36: Removing the system board..................................................................................... Prerequisites...................................................................
Page 7
Post-requisites...................................................................................................................................................................85 Chapter 48: Removin...
Page 8
Updating the BIOS from the F12 One-Time boot menu...................................................................................100 Chapter 56: Troubleshooting........................................
Page 9
Before working inside your computer NOTE: The images in this document may differ from your computer depending on the configuration you ordered. Before you begin 1. Save and close all open files and ex...
Page 10
After working inside your computer CAUTION: Leaving stray or loose screws inside your computer may severely damage your computer. 1. Replace all screws and ensure that no stray screws remain inside yo...
Page 11
Safety instructions Use the following safety guidelines to protect your computer from potential damage and to ensure your personal safety. Unless otherwise noted, each procedure included in this docum...
Page 12
Intermittent – Intermittent failures represent approximately 80 percent of ESD-related failures. The high rate of intermittent failures means that most of the time when damage occurs, it is not immedi...
Page 13
ESD protection summary It is recommended that all field service technicians use the traditional wired ESD grounding wrist strap and protective anti-static mat at all times when servicing Dell products...
Page 14
Recommended tools The procedures in this document may require the following tools: Phillips screwdriver #1 Flat-head screwdriver Plastic scribe Recommended tools
Page 15
Screw list NOTE: When removing screws from a component, it is recommended to note the screw type, the quantity of screws, and then place them in a screw storage box. This is to ensure that the correct...
Page 16
Table 1. Screw list (continued) Component Secured to Screw type Quantity Screw image I/O board Palm rest and keyboard M2x4 assembly Power-adapter port Palm rest and keyboard M2x3 assembly Power-button...
Page 17
Removing the base cover NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After workin...
Page 18
NOTE: The following steps are applicable only if you want to further remove any other component from your computer. 6. Disconnect the battery cable from the system board. 7. Press and hold the power b...
Page 19
Replacing the base cover NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After worki...
Page 20
Replacing the base cover
Page 21
Removing the battery NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After working i...
Page 22
Removing the battery
Page 23
Replacing the battery NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After working ...
Page 24
3. Connect the battery cable to the system board. Post-requisites Replace the base cover. Replacing the battery
Page 25
Removing the memory modules NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wo...
Page 26
Replacing the memory modules NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After w...
Page 27
Removing the wireless card NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wor...
Page 28
Removing the wireless card
Page 29
Replacing the wireless card NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wo...
Page 30
Removing the coin-cell battery NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After...
Page 31
Replacing the coin-cell battery NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. Afte...
Page 32
Removing the fan NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After working insid...
Page 33
Removing the fan
Page 34
Replacing the fan NOTE: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After working insi...
Page 35
Removing the solid-state drive/Intel Optane You need to disable the Intel Optane device before removing it from your computer. For more information about disabling the Intel Optane device, see Disabli...
Page 36
Replacing the solid-state drive/Intel Optane Enable the Intel Optane device after you replace it. For more information about enabling the Intel Optane device, see Enabling Intel Optane memory. NOTE: B...
Page 37
Removing the hard drive If your computer is using a SATA storage device accelerated by Intel Optane memory, disable Intel Optane before removing the SATA storage device. For more information about dis...
Page 38
5. Remove the four screws (M3x3) that secure the hard-drive bracket to the hard drive. 6. Lift the hard-drive bracket off the hard drive. Removing the hard drive
Page 39
Replacing the hard drive Enable Intel Optane after replacing the SATA storage. For more information about enabling the Intel Optane, see Enabling Intel Optane. NOTE: Before working inside your compute...
Page 40
Post-requisites 1. Replace the battery. 2. Replace the base cover. Replacing the hard drive
