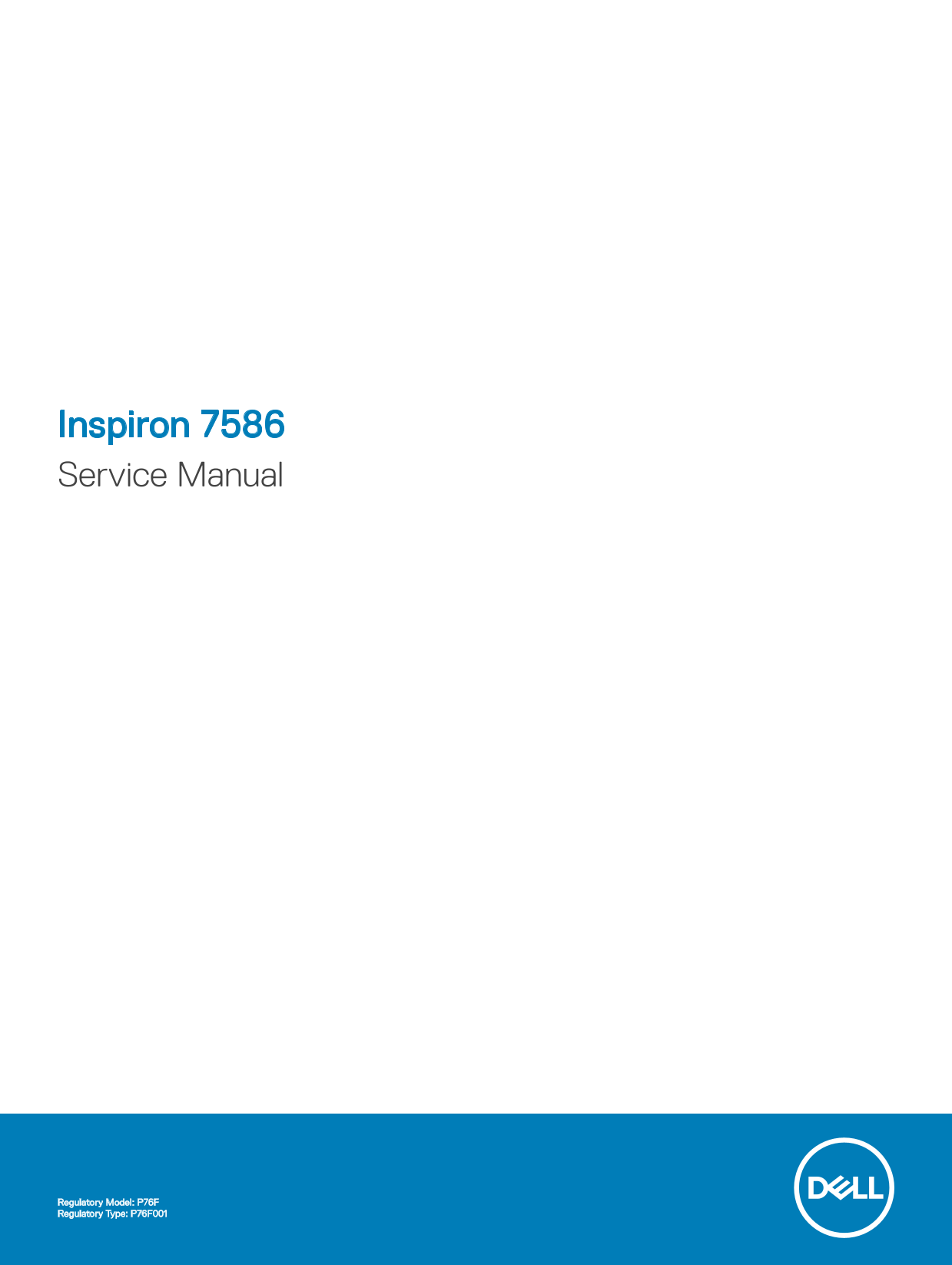

Inspiron 7586 Service Manual
Regulatory Model: P76F Regulatory Type: P76F001
Page Summary Contents For Dell Inspiron 7586 Service Manual
Page 1
Inspiron 7586 Service Manual Regulatory Model: P76F Regulatory Type: P76F001
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents 1 Before working inside your computer............................................................................................................. Before you begin ..............................
Page 4
Procedure..........................................................................................................................................................................25 Post-requisites......
Page 5
25 Replacing the wireless card........................................................................................................................43 Procedure.........................................
Page 6
Procedure......................................................................................................................................................................... 37 Replacing the touc...
Page 7
Procedure..........................................................................................................................................................................78 49 Replacing the d...
Page 8
Before working inside your computer NOTE: The images in this document may differ from your computer depending on the configuration you ordered. Before you begin 1 Save and close all open files and exi...
Page 9
After working inside your computer CAUTION: Leaving stray or loose screws inside your computer may severely damage your computer. 1 Replace all screws and ensure that no stray screws remain inside you...
Page 10
Safety instructions Use the following safety guidelines to protect your computer from potential damage and ensure your personal safety. WARNING: Before working inside your computer, read the safety in...
Page 11
Handle all static-sensitive components in a static-safe area. If possible, use anti-static floor pads and workbench pads. When unpacking a static-sensitive component from its shipping carton, do not r...
Page 12
Transporting sensitive components When transporting ESD sensitive components such as replacement parts or parts to be returned to Dell, it is critical to place these parts in anti-static bags for safe...
Page 13
Recommended tools The procedures in this document may require the following tools: Philips screwdriver #1 Flat-head screwdriver Plastic scribe Recommended tools
Page 14
Screw list Table 1. Screw list Component Secured to Screw type Quantity Screw image Base cover Palm-rest assembly M2x5 Battery Palm-rest assembly M2x3 Wireless-card bracket System board M2x3 Hard-driv...
Page 15
Removing the base cover WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wor...
Page 16
NOTE: The following step is applicable only if you want to further remove any other component from your computer. 5 Disconnect the battery cable from the system board. Removing the base cover
Page 17
Replacing the base cover WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wo...
Page 18
4 Tighten the three captive screws that secure the base cover to the palm-rest assembly. 5 Replace the six screws (M2x5) that secure the base cover to the palm-rest assembly. Replacing the base cover
Page 19
Removing the battery WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After workin...
Page 20
Replacing the battery WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After worki...
Page 21
Removing the memory modules WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After...
Page 22
Replacing the memory modules WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. Afte...
Page 23
Post-requisites Replace the base cover. Replacing the memory modules
Page 24
Removing the coin-cell battery WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. Af...
Page 25
Replacing the coin-cell battery WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. A...
Page 26
Removing the fan WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After working in...
Page 27
Replacing the fan WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After working i...
Page 28
Removing the heat sink WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After work...
Page 29
Replacing the heat sink WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wor...
Page 30
Removing the hard drive WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wor...
Page 31
5 Remove the four screws (M3x3) that secure the hard-drive bracket to the hard drive. 6 Lift the hard drive off the hard-drive bracket. Removing the hard drive
Page 32
Replacing the hard drive WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wo...
Page 33
Post-requisites 1 Replace the battery. 2 Replace the base cover. Replacing the hard drive
Page 34
Removing the solid-state drive/Intel Optane memory module You need to disable the Intel Optane memory before removing Intel Optane memory module from your computer. For more information about disablin...
Page 35
Removing the solid-state drive/Intel Optane memory module
Page 36
Replacing the solid-state drive/Intel Optane memory module Enable the Intel Optane memory after you replace the Intel Optane memory module. For more information about enabling the Intel Optane memory,...
Page 37
Enable the Intel Optane memory after you replace the Intel Optane memory module. For more information about enabling the Intel Optane memory, see Enabling Intel Optane memory. Procedure to move the sc...
Page 38
Replacing the solid-state drive/Intel Optane memory module
Page 39
Removing the speakers WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After worki...
Page 40
Replacing the speakers WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After work...
