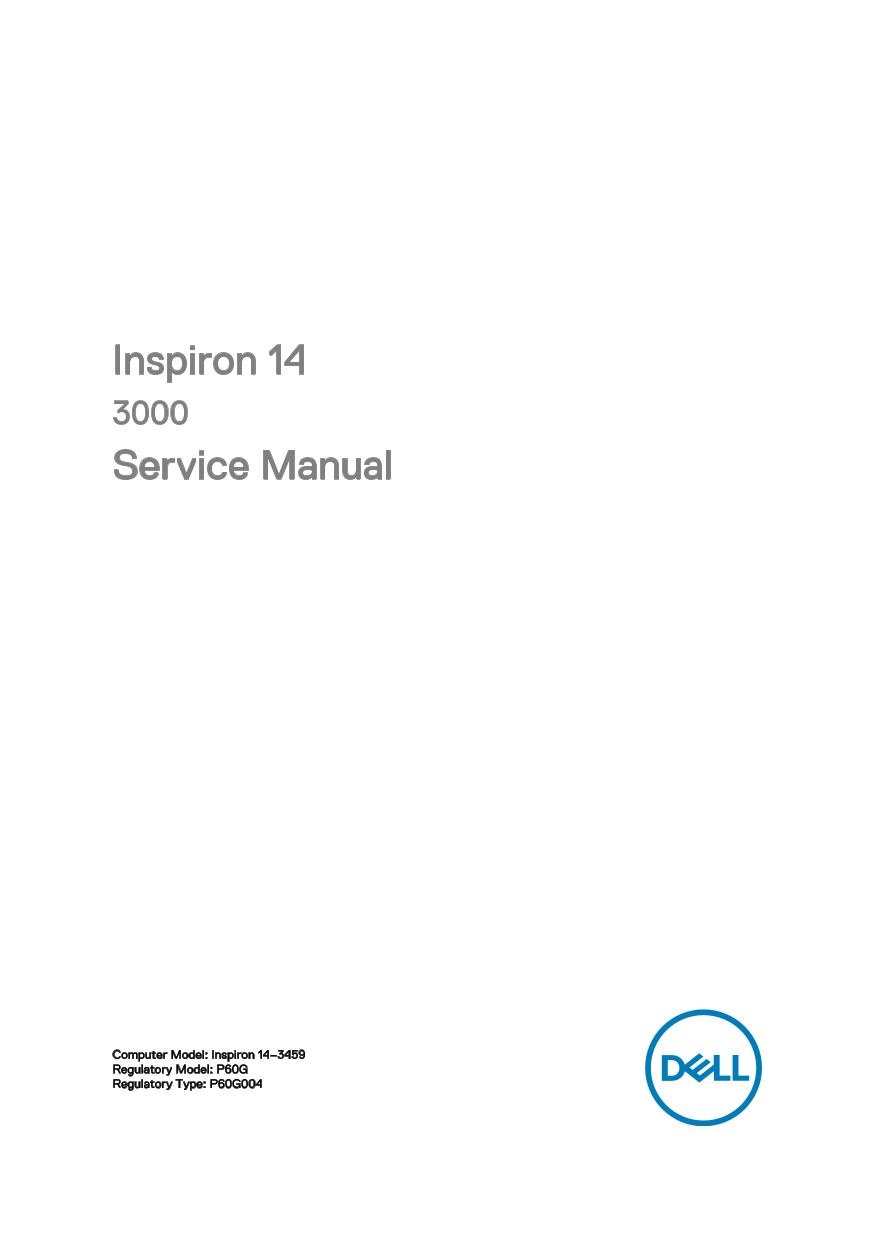

Inspiron 14
Service Manual
Computer Model: Inspiron 14–3459 Regulatory Model: P60G Regulatory Type: P60G004
Page Summary Contents For Dell Inspiron 143000 Service Manual
Page 1
Inspiron 14 Service Manual Computer Model: Inspiron 14–3459 Regulatory Model: P60G Regulatory Type: P60G004
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents Before working inside your computer........................... Before you begin .....................................................................................10 Safety instructions.......
Page 4
Removing the memory modules................................... Prerequisites........................................................................................... Procedure..........................
Page 5
Removing the touch pad..............................................39 Prerequisites........................................................................................... Procedure..................
Page 6
Removing the system board........................................ Prerequisites........................................................................................... Procedure.......................
Page 7
Removing the display assembly................................... Prerequisites........................................................................................... Procedure........................
Page 8
Removing the display back-cover................................ Prerequisites........................................................................................... Procedure.........................
Page 9
Flashing the BIOS........................................................ Getting help and contacting Dell..................................95 Self-help resources.........................................
Page 10
Before working inside your computer NOTE: The images in this document may differ from your computer depending on the configuration you ordered. Before you begin 1 Save and close all open files and exi...
Page 11
WARNING: Disconnect all power sources before opening the computer cover or panels. After you finish working inside the computer, replace all covers, panels, and screws before connecting to the electri...
Page 12
After working inside your computer CAUTION: Leaving stray or loose screws inside your computer may severely damage your computer. 1 Replace all screws and ensure that no stray screws remain inside you...
Page 13
Removing the battery WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After workin...
Page 14
Replacing the battery WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After worki...
Page 15
Removing the base cover WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wor...
Page 16
2 Using your fingertips, gently pry the base cover and remove it from the computer base. computer base screws (2) base cover
Page 17
Replacing the base cover WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wo...
Page 18
Removing the hard drive WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wor...
Page 19
3 Lift the hard-drive assembly off the computer base. screws (4) hard-drive assembly hard-drive cable latch 4 Remove the screws that secure the hard-drive bracket to the hard drive. 5 Lift the hard-dr...
Page 20
6 Disconnect the interposer from the hard drive. screws (4) hard-drive bracket hard drive interposer
Page 21
Replacing the hard drive WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wo...
Page 22
Removing the memory modules WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After...
Page 23
2 Slide and remove the memory module from the memory-module slot. securing clips (2) memory module
Page 24
Replacing the memory modules WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. Afte...
Page 25
2 Slide the memory module firmly into the slot and press the memory module down until it clicks into place. NOTE: If you do not hear the click, remove the memory module and reinstall it. notch memory ...
Page 26
Removing the wireless card WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After ...
Page 27
3 Slide and remove the wireless card from the wireless-card slot. antenna cables (2) wireless card screw notch tab wireless-card slot
Page 28
Replacing the wireless card WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After...
Page 29
Removing the keyboard WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After worki...
Page 30
2 Carefully turn the keyboard over and place it on the palm-rest assembly. tabs (5) plastic scribe keyboard palm-rest assembly 3 Open the latch and disconnect the keyboard cable from the system board.
Page 31
4 Lift the keyboard, along with its cable, off the palm-rest assembly. latch keyboard cable keyboard palm-rest assembly
Page 32
Replacing the keyboard WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After work...
Page 33
Removing the palm rest WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After work...
Page 34
2 Open the latches and disconnect the touch-pad cable and power-button cable from the system board. power-button cable screws (5) palm-rest assembly computer base touch-pad cable latches (2) 3 Close t...
Page 35
5 Disconnect the speaker cable from the system board. screws (8) computer base speaker cable
Page 36
6 Lift the computer base and, using a plastic scribe, pry the palm-rest assembly off the computer base. computer base palm-rest assembly plastic scribe 7 Turn the computer over and open the display as...
Page 37
8 Lift the palm-rest assembly at an angle and remove it from the computer base. palm-rest assembly computer base 9 Remove the touch pad. 10 Remove the power-button board. 11 Remove the speakers.
Page 38
Replacing the palm rest WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wor...
Page 39
Removing the touch pad WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After work...
Page 40
3 Lift the touch-pad bracket off the palm-rest assembly. touch-pad bracket screws (3) 4 Open the latch and disconnect the touch-pad cable from the touch pad. 5 Peel off the tape that secures the touch...
