Dell Inspiron 13 7000 series 2-in-1 Service Manual
Summary
The Dell Inspiron 13-7368 7000 Series 2-in-1 Service Manual with regulatory model P69G provides repair instructions for this 13-inch convertible laptop. It covers safety procedures, recommended tools, and detailed removal and replacement steps for the base cover, battery, hard drive, memory modules, wireless card, and system board. Service technicians can follow the prerequisite-based disassembly workflow for each component on the Inspiron 7368 convertible.
Page 1 Text Content
Inspiron 13 7000 series 2-in-1 Service Manual
Computer Model: Inspiron 13-7368 Regulatory Model: P69G Regulatory Type: P69G001
Page Summary Contents For Dell Inspiron 13 7000 series 2-in-1 Service Manual
Page 1

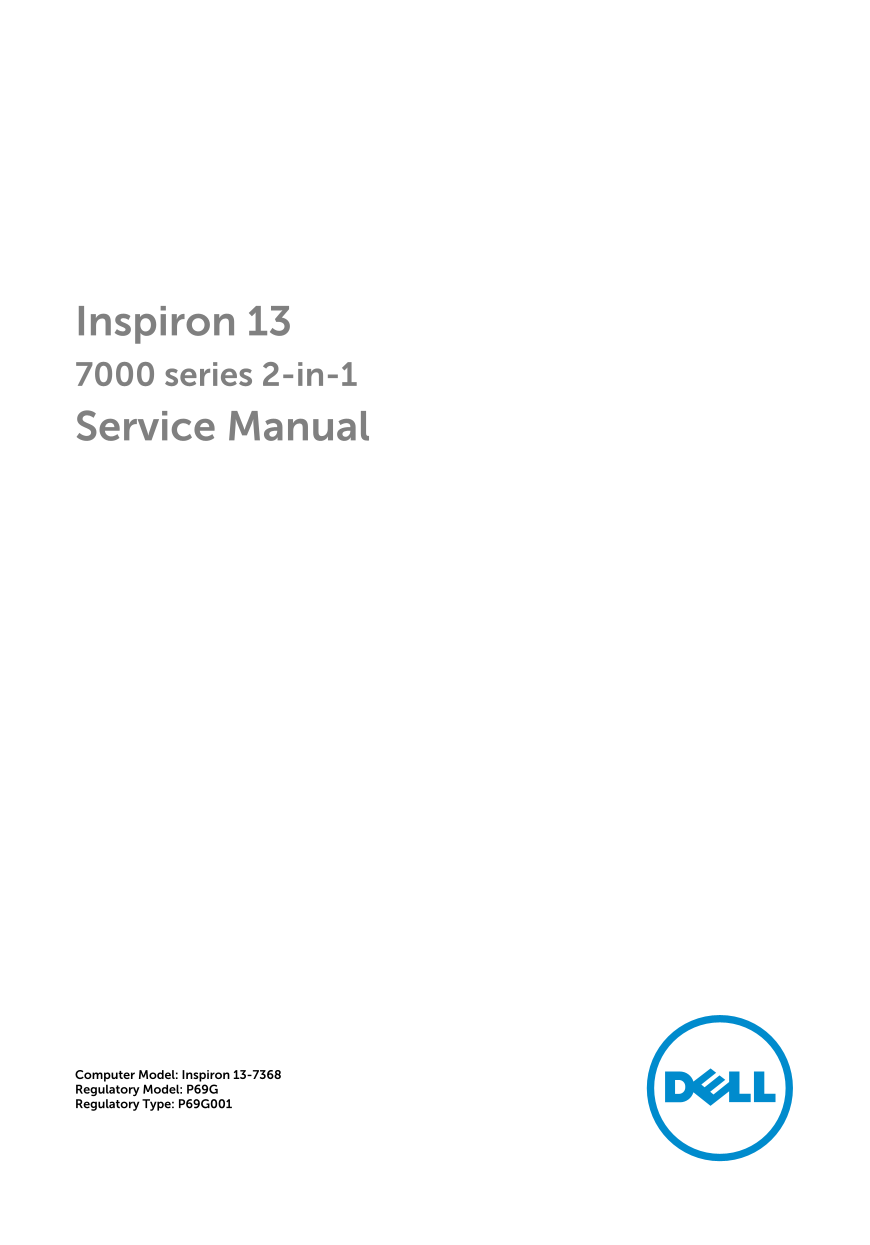

Inspiron 13 7000 series 2-in-1 Service Manual Computer Model: Inspiron 13-7368 Regulatory Model: P69G Regulatory Type: P69G001
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your computer. CAUTION: A CAUTION indicates either potential damage to hardware or loss of ...
Page 3
Contents Before working inside your computer...................................12 Before you begin .............................................................................................12 Safet...
Page 4
Removing the solid-state drive...............................................29 Prerequisites.....................................................................................................29 Pro...
Page 5
Removing the speakers............................................................ Prerequisites.....................................................................................................43 P...
Page 6
Removing the power and volume-buttons board.............. Prerequisites.....................................................................................................55 Procedure...................
Page 7
Removing the display assembly..............................................70 Prerequisites.....................................................................................................70 Proce...
Page 8
Removing the display panel.................................................... Prerequisites.................................................................................................... Procedu...
Page 9
Removing the sensor board.................................................. Prerequisites...................................................................................................103 Procedur...
Page 10
Setting up the wireless display.................................................................116 USB....................................................................................................
Page 11
Identifying the processors in Windows...................................................129 Checking the processor usage in the task manager..............................130 Operating System.............
Page 12
Before working inside your computer NOTE: The images in this document may differ from your computer depending on the configuration you ordered. Before you begin 1 Save and close all open files and exi...
Page 13
WARNING: Before working inside your computer, read the safety information that shipped with your computer. For more safety best practices, see the Regulatory Compliance home page at www.dell.com/regul...
Page 14
Plastic scribe
Page 15
After working inside your computer CAUTION: Leaving stray or loose screws inside your computer may severely damage your computer. 1 Replace all screws and ensure that no stray screws remain inside you...
Page 16
Removing the base cover WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wor...
Page 17
2 Remove the screws that secure the base cover to the palm-rest assembly. screws (9) base cover palm-rest assembly
Page 18
3 Using a plastic scribe, release the tabs that secure the base cover to the palm-rest assembly and remove the base cover off the palm-rest assembly. plastic scribe palm-rest assembly base cover
Page 19
Replacing the base cover WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wo...
Page 20
Removing the battery WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After workin...
Page 21
3 Lift the battery off the palm-rest assembly. system board battery cable screws (4) palm-rest assembly battery 4 Press and hold the power button for five seconds to ground the system board.
Page 22
Replacing the battery WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After worki...
Page 23
Removing the memory modules WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After...
Page 24
Procedure 1 Lift the Mylar to access the memory module. memory module Mylar 2 Use your fingertips to carefully spread apart the securing-clips on each end of the memory-module slot until the memory mo...
Page 25
3 Remove the memory module from the memory-module slot. securing clips (2) memory module memory-module slot
Page 26
Replacing the memory modules WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. Afte...
Page 27
3 Slide the memory module firmly into the slot at an angle and press the memory module down until it clicks into place. NOTE: If you do not hear the click, remove the memory module and reinstall it. m...
Page 28
2 Replace the base cover.
Page 29
Removing the solid-state drive WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. Af...
Page 30
2 Slide and remove the solid-state drive off the system board. screw solid-state drive solid-state drive slot system board palm-rest assembly
Page 31
Replacing the solid-state drive WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. A...
Page 32
2 Press the other end of the solid-state drive and replace the screw that secures the solid-state drive to the palm-rest assembly. screw solid-state drive solid-state drive slot system board palm-rest...
Page 33
Removing the coin-cell battery WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. Af...
Page 34
2 Peel the coin-cell battery off the palm-rest assembly. I/O board coin-cell battery cable coin-cell battery palm-rest assembly
Page 35
Replacing the coin-cell battery WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. A...
Page 36
Removing the wireless card WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After ...
Page 37
3 Slide and remove the wireless card from the wireless-card slot. screw wireless-card bracket wireless-card slot wireless card antenna cables (2)
Page 38
Replacing the wireless card WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After...
Page 39
5 Replace the screw that secures the wireless card bracket to the wireless card. tab notch wireless-card slot wireless card antenna cables (2) wireless card bracket screw Post-requisites 1 Replace the...
Page 40
Removing the keyboard daughter-board WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your comput...
