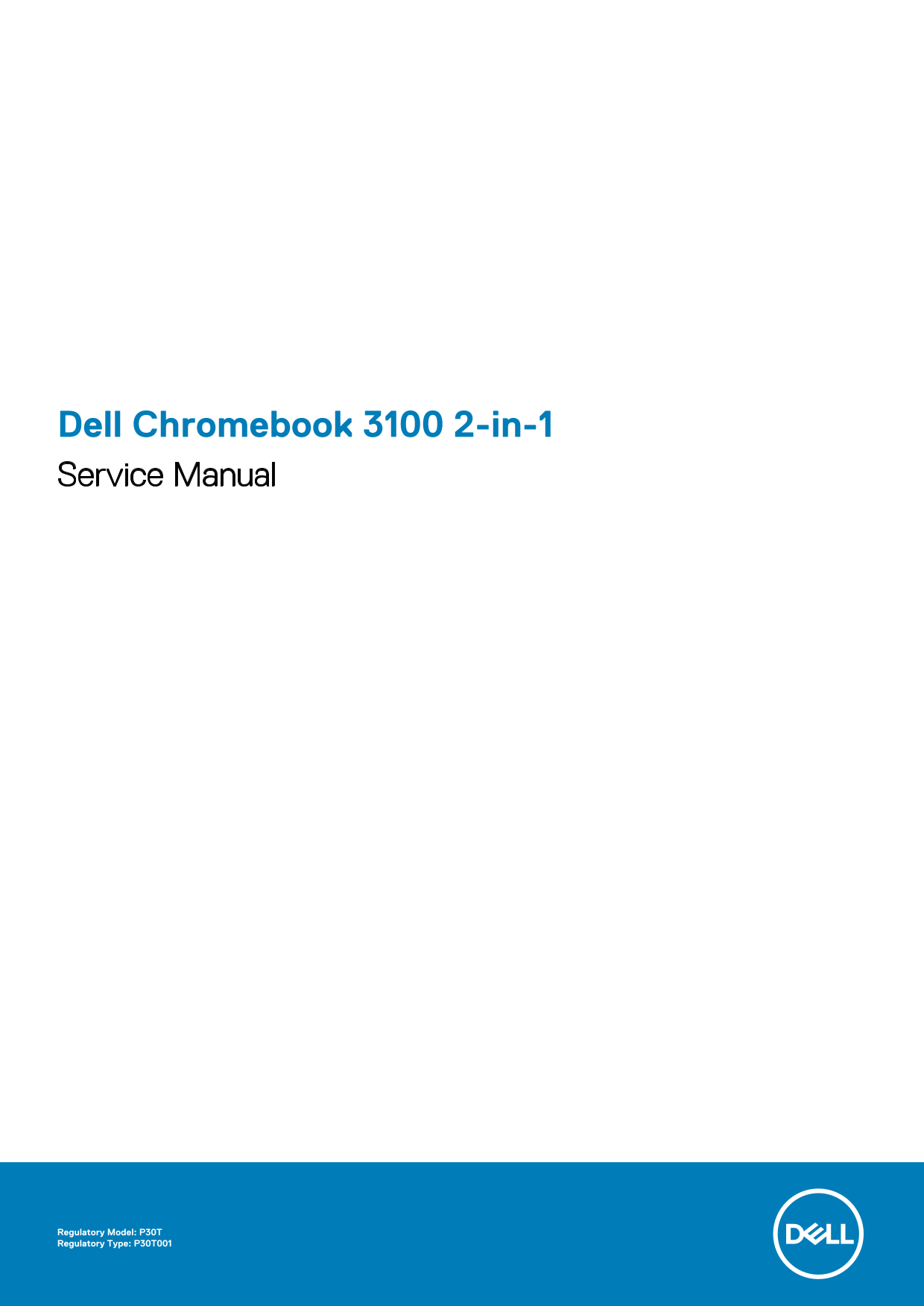

Dell Chromebook 3100 2-in-1 Service Manual Regulatory Model: P30T Regulatory Type: P30T001
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents 1 Working on your computer............................................................................................................ Safety instructions........................................
Page 4
Display panel-Touch............................................................................................................................................................56 Removing display panel...
Page 5
Working on your computer Safety instructions Prerequisites Use the following safety guidelines to protect your computer from potential damage and to ensure your personal safety. Unless otherwise noted...
Page 6
1. Connect the Chromebooks to a charger and a power source, which will get them out of the battery disconnect state. Power up your device. 2. Connect your Chromebooks to Wi Fi and update them to the l...
Page 7
Technology and components NOTE: Instructions provided in this section are applicable on computers shipped with Windows 10 operating system. Windows 10 is factory-installed with this computer. Topics: ...
Page 8
USB 3.0/USB 3.1 Gen 1 achieves the much higher performance by the technical changes below: An additional physical bus that is added in parallel with the existing USB 2.0 bus (refer to the picture belo...
Page 9
Keyboard Dell keyboards have a few extra features to help you browse the web effortlessly and efficiently. The keyboard contains a dedicated search key and a new row of web shortcut keys. A standard U...
Page 10
Shortcut keys Page down Press Alt and the down arrow Home Press Ctrl+Alt, and the up arrow End Press, Ctrl+Alt and the down arrow Delete Press Alt+Backspace Toggle the bookmark bar Ctrl+Shift+B Search...
Page 11
Touchpad gestures Place two fingers on the touchpad and move them up and down to scroll vertically, left and right to scroll horizontally. If you have Australian scrolling enabled, move two fingers up...
Page 12
Major components of your system 1. Base cover 2. System board Major components of your system
Page 13
3. Battery 4. Speaker 5. Palmrest assembly 6. Display assembly 7. Input and output board 8. World facing camera NOTE: Dell provides a list of components and their part numbers for the original system ...
Page 14
Removing and Installing micro SD card Removing micro SD card Steps 1. Follow the procedure in Before working inside your computer. 2. Press in on the micro SD card [1] to release it from the computer....
Page 15
Next steps Follow the procedure in after working inside your computer. Base cover Removing the base cover Prerequisites 1. Follow the procedure in before working inside your computer. 2. Remove the mi...
Page 16
2. Pry the base cover from the edge using a plastic scribe [1, 2]. Removing and Installing
Page 17
NOTE: While removing the base cover, on-site technicians must take care to remove the base cover carefully. There are prying recess points next to the left and right hinges which ease the disassembly ...
Page 18
2. Tighten the nine captive screws to secure the base cover to the computer. Removing and Installing
Page 19
Next steps 1. Install the micro SD card. 2. Follow the procedure in after working inside your computer. Battery Lithium-ion battery precautions CAUTION: Exercise caution when handling Lithium-ion batt...
Page 20
Removing the battery Prerequisites 1. Follow the procedure in before working inside your computer 2. Remove the micro SD card. 3. Remove the base cover. CAUTION: During a service incident, it is possi...
Page 21
9. Pry the battery from the bottom edge [1] and remove the battery from the computer [2]. Removing and Installing
Page 22
Installing the battery Steps 1. Peel the protective film before installing the battery [1]. 2. Align the battery into the slot on the computer and press the battery on the upper left corner to fix it ...
Page 23
3. Replace the three (M2.0x4.0) screws to secure the battery to the palmrest [1]. Removing and Installing
Page 24
4. Affix the adhesive tape to the battery [2, 3]. 5. Reroute the battery cable and connect the cable to the connector on the system board [1, 2]. Removing and Installing
Page 25
6. Connect the AC adaptor into the device to recover the battery from cutoff mode. Next steps 1. Install the base cover. 2. Install the micro SD card. 3. Follow the procedure in after working inside y...
Page 26
5. Lift the speakers away from the computer. Removing and Installing
Page 27
Installing the speakers Steps 1. Place the speakers into the slots on the computer. Removing and Installing
Page 28
2. Reroute the speaker cable through the retention clips in the routing channel. Removing and Installing
Page 29
3. Connect the speaker cable to the connector on the system board [1]. 4. Affix the adhesive tapes to secure the speaker cable to the computer [2, 3]. Removing and Installing
Page 30
Next steps 1. Install the battery. 2. Install the base cover. 3. Install the micro SD card. 4. Follow the procedure in after working inside your computer. Input Output board Removing the Input and out...
Page 31
3. Remove the two (M2.0x4.0) screws that secure the IO board bracket to the IO board [1]. 4. Use a plastic scribe to lift the IO board bracket away from the palmrest [2]. Removing and Installing
Page 32
5. Remove the two (M2.0x4.0) screws that secure the IO board to the palmrest [1]. 6. Lift the IO board away from the computer [2]. Installing Input output board Steps 1. Place the IO board to its slot...
Page 33
3. Place the IO board bracket to its slot and replace the two (M2.0x4.0) screws that secure the bracket to the IO board [1, 2]. 4. Connect the Type-C power cable to the connector on the IO board [1]. ...
Page 34
5. Connect the 30-pin and 40-pin IO board cables and close the latch to secure it to the IO board [2]. Next steps 1. Install the battery. 2. Install the base cover. 3. Install the micro SD card. 4. Fo...
Page 35
3. Use a plastic scribe to release the keyboard from the two release holes in the system [2]. NOTE: The two release holes for the keyboard are indicated by the "KB" labeling. Removing and In...
Page 36
4. Turn the system over and carefully lift the keyboard and then pull the keyboard cable through the gap in the palm rest. 5. Lift and pull the keyboard out from the computer. Removing and Installing
Page 37
Installing the keyboard Steps 1. Align the keyboard trim with the tabs on the system, and carefully lift the keyboard slightly and insert the keyboard cable through the gap on the palm rest [1, 2] 2. ...
Page 38
3. Pull the keyboard cable from the gap in the palmrest and connect it to the connector on the system board. Removing and Installing
Page 39
Next steps 1. Install the battery. 2. Install the base cover. 3. Install the micro SD card. 4. Follow the procedure in after working inside your computer. System board Removing the system board Prereq...
Page 40
3. Remove the single (M2x3) screw that secures the WLAN bracket to the system board [1], and lift the WLAN bracket from the system board [2]. 4. Disconnect the two wireless antennas from the connector...
