Page 1

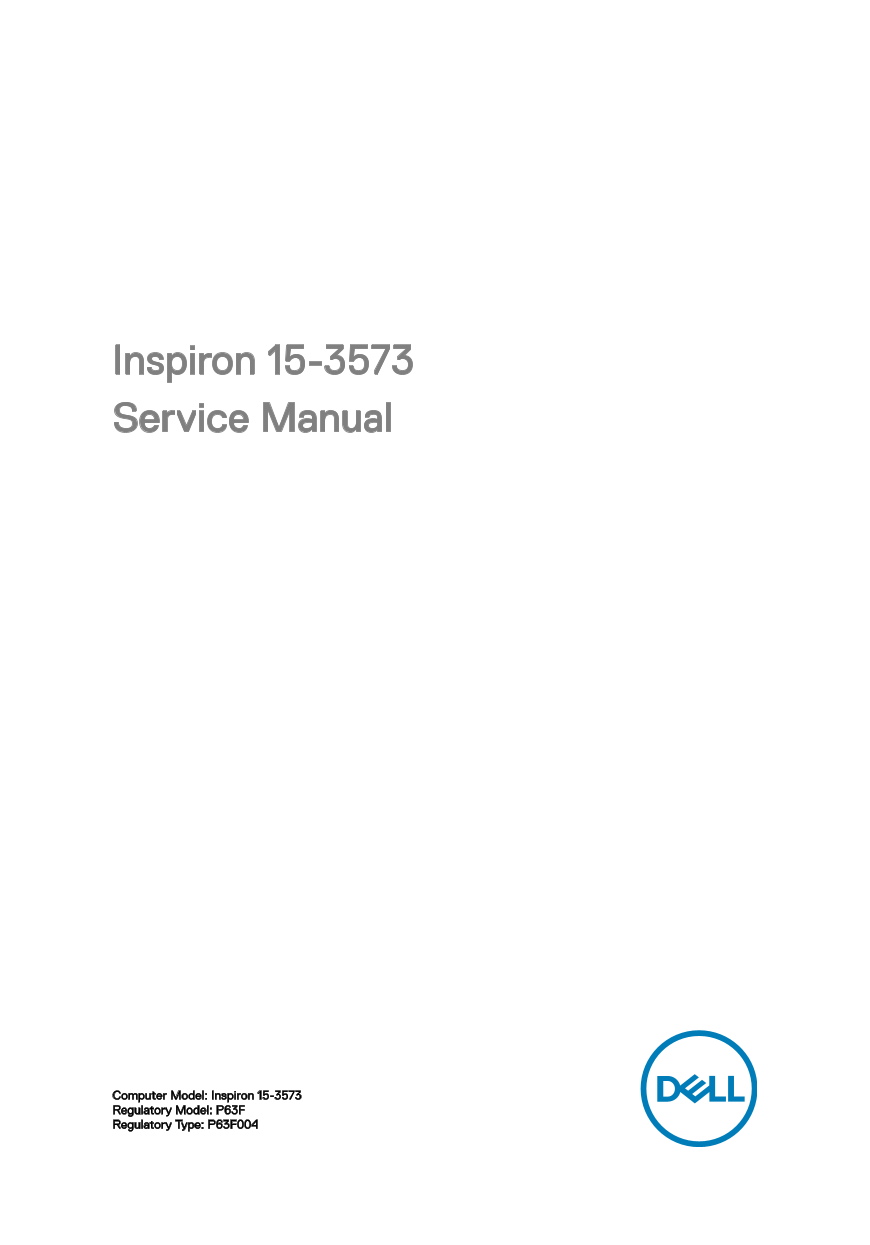

Inspiron 15-3573 Service Manual Computer Model: Inspiron 15-3573 Regulatory Model: P63F Regulatory Type: P63F004
Page 2
Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
Page 3
Contents Before working inside your computer........................... Before you begin ..................................................................................... Safety instructions.........
Page 4
Replacing the keyboard...............................................26 Procedure...............................................................................................26 Post-requisites.........
Page 5
Replacing the memory modules...................................44 Procedure...............................................................................................44 Post-requisites...............
Page 6
Replacing the I/O board...............................................61 Procedure............................................................................................... Post-requisites..........
Page 7
Replacing the status-light lens.................................... Post-requisites........................................................................................73 Procedure....................
Page 8
Replacing the display assembly................................... Procedure...............................................................................................92 Post-requisites...............
Page 9
Replacing the display hinges...................................... Post-requisites......................................................................................105 Procedure......................
Page 10
System setup............................................................. Boot Sequence......................................................................................115 Navigation keys...........
Page 11
Before working inside your computer NOTE: The images in this document may differ from your computer depending on the configuration you ordered. Before you begin 1 Save and close all open files and exi...
Page 12
CAUTION: To avoid damaging the components and cards, handle them by their edges, and avoid touching pins and contacts. CAUTION: You should only perform troubleshooting and repairs as authorized or dir...
Page 13
Screw list The following table provides the list of screws that are used for securing different components to the palm-rest assembly. Table 1. Screw list Component Secured to Screw type Quantity Screw...
Page 14
Component Secured to Screw type Quantity Screw image I/O board Palm-rest M2x3 assembly Fan System board M2x5 System board Palm-rest M2x3 assembly Touch-pad Touch pad M2x3 bracket Power-adapter Palm-re...
Page 15
After working inside your computer CAUTION: Leaving stray or loose screws inside your computer may severely damage your computer. 1 Replace all screws and ensure that no stray screws remain inside you...
Page 16
Removing the battery WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After workin...
Page 17
3 Turn the computer over, open the display, and press the power button for five seconds to ground the system board.
Page 18
Replacing the battery WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After worki...
Page 19
Removing the optical drive WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After ...
Page 20
3 Pull the optical-drive assembly out of the optical-drive bay. 4 Remove the screw (M2x3) that secures the optical-drive bracket to the optical drive. NOTE: Note the orientation of the optical-drive b...
Page 21
5 Remove the optical-drive bracket from the optical drive. 6 Carefully pull the optical-drive bezel and remove it from the optical drive.
Page 22
Replacing the optical drive WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After...
Page 23
Removing the keyboard WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After worki...
Page 24
4 Carefully turn the keyboard over and place it on the palm-rest assembly. 5 Open the latch and disconnect the keyboard cable from the system board.
Page 25
6 Lift the keyboard off the palm-rest assembly.
Page 26
Replacing the keyboard WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After work...
Page 27
Removing the base cover WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wor...
Page 28
2 Open the latch, and disconnect the optical-drive cable from the connector on the system board. 3 Close the display and the turn the computer over. 4 Remove the eight screws (M2.5x8) that secure the ...
Page 29
6 Remove the two screws (M2x5) that secure the base cover to the palm-rest assembly.
Page 30
7 Using a plastic scribe, pry the base cover off the palm-rest assembly. 8 Turn the base cover over.
Page 31
9 Remove the optical-drive interposer.
Page 32
Replacing the base cover WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wo...
Page 33
3 Place the base cover on the palm-rest assembly and route the optical-drive cable through the slot on the palm-rest assembly. 4 Slide the tabs on the base cover into the slots on the palm-rest assemb...
Page 34
9 Replace the two screws (M2x5) that secure the base cover to the palm-rest assembly. 10 Replace the eight screws (M2.5x8) that secure the base cover to the palm-rest assembly. Post-requisites 1 Repla...
Page 35
Removing the optical-drive interposer WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your compu...
Page 37
Replacing the optical-drive interposer WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your comp...
Page 38
Removing the hard drive WARNING: Before working inside your computer, read the safety information that shipped with your computer and follow the steps in Before working inside your computer. After wor...
Page 39
3 Lift the hard-drive assembly off the palm-rest assembly. 4 Disconnect the interposer from the hard-drive assembly. 5 Remove the four screws (M3x3) that secure the hard-drive bracket to the hard driv...
Page 40
6 Lift the hard drive off the hard-drive bracket.
