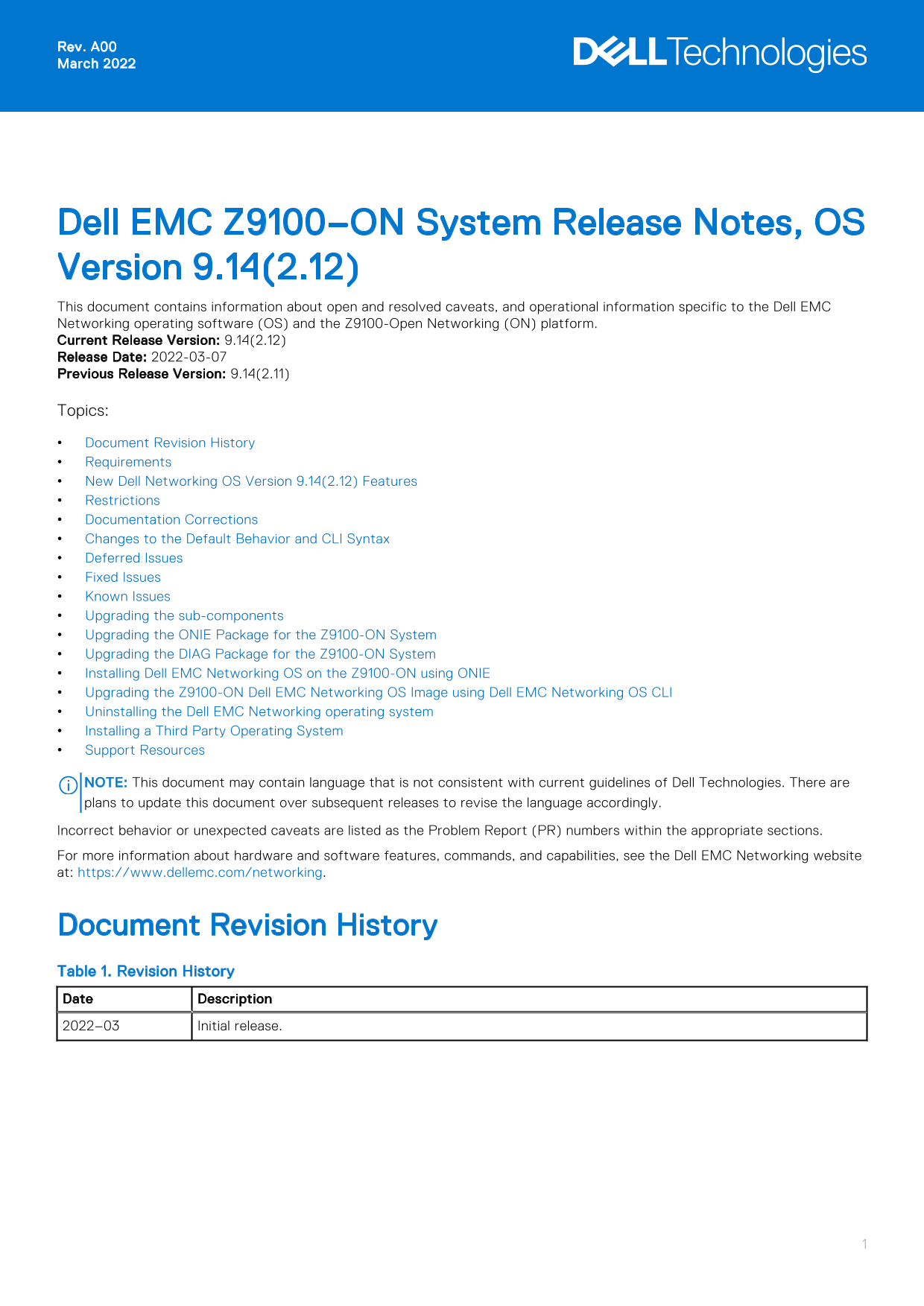

Dell EMC Z9100–ON System Release Notes, OS Version 9.14(2.12) This document contains information about open and resolved caveats, and operational information specific to the Dell EMC Networking operating software (OS) and the Z9100-Open Networking (ON) platform. Current Release Version: 9.14(2.12) Release Date: 2022-03-07 Previous Release Version: 9.14(2.11) Topics: Document Revision History Requirements New Dell Networking OS Version 9.14(2.12) Features Restrictions Documentation Corrections Changes to the Default Behavior and CLI Syntax Deferred Issues Fixed Issues Known Issues Upgrading the sub-components Upgrading the ONIE Package for the Z9100-ON System Upgrading the DIAG Package for the Z9100-ON System Installing Dell EMC Networking OS on the Z9100-ON using ONIE Upgrading the Z9100-ON Dell EMC Networking OS Image using Dell EMC Networking OS CLI Uninstalling the Dell EMC Networking operating system Installing a Third Party Operating System Support Resources

NOTE: This document may contain language that is not consistent with current guidelines of Dell Technologies. There are plans to update this document over subsequent releases to revise the language accordingly. Incorrect behavior or unexpected caveats are listed as the Problem Report (PR) numbers within the appropriate sections. For more information about hardware and software features, commands, and capabilities, see the Dell EMC Networking website at: https://www.dellemc.com/networking.

Document Revision History Table 1. Revision History Date Description 2022–03 Initial release.

Page Summary Contents For Dell EMC Z9100–ON System Release Notes, OS Version 9.14.2.12 Owner' s Manual

Page 1 Rev. A00 March 2022 Dell EMC Z9100–ON System Release Notes, OS Version 9.14(2.12) This document contains information about open and resolved caveats, and operational information specific to the Dell E...
Page 2 Requirements The following requirements apply to the Z9100-ON system. Hardware Requirements The following lists the Dell EMC Z9100-ON system hardware requirements: 10/25/40/50/100 Gb E switch Thirty t...
Page 3 b. Puppet c. Open management infrastructure (OMI) d. SNMP MIB Prerequisite steps to downgrade the Dell EMC Networking OS from 9.14.2.0 or later to the earlier version: 1. Uninstall the OA package of 9...
Page 4 1. From the ONIE menu, use the ONIE uninstall option to uninstall Dell EMC Networking OS 9.14(2.12). 2. Use the ONIE install option to install the older version of Dell EMC Networking OS. The systems ...
Page 5 Changes to the Default Behavior and CLI Syntax The following behavior and CLI changes are applicable to the Z9100–ON switch with Dell EMC Networking OS version 9.14(2.12): None Deferred Issues Issues ...
Page 6 Category Description S4 — Minor: A cosmetic issue or an issue in a minor feature with little or no network impact for which there might be a work-around. Synopsis Synopsis is the title or short descri...
Page 7 Category Description Release Notes Release Notes description contains more detailed information about the issue. Work around Work around describes a mechanism for circumventing, avoiding, or recoverin...
Page 8 reload 3. Verify the Boot Selector image. EXEC Privilege Mode show system stack-unit <id> Dell EMC#show system stack-unit 1 -- Unit 1 -- Unit Type : Management Unit Status : online Next Boot : o...
Page 9 Card Boot Flash Current Version New Version Unit1 Boot Flash 3.23.2.8 3.23.2.13 * Warning - Upgrading boot flash is inherently risky and should only * * be attempted when necessary. A failure at this ...
Page 10 Speed in RPM Dell EMC# Upgrade the CPLD The Z9100-ON system with Dell EMC Networking OS Version 9.14(2.12) requires System complex programmable logic device (CPLD) 1 revision 7, CPLD2 revision 4, CPLD...
Page 11 stack-unit 1 Z9100-ON OOB-FPGA 1.0 Dell EMC# Upgrading the CPLD Image NOTE: The upgrade fpga-image system cpld stack-unit 1 booted command is hidden when using the feature in the CLI. However, it is a...
Page 12 Z9100-ON CPLD 2 : 4 Z9100-ON CPLD 3 : 4 Z9100-ON CPLD 4 : 4 Z9100-ON MSS FPGA : 2.2 Z9100-ON MSS IAP : 2.5 Z9100-ON OOB-FPGA : 1.0 Dell EMC# NOTE: Do not power off the system while the FPGA upgrade is...
Page 13 Feb 21 16:23:12: %STKUNIT1-M:CP %CHMGR-5-FANTRAY_REMOVED: Major Alarm :Fan tray 3 of Unit 1 is removed Feb 21 16:23:12: %STKUNIT1-M:CP %CHMGR-5-FANTRAY_REMOVED: Major Alarm :Fan tray 4 of Unit 1 is re...
Page 14 * Warning - Upgrading FPGA is inherently risky and should * * only be attempted when necessary. A failure at this upgrade may * * cause a board RMA. Proceed with caution ! * Upgrade image for stack-un...
Page 15 CP Z9100-ON OOB-FPGA 0.7 1.0 * Warning - Upgrading FPGA is inherently risky and should * * only be attempted when necessary. A failure at this upgrade may * * cause a board RMA. Proceed with caution !...
Page 16 Use the ^ and v keys to select which entry is highlighted. Press enter to boot the selected OS, 'f' to boot FTOS, 'b' to go to BLI, 'o' to boot ONIE, 'd' to boot DIAG-OS, 'e' to edit the commands befo...
Page 17 The ONIE discovery stops, as shown: discover: ONIE update mode detected. Stopping: discover... done. ONIE:/ # 6. Configure an interface and assign an IP address to that interface using the following c...
Page 18 Upgrading the DIAG Package for the Z9100-ON System To upgrade the DIAG package, use one of the following two processes: Zero touch (dynamic): Copy the update ONIE installer for your system to the TFTP...
Page 19 The ONIE Installer mode is enabled and the ONIE prompt appears, as shown: ONIE: OS Install Mode ... Version : 3.23.1.0-7 Build Date: 2022-02-21T14:41-0700 Info: Mounting kernel filesystems... done. ER...
Page 20 Warning: The kernel is still using the old partition table. The new table will be used at the next reboot. The operation has completed successfully. volume label EDA-DIAG on device /dev/sda3 mke2fs 1....
Page 21 Use the ^ and v keys to select which entry is highlighted. Press enter to boot the selected OS, `e' to edit the commands before booting or `c' for a command-line. 4. From this menu, choose the ONIE : ...
Page 22 Stopping: discover... done. Info: Fetching tftp://10.16.127.86/ONIE-FTOS-Z9100-ON-9.14.2.12.bin ... ONIE-FTOS-Z9100-ON-9 100% |*******************************| 87118k 0:00:00 ETA ONIE: Executing insta...
Page 23 To downgrade Dell EMC Networking OS version 9.14(2.12) to versions earlier than 9.11(0.0P4), 9.11(0.1P1), or 9.11(0.2), follow these steps: 1. From the ONIE menu, use the ONIE uninstall option to unin...
Page 24 show boot system stack-unit [1-6] | all] Dell EMC#show boot system stack-unit all Current system image information in the system: Type Boot Type A B stack-unit 1 DOWNLOAD BOOT 9.14(2.12) 9.14(2.11) De...
Page 25 Uninstalling the Dell EMC Networking operating system To un-install the Dell EMC Networking OS version 9.14(2.12) from the Z9100-ON system, perform the following steps: 1. Reboot the system. During th...
Page 26 Starting: dropbear ssh daemon... done. Starting: telnetd... done. discover: Uninstall mode detected. Running uninstaller. Erasing internal mass storage device: /dev/sda4 (32MB) Percent complete: 100% ...
Page 27 Installing a Third Party Operating System Apart from the Dell EMC Networking OS, you can also install a supported third party operating system on the Z9100-ON system. For more information on installin...
Page 28 Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of d...
