Dell EMC System S4048-ON 9.14.2.12 Release Notes
Summary
Release notes for Dell EMC S4048-ON system running Networking OS version 9.14(2.12), released March 2022. Documents new features, resolved caveats, known issues, and restrictions for the 48-port SFP+ 10GbE and 6-port QSFP+ 40GbE open networking switch. Covers upgrade procedures for ONIE, DIAG packages, Dell Networking OS installation and uninstallation, and third-party OS deployment. Includes supported hardware (dual-core 1.7GHz CPU, dual AC/DC PSUs, three fan subsystems) and software requirements. Intended for data center and campus network administrators.

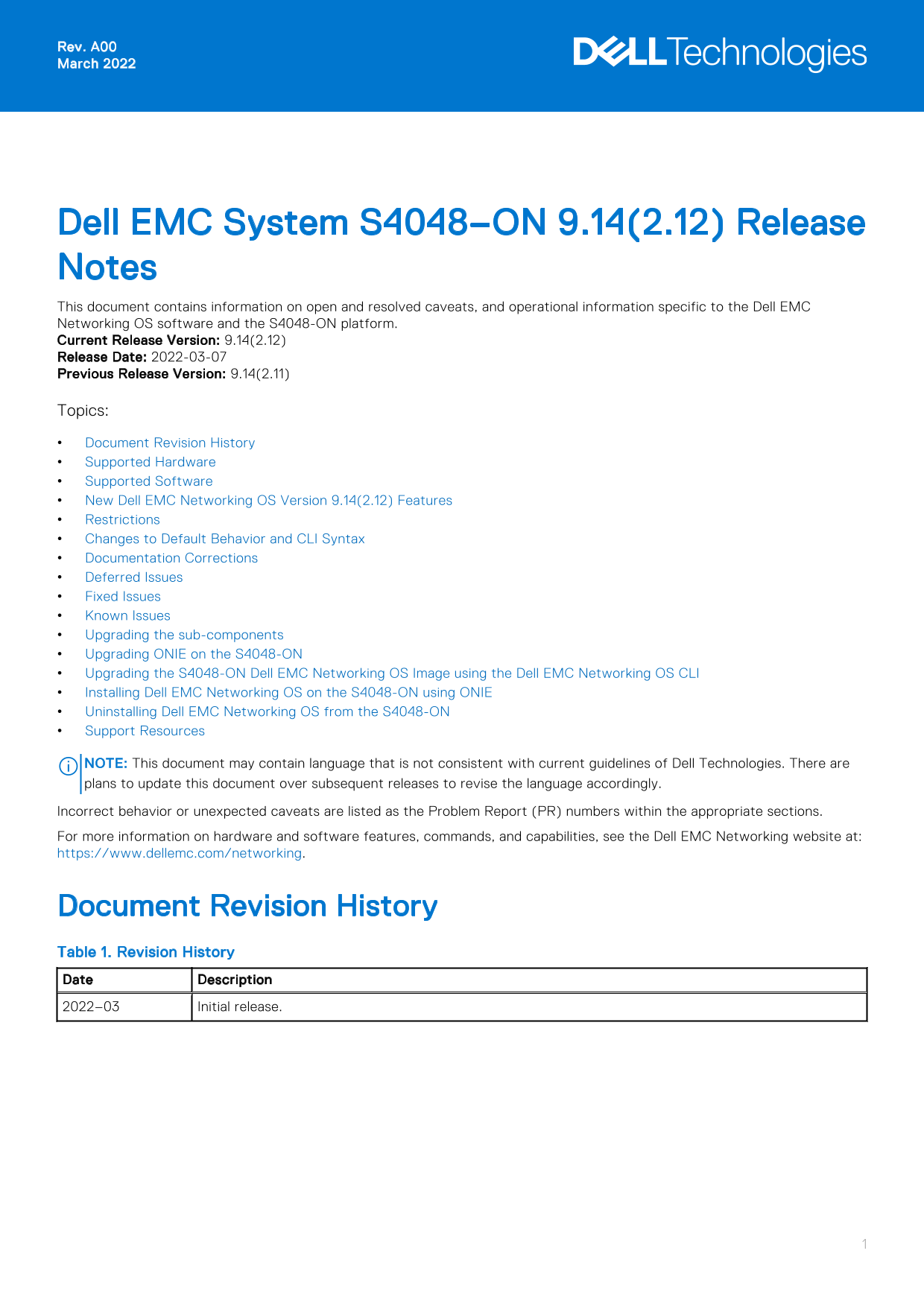

Page 1 Text Content
Rev. A00 March 2022
Dell EMC System S4048–ON 9.14(2.12) Release Notes This document contains information on open and resolved caveats, and operational information specific to the Dell EMC Networking OS software and the S4048-ON platform. Current Release Version: 9.14(2.12) Release Date: 2022-03-07 Previous Release Version: 9.14(2.11) Topics: Document Revision History Supported Hardware Supported Software New Dell EMC Networking OS Version 9.14(2.12) Features Restrictions Changes to Default Behavior and CLI Syntax Documentation Corrections Deferred Issues Fixed Issues Known Issues Upgrading the sub-components Upgrading ONIE on the S4048-ON Upgrading the S4048-ON Dell EMC Networking OS Image using the Dell EMC Networking OS CLI Installing Dell EMC Networking OS on the S4048-ON using ONIE Uninstalling Dell EMC Networking OS from the S4048-ON Support Resources
NOTE: This document may contain language that is not consistent with current guidelines of Dell Technologies. There are plans to update this document over subsequent releases to revise the language accordingly. Incorrect behavior or unexpected caveats are listed as the Problem Report (PR) numbers within the appropriate sections. For more information on hardware and software features, commands, and capabilities, see the Dell EMC Networking website at: https://www.dellemc.com/networking.
Document Revision History Table 1. Revision History Date Description 2022–03 Initial release.
Page Summary Contents For Dell EMC System S4048-ON 9.14.2.12 Release Notes
Manual Details
| Brand | Dell |
|---|---|
| Pages | 19 |
| File Size | 196.40 KB |
| Published | June 26, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What hardware is supported on the S4048-ON?
It supports 48 SFP+ ports (10 Gbps), six QSFP+ ports (40 Gbps), and includes PSUs, fan subsystems, serial console/USB ports, and a dual core 1.7GHz CPU.
What are the prerequisites for upgrading the Dell EMC Networking OS?
You must uninstall any older Open Automation (OA) packages, upgrade to version 9.14.2.0 or later, and then install the latest versions of OA components like SmartScripts and Puppet.
Why did my interface go down after adding a transceiver?
If you use non-Dell qualified 40G transceivers in a 40GbE port, the switch will place the interface in an error-disabled state. Use Dell certified optics for reliable operation.
How do I remove CDB files before downgrading the OS version?
First, save your current configuration, then execute: `DellEMC#delete flash://confd_cdb.tar.gz.version` followed by `DellEMC#delete flash://confd_cdb.tar.gz`, and finally `DellEMC#reload`.
