Statement of Volatility for Dell Latitude E7270/E7470 documents volatile and non-volatile memory components on the system board for security compliance. It identifies NV components including embedded controller flash (288KB), system BIOS flash (128MB), panel EEPROM (128 bytes), memory SPD EEPROM (512 bytes), and CMOS BBRAM (256 bytes), with remedial actions to prevent data retention. For security officers and compliance auditors managing data sanitization of these Latitude laptops.

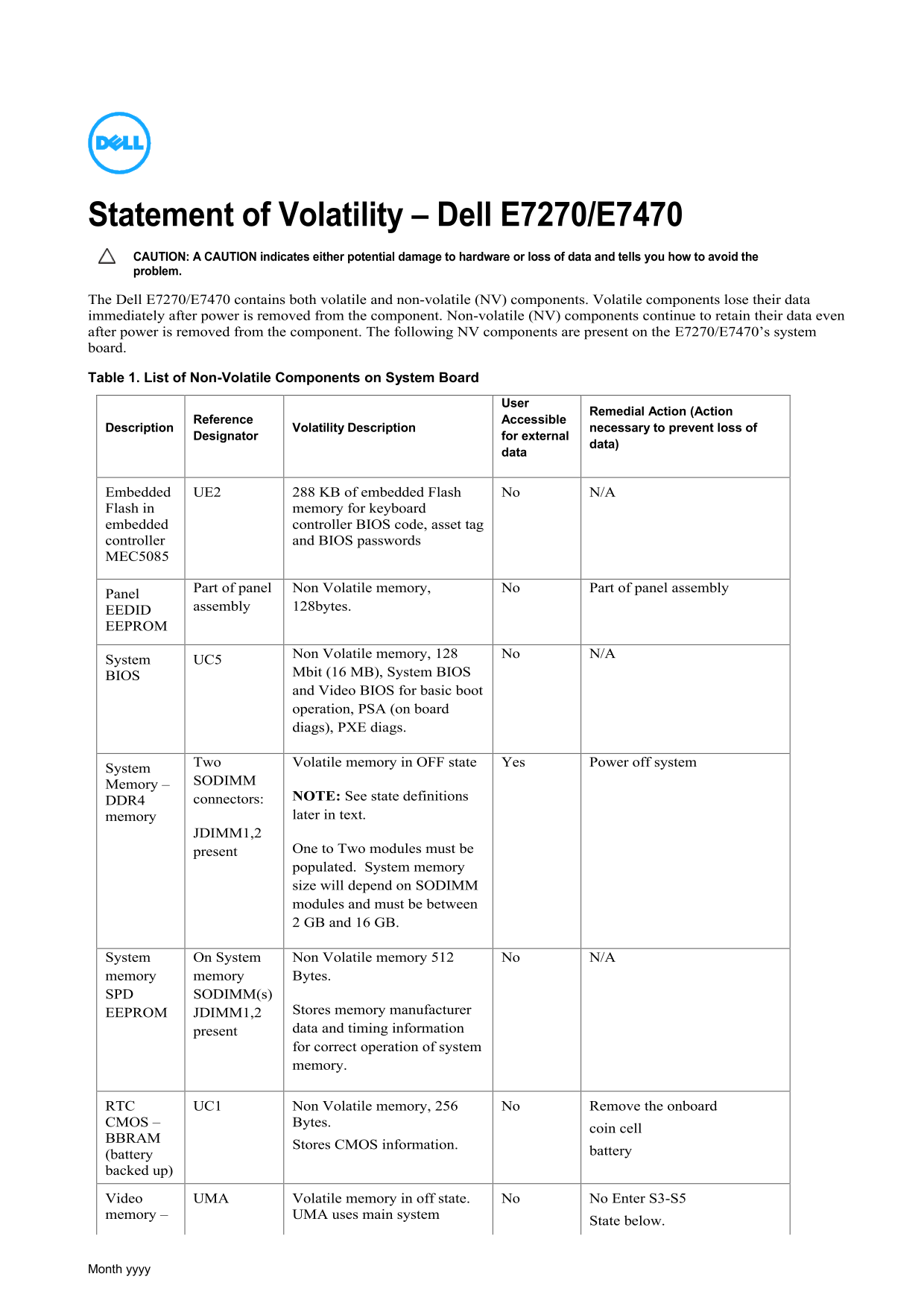

Page 1 Text Content
Statement of Volatility – Dell E7270/E7470 CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. The Dell E7270/E7470 contains both volatile and non-volatile (NV) components. Volatile components lose their data immediately after power is removed from the component. Non-volatile (NV) components continue to retain their data even after power is removed from the component. The following NV components are present on the E7270/E7470’s system board. Table 1. List of Non-Volatile Components on System Board
Remedial Action (Action
Reference Accessible
Description Volatility Description necessary to prevent loss of
Designator for external
data)
Embedded UE2 288 KB of embedded Flash No N/A Flash in memory for keyboard embedded controller BIOS code, asset tag controller and BIOS passwords MEC5085
Part of panel Non Volatile memory, No Part of panel assembly
Panel
assembly 128bytes.
EEDID EEPROM
No N/A
System UC5 Non Volatile memory, 128
Mbit (16 MB), System BIOS
and Video BIOS for basic boot operation, PSA (on board diags), PXE diags.
Two Volatile memory in OFF state Yes Power off system
System
SODIMM
Memory –
connectors: NOTE: See state definitions
memory later in text.
JDIMM1,2
present One to Two modules must be populated. System memory size will depend on SODIMM modules and must be between 2 GB and 16 GB.
System On System Non Volatile memory 512 No N/A memory memory Bytes. SPD SODIMM(s)
EEPROM JDIMM1,2 Stores memory manufacturer present data and timing information for correct operation of system memory.
RTC UC1 Non Volatile memory, 256 No Remove the onboard CMOS – Bytes.
coin cell
BBRAM
Stores CMOS information.
battery
(battery backed up)
Video UMA Volatile memory in off state. No No Enter S3-S5 memory – UMA uses main system
State below.
Month yyyy
Page Summary Contents For Dell E7270 and E7470 - SOV Owner's Manual
Manual Details
| Brand | Dell |
|---|---|
| Pages | 2 |
| File Size | 374.31 KB |
| Published | June 26, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What types of components store data on the E7270/E7470?
The system contains both volatile components (which lose data immediately when power is removed) and non-volatile (NV) components.
If I lose primary power by unplugging the cord, what data will be lost?
All user data on the memory (DDR4, 1866/2133 MHz) will be destroyed.
What is the permissible range for system memory installed?
System memory size must be between 2 GB and 16 GB.
How does S3 state differ from S4 (hibernate) mode?
S3 'suspend to RAM' maintains dynamic RAM. S4 writes the system context to non-volatile storage file since there is no active power.
