Dell U3223QE Monitor Outline and Dimensions Owner's Manual
Summary
This document is the outline dimension drawing for the Dell U3223QE 32-inch 4K USB-C monitor, providing detailed mechanical specifications including overall dimensions, bezel widths, stand dimensions, tilt, pivot, swivel, and lift ranges in both millimeters and inches. It specifies VESA mounting patterns and screw hole locations. The drawing is intended for mechanical engineers, industrial designers, AV integrators, and furniture manufacturers who need precise physical measurements for mounting solutions, desk planning, or custom enclosure design.
Page 1 Text Content

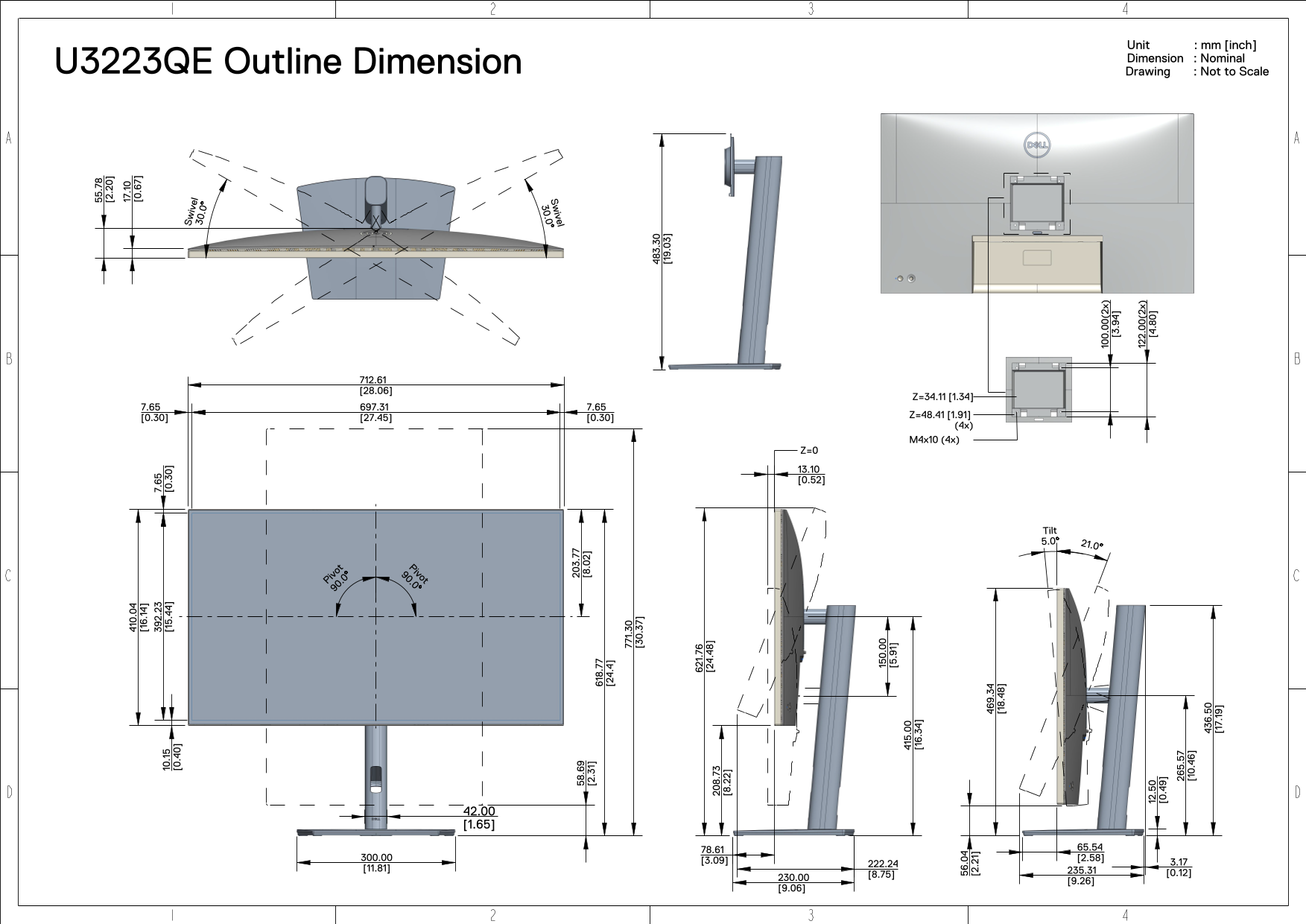

Unit : mm [inch] Dimension : Nominal
U3223QE Outline Dimension Drawing : Not to Scale
iv el .0
Tilt 5.0 21.0
Pivot 90.0
8. Pivo
ivel .0
