Dell C2423H Monitor Outline Dimensions - Owner's Manual
Summary
This document contains mechanical outline dimension drawings for the Dell C2423H monitor, providing nominal measurements in millimeters and inches. It specifies dimensions of the panel, stand, base, and adjustment ranges for tilt, swivel, and pivot. Includes measurements for external components, mounting interfaces, and cable routing. Intended for designers and facility planners needing precise physical specs for installation and workspace layout.
Page 1 Text Content
Unit: mm [inch]

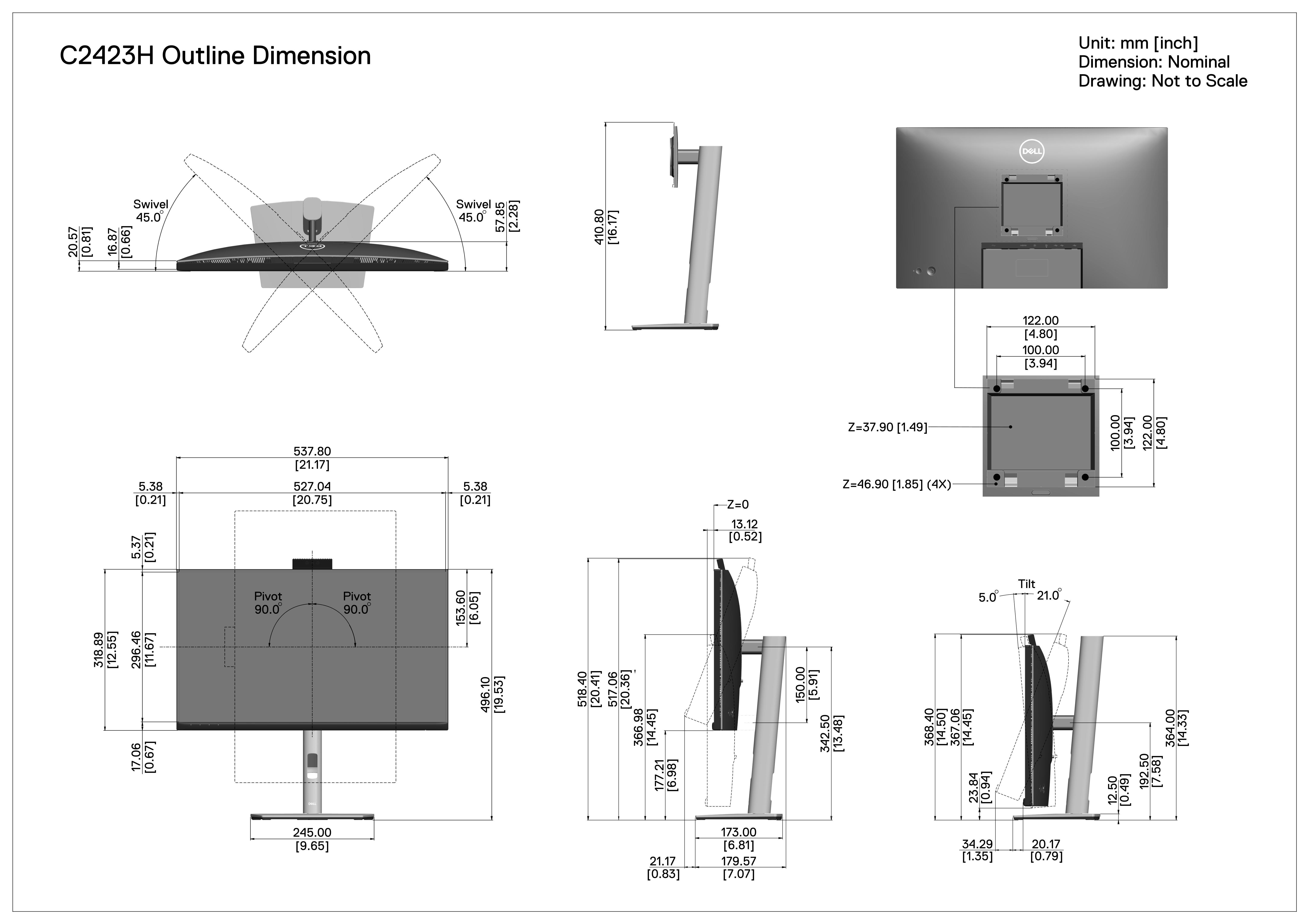

C2423H Outline Dimension
Dimension: Nominal
Drawing: Not to Scale
Swivel Swivel 45.0 45.0
.4 Tilt .4 Pivot Pivot 5.0 21.0
Page Summary Contents For Dell C2423H Monitor Outline Dimensions - Owner's Manual
Page 1
Unit: mm [inch] C2423H Outline Dimension Dimension: Nominal Drawing: Not to Scale Swivel Swivel 45.0 45.0 .4 Tilt .4 Pivot Pivot 5.0 21.0
Manual Details
| Brand | Dell |
|---|---|
| Pages | 1 |
| File Size | 7.17 MB |
| Published | June 23, 2026 |
