Dell D7523QT Monitor Outline Dimensions Owner's Manual
Summary

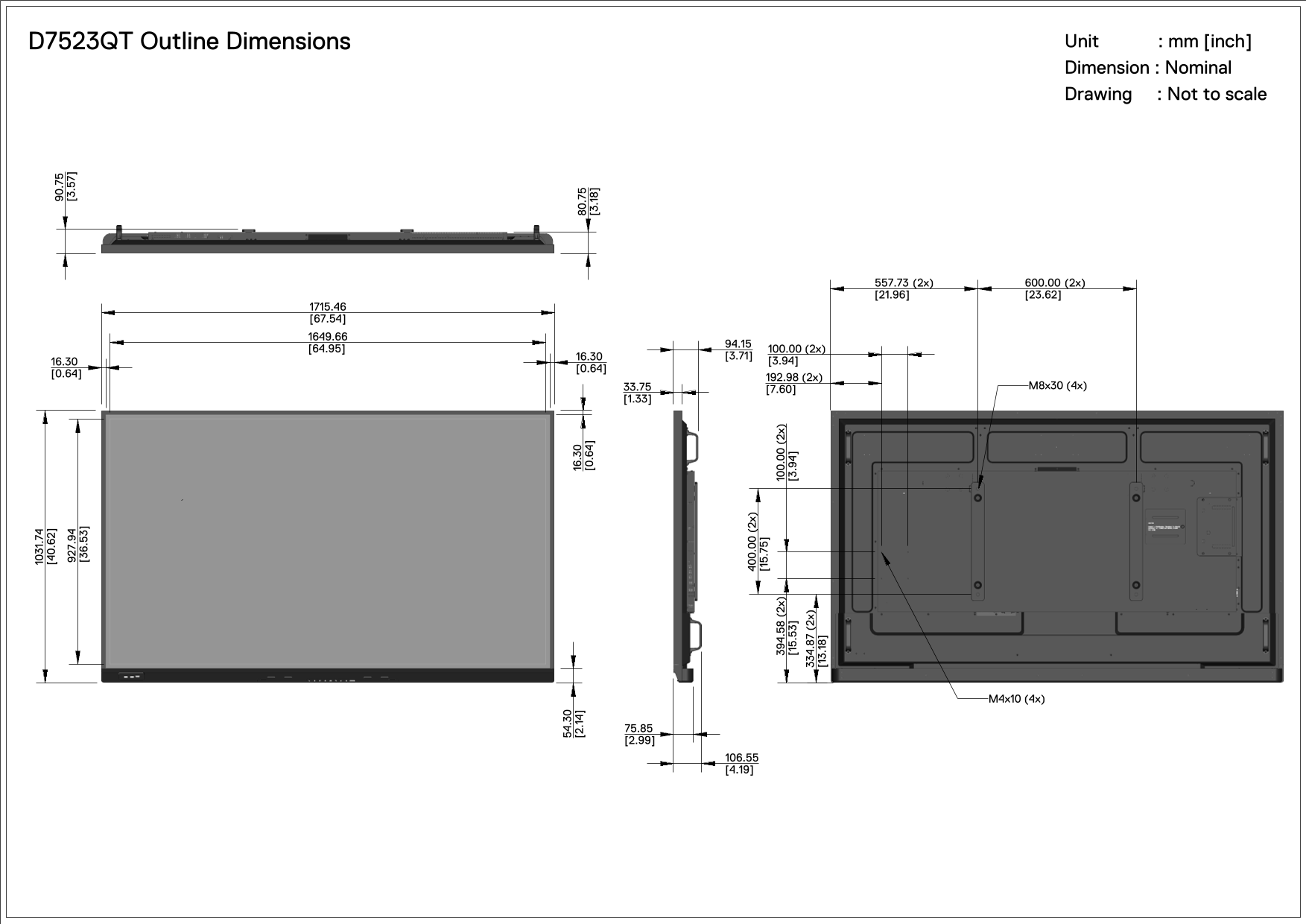

This outline dimensions drawing provides precise physical measurements and mounting specifications for the D7523QT display unit, including screen dimensions, VESA mounting hole positions with M8x30 and M4x10 screw specifications, and overall width, height, and depth in both millimeters and inches. This technical reference is intended for installers and technicians who need accurate dimensional data for installation planning.
Page 1 Text Content
.7 Unit : mm [inch]
D7523QT Outline Dimensions
.9 [3 .5 7] Dimension : Nominal
Drawing : Not to scale
