Dell E2014T Outline Drawing Owner's Manual
Summary
This Dell E2014T monitor technical drawing provides precise dimensional specifications and mechanical design details. The document includes outline dimensions in millimeters and inches, tilt angle specifications (5.5 to 31 degrees), back view measurements, and mounting hole patterns. It serves as an engineering reference for installation planning, enclosure design, and spatial requirements. Target users include system integrators, facility planners, and installation technicians requiring exact physical specifications for monitor deployment.
Page 1 Text Content
Nominal Dimensions

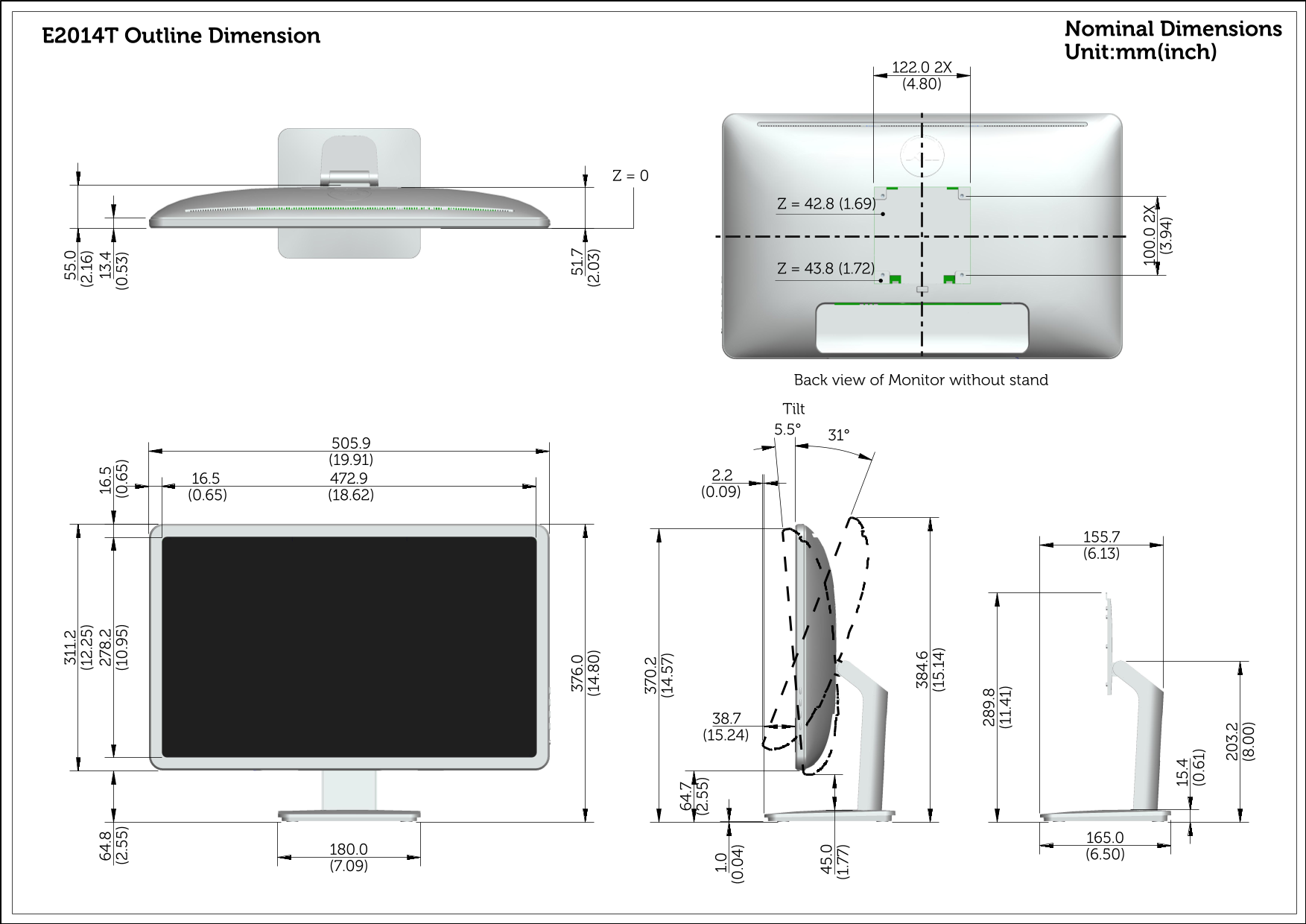

E2014T Outline Dimension
Unit:mm(inch)
Back view of Monitor without stand Tilt 31°5.5°
