Dell P1913s Monitor Outline Drawing Owner's Manual
Summary

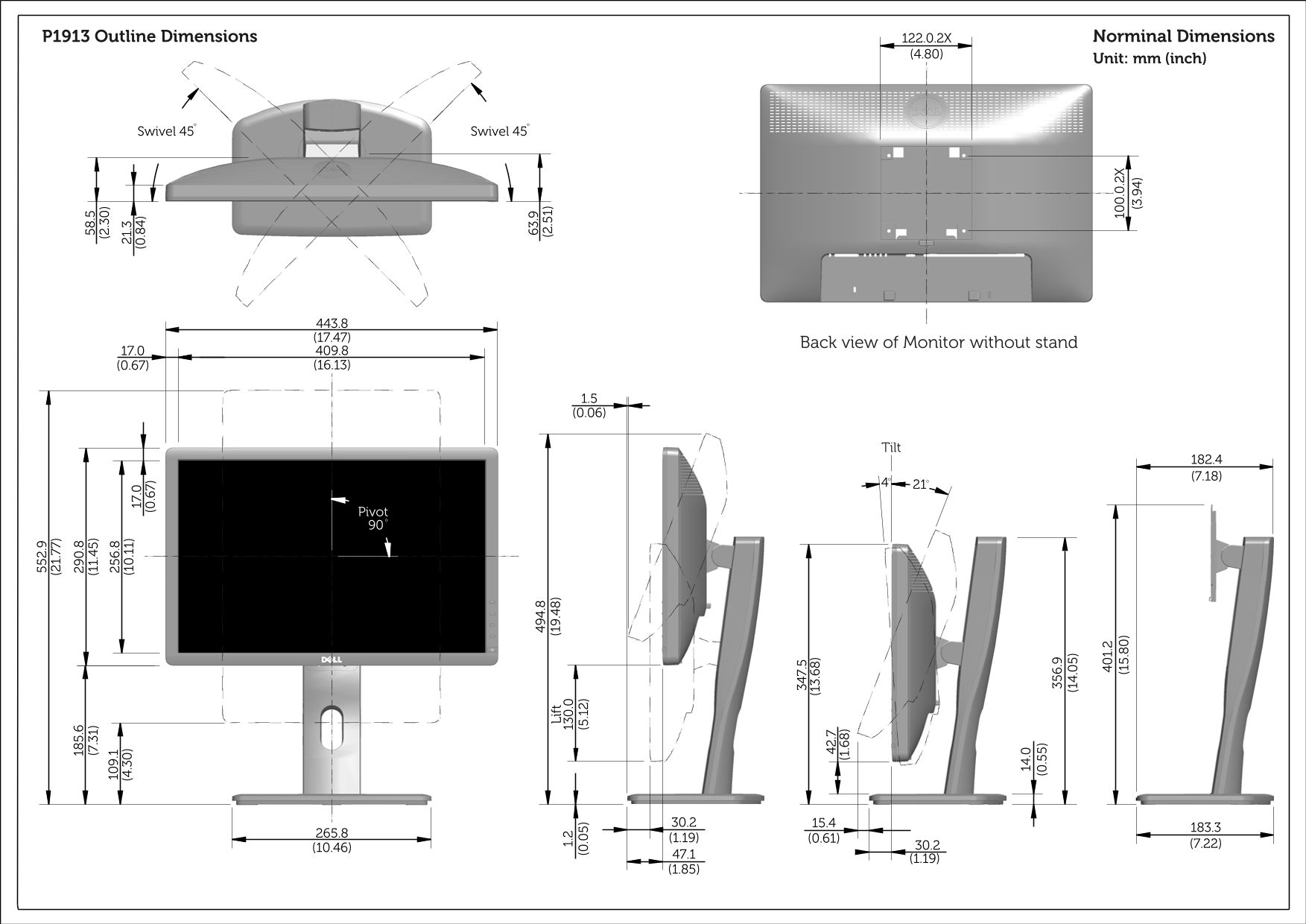

Dimensional specification sheet for a Dell monitor. Provides detailed physical measurements in both millimeters and inches, including front, back, and side views with tilt, swivel, and pivot angle specifications. Lists dimensions for the monitor with and without stand, showing display panel size, bezel width, base dimensions, and VESA mount compatibility. Intended for product designers, IT planners, and users evaluating physical space requirements for monitor installation.
Manual Details
| Brand | Dell |
|---|---|
| Pages | 3 |
| File Size | 4.43 MB |
| Published | June 27, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum swiveling and pivoting range of the monitor?
The display allows for 45 degrees of swivel, support up to 90 degrees rotation, and a pivot angle of 21 degrees.
How are the overall dimensions specified?
Measurements include a width of 182.4 units and depths ranging from 7.18 to 21.77 units depending on configuration.
What is the model identifier shown in these specifications?
The device appears to correspond with the model identifier reference code 122.0.2X.
