Dell P2012H Monitor Outline Drawing Owner's Manual
Summary
The Dell P2012H Monitor Outline Dimension document provides mechanical specifications for the Dell P2012H flat panel display. It includes detailed measurements for physical dimensions, swivel range, tilt pivot, lift mechanism, and mounting specifications with M4x10 mounting hole patterns. Designed for system integrators and IT professionals who need precise specifications for installing or integrating the monitor into workspace configurations.
Page 1 Text Content
Unit : mm (inch)

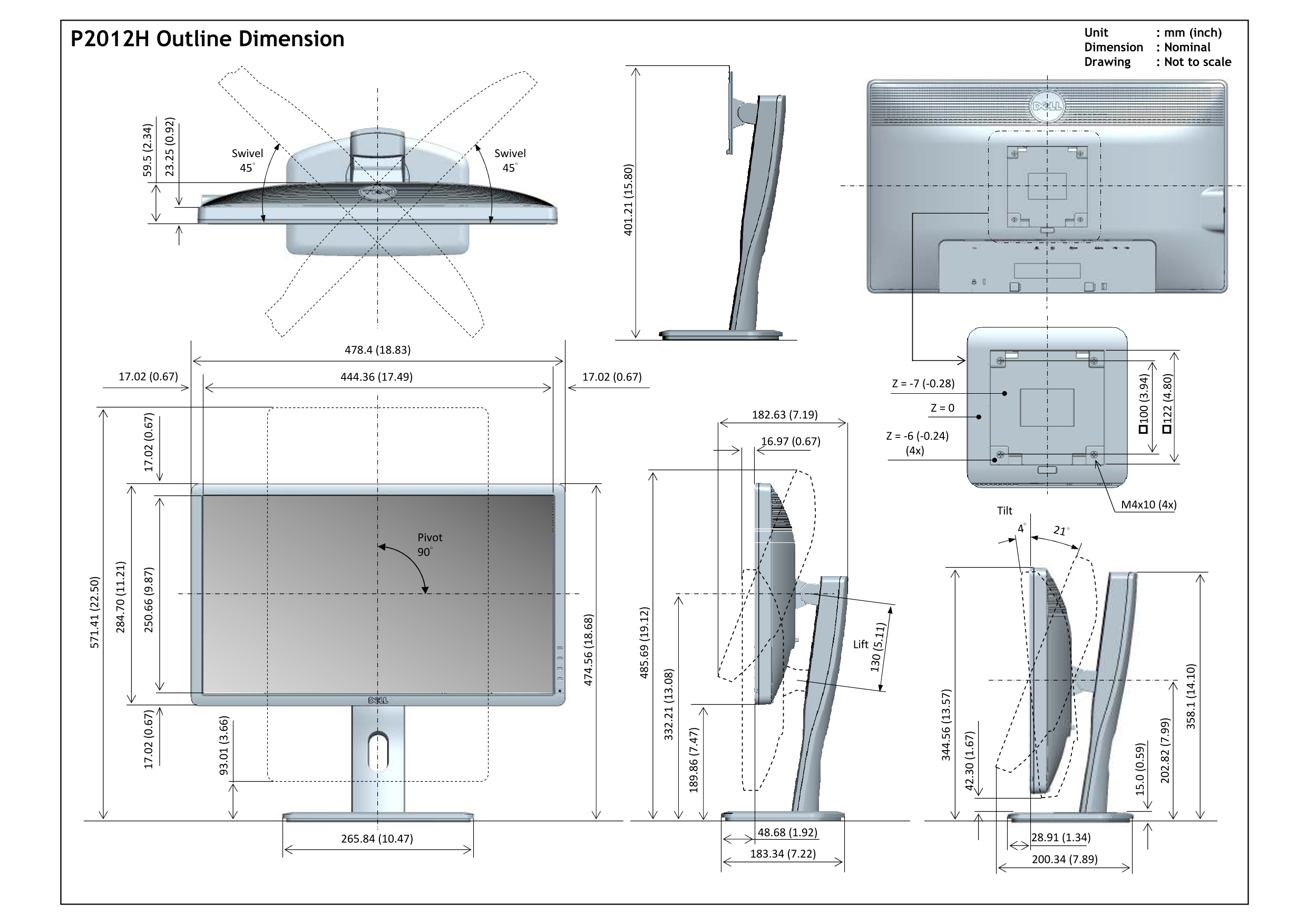

P2012H Outline Dimension
Dimension : Nominal Drawing : Not to scale
Swivel Swivel 45° 45° .2 (0 .9
Tilt 4° 21°
Pivot 90°
.6 (1 .1 Lift
