Dell P1913 Monitor Outline Drawing Owner's Manual
Summary

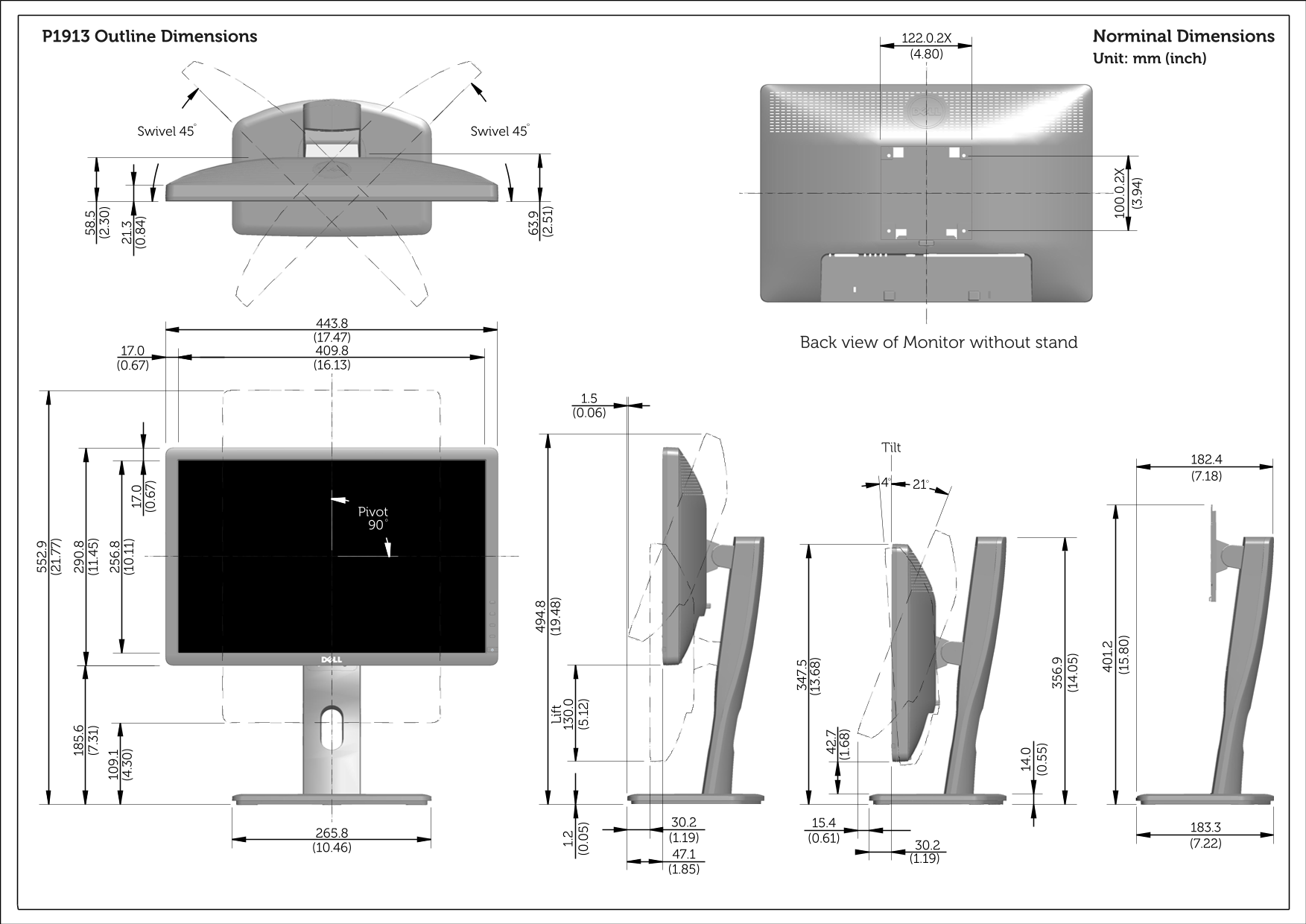

Dell monitor dimension drawing showing back view without stand, swivel range (±45°), pivot (90°), tilt (4°-21°), and overall physical dimensions including width 552.9mm, height 494.8mm, depth 185.6mm, and mounting hole spacing for VESA compatibility.
Manual Details
| Brand | Dell |
|---|---|
| Pages | 3 |
| File Size | 4.43 MB |
| Published | July 03, 2026 |
4 views
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum swivel range for the monitor?
The monitor offers a customizable Swivel function up to 45 degrees.
What physical dimensions should I be aware of?
The overall visible measurements include widths at 409.8 and heights of 17.0, suitable for detailed placement planning.
How flexible is the viewing angle adjustment?
It supports various adjustments including a customizable swivel range and multiple pivot options ranging from 4° to 21°.
