Dell C5517H Monitor Outline Drawing Owner's Manual
Summary
Outline dimension specification sheet for the Dell C5517H monitor, providing nominal physical measurements in millimeters and inches for the display unit without stand. Documents the back view envelope dimensions and VESA mounting hole pattern (4-M6x30 or longer screws) for installation planning. Intended for integrators and installers needing precise physical specifications for rack, wall, or kiosk mounting of this commercial display model.
Page 1 Text Content

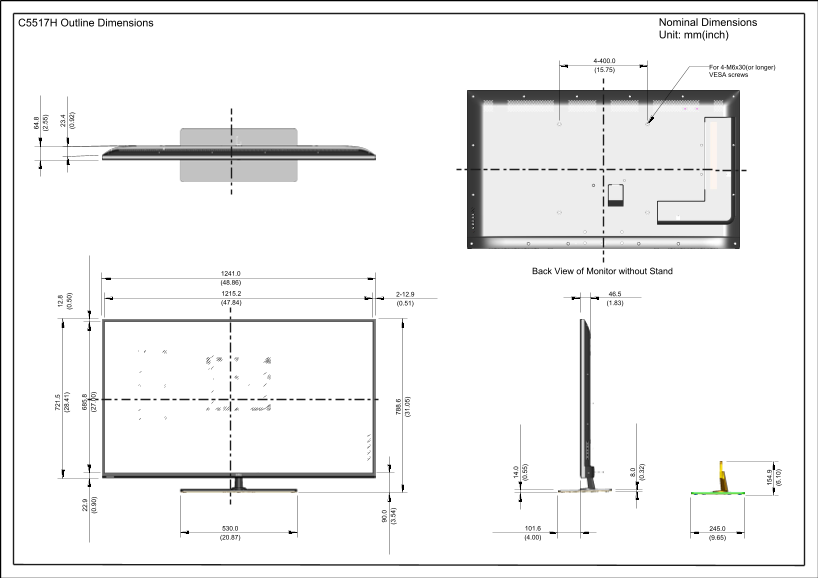

C5517H Outline Dimensions Nominal Dimensions .8 Unit: mm(inch)
(2 8. For 4-M6x30(or longer)
VESA screws
Back View of Monitor without Stand1241.0
