The E1912H Outline Dimension document provides technical specifications for the Dell E1912H monitor. It includes precise measurements in millimeters and inches for the display unit, mounting holes (M4x10), tilt dimensions, width (445.4mm), and height (349.0mm). Target users are system integrators and installers needing exact physical dimensions for mounting and workspace planning.
Page 1 Text Content
Unit : mm (inch)

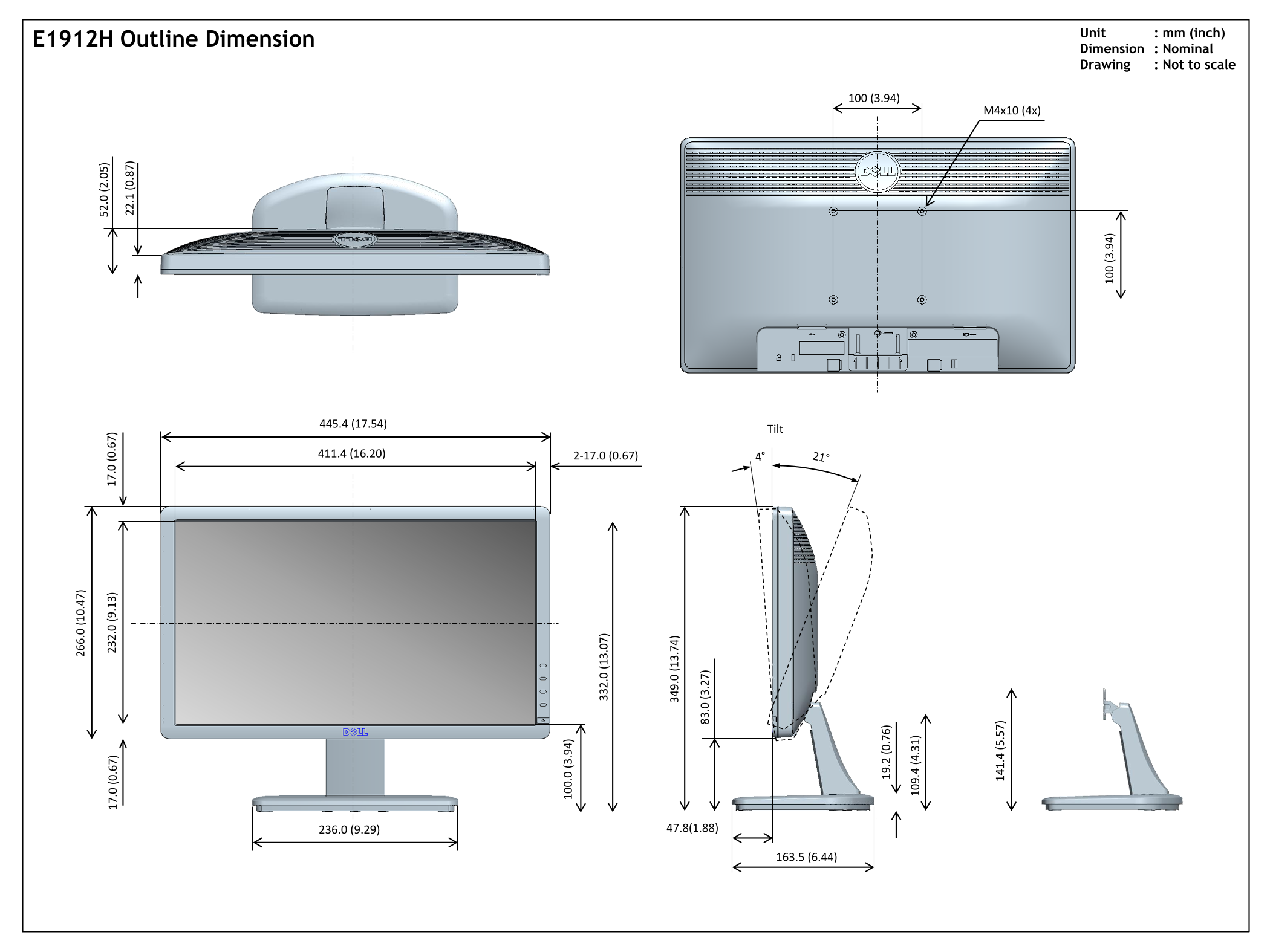

E1912H Outline Dimension
Dimension : Nominal Drawing : Not to scale
Tilt445.4 (17.54)
Page Summary Contents For Dell E1912H Monitor Outline Drawing Owner's Manual
Manual Details
| Brand | Dell |
|---|---|
| Pages | 1 |
| File Size | 287.96 KB |
| Published | June 27, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What units of measurement are used for the dimensions?
The dimensions are provided in millimeters (mm), with corresponding measurements in inches listed in parentheses.
How many mounting screws or fasteners are listed for this component?
The manual specifies the use of M4x10 hardware, requiring four pieces (4x).
Is the product outline dimension drawing accurate?
No, the documentation notes that the provided drawing is ‘Not to scale.’
What are some general major dimensions listed on the component?
The manual lists several dimensions, including a primary length of 445.4 (17.54) units.
