Dell U2212HM Monitor Outline Drawing Owner's Manual
Summary
This document provides the outline dimensions and mechanical drawings for the Dell U2212HM flat panel monitor. It specifies physical measurements in both millimeters and inches, covering the display panel dimensions, stand dimensions, tilt/swivel/pivot ranges, VESA mount specifications, and cable management details. Targeted at industrial designers, rack planners, and system integrators needing mechanical specifications for monitor mounting.
Page 1 Text Content
Unit : mm (inch)

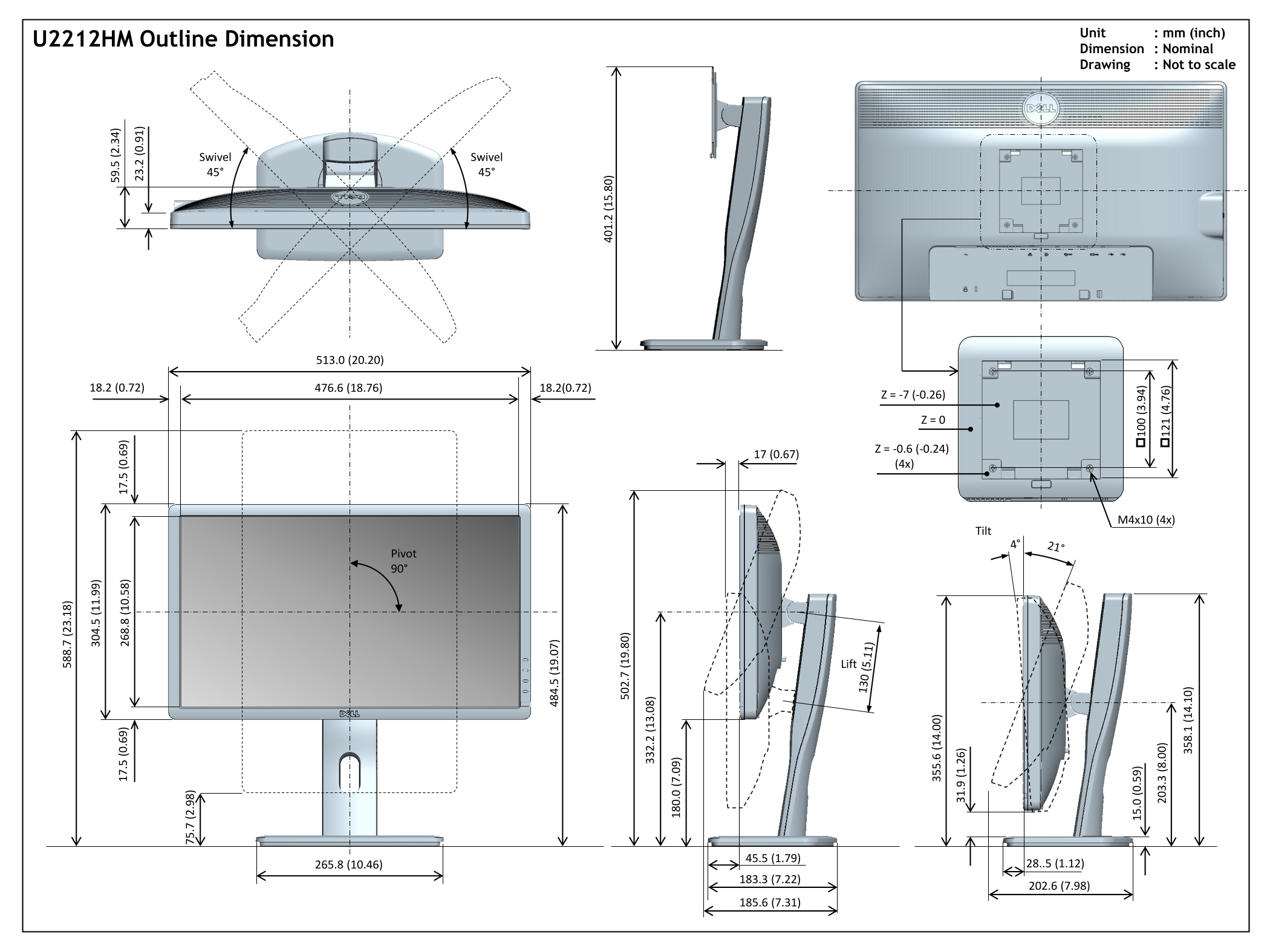

U2212HM Outline Dimension
Dimension : Nominal .7 .1 Drawing : Not to scale
Swivel Swivel 45° 45°
.5 .0 Pivot 90°
