Dell Battery Slice Setup Guide. This multilingual setup guide provides instructions for installing and configuring Dell battery slice accessories for compatible laptop computers. It covers battery slice physical features, docking connector usage, AC adapter connection, charging procedures, and status LED interpretation. The guide is designed for mobile professionals and end users who need extended battery runtime for their Dell laptops through battery slice expansion.
Page 1 Text Content
book.book Page 1 Wednesday, July 20, 2011 4:34 PM
Battery Slice Setup Guide
Guide d'installation de l'extension de batterie
Guia de intalação da bateria auxiliar Guía de configuración de la batería laminar
Page Summary Contents For Dell Battery Slice Tech Sheet
Page 1

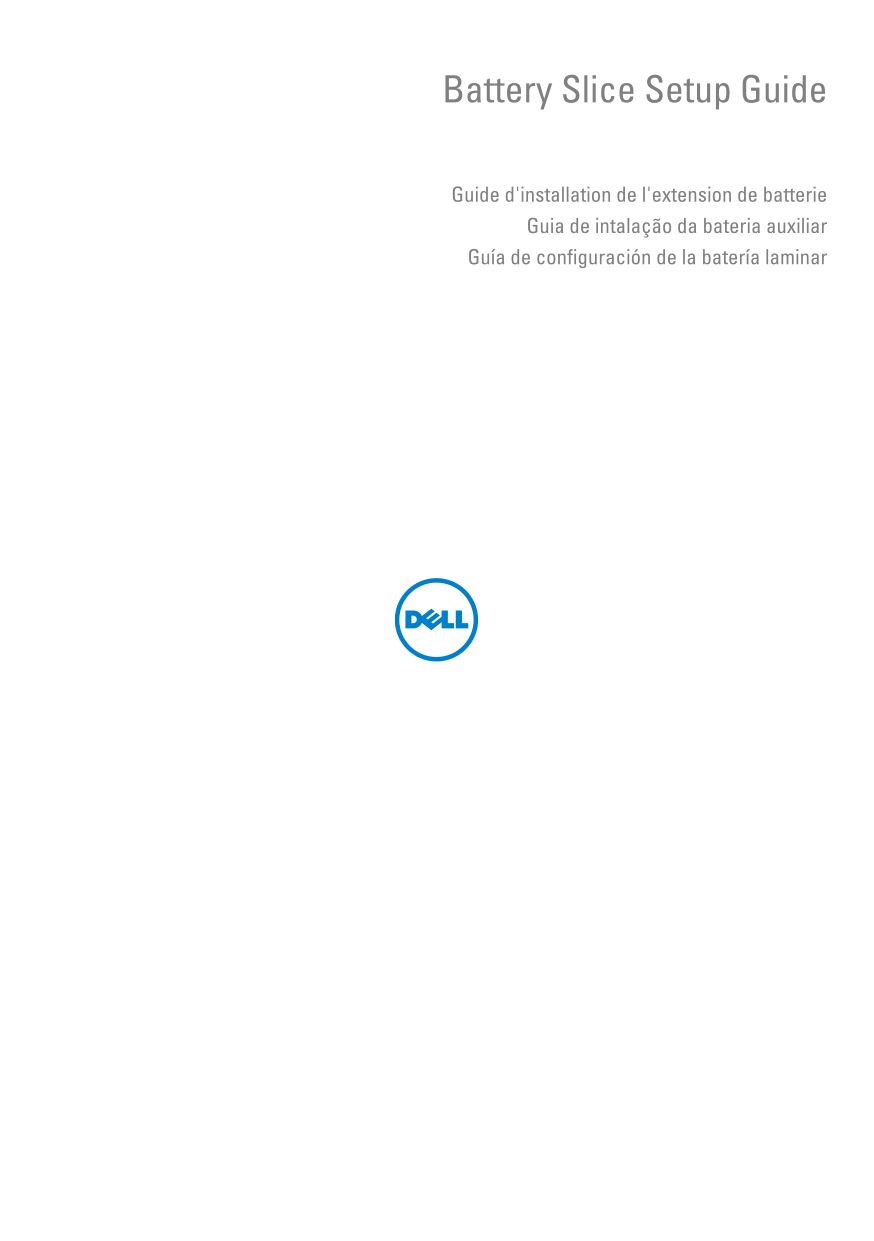

book.book Page 1 Wednesday, July 20, 2011 4:34 PM Battery Slice Setup Guide Guide d'installation de l'extension de batterie Guia de intalação da bateria auxiliar Guía de configuración de la batería la...
Page 2
book.book Page 2 Wednesday, July 20, 2011 4:34 PM
Page 3
book.book Page 1 Wednesday, July 20, 2011 4:34 PM Battery Slice Setup Guide
Page 4
book.book Page 2 Wednesday, July 20, 2011 4:34 PM Notes, Cautions, and Warnings NOTE: A NOTE indicates important information that helps you make better use of your computer. CAUTION: A CAUTION indicat...
Page 5
book.book Page 3 Wednesday, July 20, 2011 4:34 PM Battery Slice Bottom View AC adapter connector battery-slice status LED release lever docking connector Setting up Your Battery Slice WARNING: The AC ...
Page 6
book.book Page 4 Wednesday, July 20, 2011 4:34 PM Before you undock your computer, set your computer’s power management settings so that it does not enter sleep, standby, or hibernate mode when you cl...
Page 7
book.book Page 5 Wednesday, July 20, 2011 4:34 PM Undocking Your Computer From the Battery Slice Disconnect all the cables connected to the computer. Flip the computer on its back. Press the release l...
Page 8
book.book Page 6 Wednesday, July 20, 2011 4:34 PM Battery Slice Power-Status LED Codes Your battery slice includes a power status LED that can indicate the following states: LED code sequence Status B...
Page 9
book.book Page 1 Wednesday, July 20, 2011 4:59 PM Guide d'installation de l'extension de batterie
Page 10
book.book Page 2 Wednesday, July 20, 2011 4:59 PM Remarques, précautions et avertissements REMARQUE : Une REMARQUE indique une information importante qui peut vous aider à mieux utiliser votre ordinat...
Page 11
book.book Page 9 Wednesday, July 20, 2011 4:59 PM Extension de batterie Vue de dessous connecteur d'adaptateur secteur LED d'état d'alimentation de l'extension de batterie levier de dégagement connect...
Page 12
book.book Page 10 Wednesday, July 20, 2011 4:59 PM Branchez l'adaptateur secteur au connecteur de l'adaptateur secteur sur votre ordinateur. Avant de connecter ou de déconnecter votre ordinateur de/à ...
Page 13
book.book Page 11 Wednesday, July 20, 2011 4:59 PM Connexion de l'ordinateur à l'extension de batterie Suivez les procédures décrites dans la section « Installation de l'extension de batterie », page ...
Page 14
book.book Page 12 Wednesday, July 20, 2011 4:59 PM Chargement de votre extension de batterie Vous pouvez recharger votre extension de batterie indépendamment de votre ordinateur au moyen de l'adaptate...
Page 15
book.book Page 13 Wednesday, July 20, 2011 4:59 PM Spécifications Type Batterie au lithium-ion à 9 cellules Hauteur 22,60 mm (0,89") Largeur 94,89 mm (3,74") Profondeur 275,38 mm (10,84"...
Page 16
book.book Page 14 Wednesday, July 20, 2011 4:59 PM Extension de batterie
Page 17
book.book Page 1 Wednesday, July 20, 2011 5:19 PM Guia de intalação da bateria auxiliar
Page 18
book.book Page 2 Wednesday, July 20, 2011 5:19 PM Notas, Avisos e Advertências NOTA: Indica informações importantes para utilizar melhor o computador. ADVERTÊNCIA: Um AVISO indica possíveis danos ao h...
Page 19
book.book Page 17 Wednesday, July 20, 2011 5:19 PM Bateria auxiliar Vista inferior conector do adaptador CA LED de status da bateria auxiliar alavanca de liberação conector de acoplamento Como configu...
Page 20
book.book Page 18 Wednesday, July 20, 2011 5:19 PM Antes de desacoplar seu computador, ajuste as configurações de energia para que ele não entre em modo de espera, standby ou (hibernação) quando você ...
Page 21
book.book Page 19 Wednesday, July 20, 2011 5:19 PM Acoplar o computador da bateria auxiliar Desconecte todos os cabos conectados ao computador Vire o computador para baixo Pressione a alavanca de libe...
Page 22
book.book Page 20 Wednesday, July 20, 2011 5:19 PM Códigos do LED de status de energia da bateria auxiliar A sua bateria auxiliar contém um LED de status de energia que pode indicar os seguintes estad...
Page 23
book.book Page 21 Wednesday, July 20, 2011 5:19 PM Temperature: Operação 0° C a 60° C (32° F a 140° F) NOTA: A bateria auxiliar não começará a funcionar se a temperatura for maior que 50° C (122° F). ...
Page 24
book.book Page 22 Wednesday, July 20, 2011 5:19 PM Bateria auxiliar
Page 25
book.book Page 1 Wednesday, July 20, 2011 5:18 PM Guía de configuración de la batería laminar
Page 26
book.book Page 2 Wednesday, July 20, 2011 5:18 PM Notas, precauciones y advertencias NOTA: Una NOTA indica información importante que le ayuda a conseguir un mejor rendimiento de su equipo. PRECAUCIÓN...
Page 27
book.book Page 25 Wednesday, July 20, 2011 5:18 PM Batería laminar Vista inferior conector del adaptador de CA LED de estado de la batería laminar Palanca de liberación conector de acoplamiento Config...
Page 28
book.book Page 26 Wednesday, July 20, 2011 5:18 PM Antes de desacoplar el equipo, modifique la configuración de administración de energía del equipo, para que no cambie al estado de suspensión, de esp...
Page 29
book.book Page 27 Wednesday, July 20, 2011 5:18 PM Desacoplamiento del equipo de la batería laminar Desconecte todos los cables conectados al equipo. Dé vuelta su computadora. Presione la palanca de l...
Page 30
book.book Page 28 Wednesday, July 20, 2011 5:18 PM Códigos LED de estados de energía de la batería laminar La batería laminar incluye un LED que indica los siguientes estados de energía: Secuencia de ...
Page 31
book.book Page 29 Wednesday, July 20, 2011 5:18 PM Temperature: En funcionamiento 0 °C a 60 °C (32 °F a 140 °F) NOTA: La batería laminar no comienza a cargarse, si la temperatura supera los 50 °C (122...
Page 32
book.book Page 30 Wednesday, July 20, 2011 5:18 PM Batería laminar
