Dell RS232 Command Guide for W3202MH/W3706MH displays describes the RS232 serial communication protocol and command set for controlling Dell digital TVs and monitors. It covers communication settings (baud rate 19200, 8 data bits, no parity), command structure including header, payload, CRC, and status codes. The guide also explains how to use Omnivex Control 4 software for device management. Target users are AV integrators, digital signage administrators, and system integrators who need to control Dell displays via RS232 interfaces.
Page 1 Text Content
.d ll.c | s rt.d ll.c

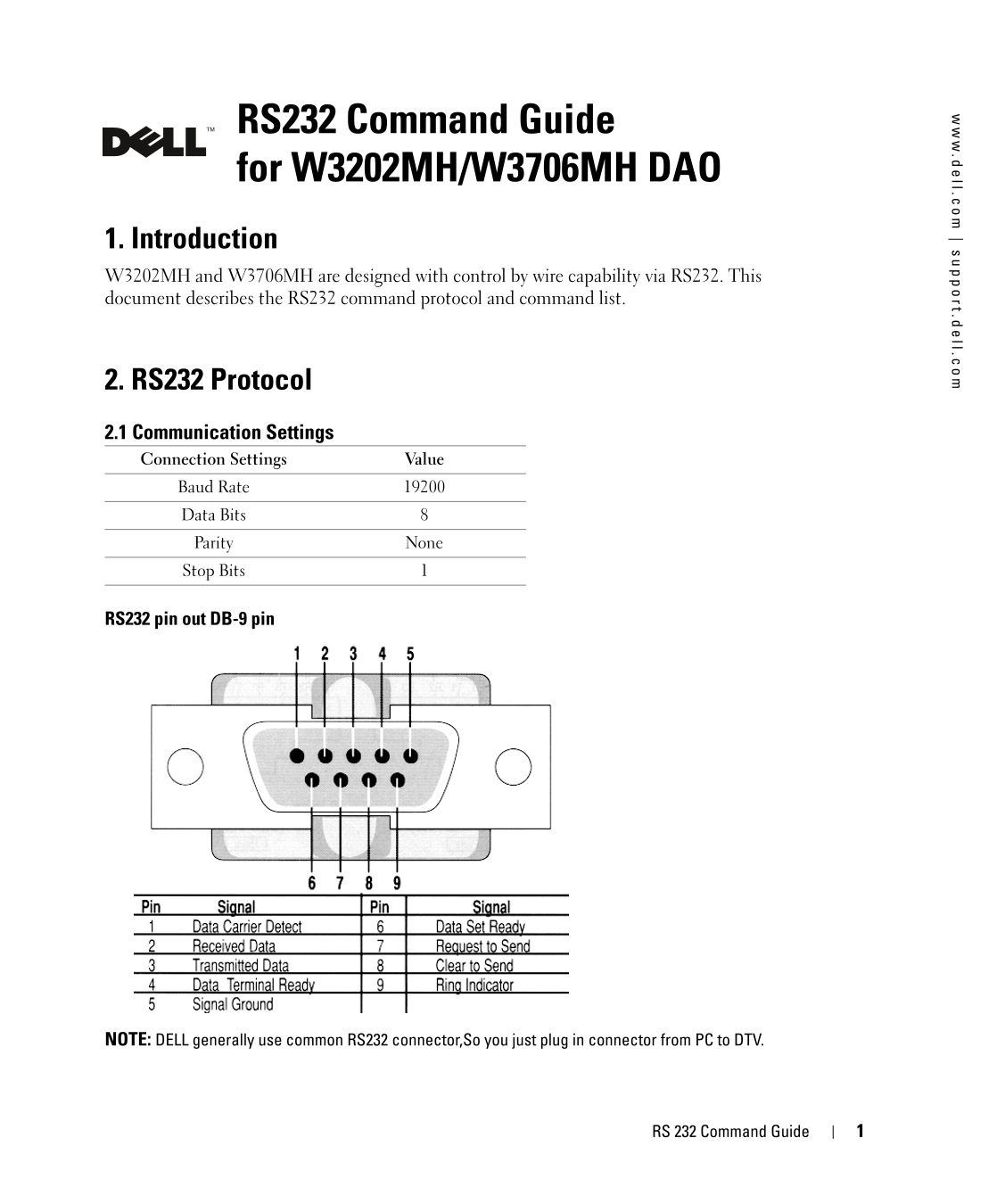

RS232 Command Guide for W3202MH/W3706MH DAO 1. Introduction W3202MH and W3706MH are designed with control by wire capability via RS232. This
document describes the RS232 command protocol and command list.
2. RS232 Protocol 2.1 Communication Settings Connection Settings Value Baud Rate Data Bits
Parity None Stop Bits
RS232 pin out DB-9 pin
NOTE: DELL generally use common RS232 connector,So you just plug in connector from PC to DTV.
RS 232 Command Guide
