Dell Alienware M11x Comprehensive Specifications

Summary

Explore comprehensive technical specifications for the robust Alienware M11x laptop. This guide details everything required to understand your machine, covering processors (Core2 Duo), memory capacities (DDR3), versatile connectivity ports (USB 2.0, HDMI, DisplayPort), and display features. Ideal for power users, IT professionals, or performance enthusiasts needing precise information on dimensions, component compatibility, and optimal system configuration.

📄 Preview ‹ PAGE OF 15 ›

‹

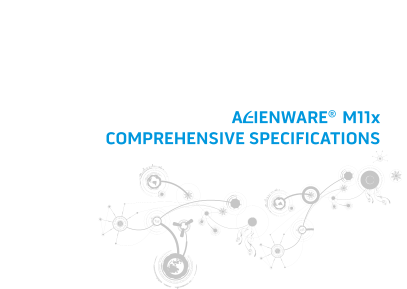

Dell Alienware M11x Comprehensive Specifications - Page 1

›

Page 1 Text Content

ALIENWARE® M11x

COMPREHENSIVE SPECIFICATIONS

Page Summary Contents For Dell Alienware M11x Comprehensive Specifications

Page 1 ALIENWARE® M11x COMPREHENSIVE SPECIFICATIONS

Page 2 The contents herein are subject to change without notice. © 2010 Dell Inc. All rights reserved. Reproduction of these materials in any manner whatsoever without the prior written permission of Dell In...

Page 3 COMPREHENSIVE SPECIFICATIONS COMPREHENSIVE SPECIFICATIONS

Page 4 COMPREHENSIVE SPECIFICATIONS Computer Model Alienware M11x Dimensions Height (Front and Back) 32.7 mm (1.29 inches) Width 285.7 mm (11.25 inches) Depth 233.3 mm (9.19 inches) Weight with 8-cell batter...

Page 5 COMPREHENSIVE SPECIFICATIONS Processor and System Chipset Processor Intel Pentium™ Dual Core Intel® Core™2 Duo L2 cache Intel Pentium Dual Core 2 MB Intel Core2 Duo 3 MB Bus clock 200 MHz System chips...

Page 6 COMPREHENSIVE SPECIFICATIONS Memory Connectors two internally-accessible DDR3 SODIMM sockets Capacities 1 GB, 2 GB, and 4 GB Memory type 800 MHz (dual-channel configurations) Memory configurations 2 G...

Page 7 COMPREHENSIVE SPECIFICATIONS Ports and Connectors Display Port one 20-pin connector Audio two audio output/headphone connectors and one audio input/microphone connector 3-in-1 Media Card Reader one co...

Page 8 COMPREHENSIVE SPECIFICATIONS Video Video controller integrated on Intel GS45 the system board Discrete video controller Nvidia NV11P-GS1 Video memory Intel GS45 dynamic based on system memory capacity...

Page 9 COMPREHENSIVE SPECIFICATIONS Hard-Drive Storage Interface SATA Number of hard drives one Hard drive 2.5 inch SATA hard drive Type standard portable and solid-state hard-drives Cards Supported Media ca...

Page 10 COMPREHENSIVE SPECIFICATIONS Display Type (WLED) 11.6 inch HD+ True Life Maximum resolution 1366 x 768 Dimensions Height 144 mm (5.67 inches) Width 256.12 mm (10.08 inches) Diagonal 293.83 mm (11.57 i...

Page 11 COMPREHENSIVE SPECIFICATIONS Keyboard (Backlit) Number of keys 82 (Korea, U.S, and Canada); 83 (Europe); 86 (Japan) Backlight color RGB; colors can be changed by invoking the Alien FX® application in ...

Page 12 COMPREHENSIVE SPECIFICATIONS Battery 8-cell “smart” lithium ion (63 Whr) Height 11.2 mm (0.44 inches) Width 173 mm (6.81 inches) Depth 109.4 mm (4.31 inches) Weight 0.43 kg (0.94 lb) Voltage 14.8 V Op...

Page 13 COMPREHENSIVE SPECIFICATIONS AC Adapter Type 65 W Input voltage 100-240 VAC Input current (maximum) 1.7 A Input frequency 50-60 Hz Output current 3.34 A (continuous) Output power 65 W Rated output vol...

Page 14 COMPREHENSIVE SPECIFICATIONS Computer Environment Temperature range Operating 0° to 35°C (32° to 95°F) Storage –40° to 65°C (–40° to 149°F) Relative humidity (maximum) Operating 10% to 90% (non-conden...

Page 15 COMPREHENSIVE SPECIFICATIONS Computer Environment Altitude (maximum) Operating –15.2 to 3048 m (–50 to 10,000 ft) Storage –15.2 to 10,668 m (–50 to 35,000 ft) Airborne contaminant level G2 or lower as...

Manual Details

Brand	Comprehensive
Pages	15
File Size	967.07 KB
Published	May 18, 2026

62 views

Enter the captcha to get the download link:

Frequently Asked Questions

What is the estimated life span of the lithium ion battery?

The battery has an approximate lifespan of 300 discharge/charge cycles.

Are there multiple options for internal memory configuration?

Yes, possible configurations include 2 GB, 4 GB, and 8 GB.

Which ports are available for connecting external displays?

You can use VGA, HDMI, or DisplayPort connectors for external display support.

What is the minimum supported operating temperature for this system?

The main computer unit must operate between 0° and 35°C (32° to 95°F).

Does the laptop have wireless connectivity options?

It supports WLAN Mini-Card, WWAN Mini-Card (optional), and an integrated Bluetooth module (optional).
