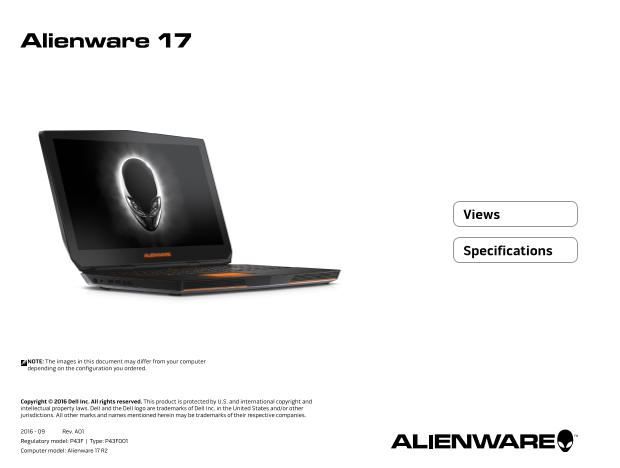

Page 1
Alienware 17 Views Specifications NOTE: The images in this document may differ from your computer depending on the configuration you ordered. Copyright © 2016 Dell Inc. All rights reserved. This produ...
Page 2
Views Specifications External graphics port HDMI port Connect an Alienware Graphics Amplifier. Connect a TV or another HDMI‑in enabled device. Provides video and audio output. Mini Display Port Connec...
Page 3
Views Specifications Power-adapter port USB 3.0 port Connect a power adapter to provide power to your Connect peripherals such as storage devices, printers, and computer and charge the battery. so on....
Page 4
Views Specifications Media-card reader Network port Reads from and writes to media cards. Connect an Ethernet (RJ45) cable from a router or a broadband modem for network or internet access. USB 3.0 po...
Page 5
Views Specifications Hard-drive activity light Power button/Power-status light Turns on when the computer reads from or writes to the Press to turn on the computer if it is turned off or in Sleep hard...
Page 6
Views Specifications Display Left digital-array microphone Camera-status light Provides high‑quality digital sound input for audio Turns on when the camera is in use. recording, voice calls, and so on...
Page 7
Specifications Views Dimensions and Weight Width 430 mm (16.93 in) Depth 292 mm (11.50 in) Height 34.40 mm (1.35 in) Weight (maximum): Non Touch 3.68 kg (8.11 lb) Touch 3.88 kg (8.56 lb) NOTE: The wei...
Page 8
Specifications Views System Information Computer model Alienware 17 R2 Processor 4th Generation Intel Core i7 L3 cache up to 6 MB Dimensions and System Ports and Memory Communications Video Audio Stor...
Page 9
Specifications Views Memory Slot Two SODIMM slots Type DDR3L Speed 1600 MHz Configurations supported 8 GB, 12 GB, and 16 GB Dimensions and System Ports and Memory Communications Video Audio Storage We...
Page 10
Specifications Views Ports and Connectors External: Network One RJ45 port USB • One USB 3.0 port with Power Share • Three USB 3.0 ports Audio/video • One HDMI port • One headphone and microphone combo...
Page 11
Specifications Views Communications Ethernet 10/100/1000 Mbps Ethernet controller integrated on system board Wireless • Wi‑Fi 802.11a/b/g/n/ac • Bluetooth 4.0 • Wireless display (Wi Di) • Miracast (Wi...
Page 12
Specifications Views Video Controller • Intel HD Graphics 4600 • Intel Iris Pro Graphics 5200 Memory Shared system memory Discrete: Controller • NVIDIA Ge Force GTX 970M • NVIDIA Ge Force GTX 980M Mem...
Page 13
Specifications Views Audio Controller Creative Sound Core 3D with SBX Pro Studio Speakers Two Speaker output: Average 1.5 W Peak 2 W Subwoofer One Subwoofer output: Average 2 W Peak 2.5 W Microphone D...
Page 14
Specifications Views Storage Interface • SATA 6 Gbps (SSD Slot 1 to slot 3) • SATA 3 Gbps (SSD Slot 4) Hard drive One 2.5‑inch drive Solid‑state drive Four M.2 drives Dimensions and System Ports and M...
Page 15
Specifications Views Media-Card Reader Type One 3‑in‑1 slot Cards supported • SD card • SD High‑Capacity (SDHC) card • SD Extended Capacity (SDXC) card Dimensions and System Ports and Memory Communica...
Page 16
Specifications Views Display Type • 17.3‑inch Full HD • 17.3‑inch Full HD with Touch Resolution (maximum) 1920 x 1080 Dimensions: Height 245.50 mm (9.67 in) Width 400 mm (15.75 in) Diagonal 439.42 mm ...
Page 17
Specifications Views Keyboard Type Backlit keyboard Shortcut keys Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary funct...
Page 18
Keyboard Shortcut Keys Allows to disconnect Alienware Graphics Amplifier Disable/Enable wireless Mute audio Macro keys NOTE: You can configure modes and assign multiple tasks for the macro keys on the...
Page 19
Specifications Views Camera Resolution: Still image 2.07 megapixel Video 1920 x 1080 (Full HD) at 30 fps (maximum) Diagonal viewing angle 74 degrees Dimensions and System Ports and Memory Communicatio...
Page 20
Specifications Views Touchpad Resolution: Horizontal 1727 dpi Vertical 1092 dpi Dimensions: Width 100 mm (3.94 in) Height 56 mm (2.20 in) Dimensions and System Ports and Memory Communications Video Au...
Page 21
Specifications Views Battery Type 8 cell Lithium‑ion 92 WHr Dimensions: Width 383.20 mm (15.09 in) Depth 79.05 mm (3.11 in) Height 19.80 mm (0.78 in) Weight (maximum) 0.516 kg (1.14 lb) Voltage 14.8 V...
Page 22
Specifications Views Power Adapter Type 180 W Input voltage 100 VAC–240 VAC Input frequency 50 Hz–60 Hz Input current 2.34 A/2.50 A Output current 9.23 A Rated output voltage 19.50 VDC Temperature ran...
Page 23
Specifications Views Computer Environment Airborne contaminant level G1 as defined by ISA‑S71.04‑1985 Operating Storage Temperature range 0°C to 35°C (32°F to 95°F) –40°C to 65°C (–40°F to 149°F) Rela...
