Page 1

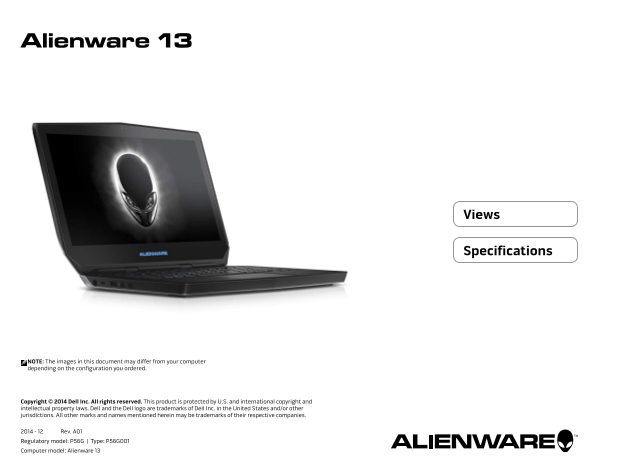

Alienware 13 Views Specifications NOTE: The images in this document may differ from your computer depending on the configuration you ordered. Copyright © 2014 Dell Inc. All rights reserved. This produ...
Page 2
Views Specifications External graphics port HDMI port Connect an Alienware Graphics Amplifier. Connect a TV or another HDMI‑in enabled device. Provides video and audio output. Mini Display Port Connec...
Page 3
Views Specifications Power-adapter port Microphone/Headphone port Connect a power adapter to provide power to your Connect an external microphone to provide sound input computer and charge the battery...
Page 4
Views Specifications USB 3.0 ports (2) Network port Connect peripherals such as storage devices, printers, and Connect an Ethernet (RJ45) cable from a router or a so on. Provides data transfer speeds ...
Page 5
Views Specifications Hard-drive activity light Touch pad Turns on when the computer reads from or writes to the Move your finger on the touch pad to move the mouse hard drive. pointer. Tap to left cli...
Page 6
Views Specifications Display Left digital-array microphone Camera-status light Provides high‑quality digital sound input for audio Turns on when the camera is in use. recording, voice calls, and so on...
Page 7
Specifications Views Dimensions and weight Width 328 mm (12.91 in) Depth 235 mm (9.25 in) Height: HD (Non Touch) 26.41 mm to 28.90 mm (1.03 in to 1.14 in) Full HD (Non Touch) 25.34 mm to 27.90 mm (1 i...
Page 8
Specifications Views System information Computer model Alienware 13 Processor • 4th generation Intel Core i5 • 5th generation Intel Core i5 • 5th generation Intel Core i7 L3 cache 3 MB/4 MB Dimensions...
Page 9
Specifications Views Memory Slot Two SODIMM slots Type DDR3L Speed 1600 MHz Configurations supported 8 GB, 12 GB, and 16 GB Dimensions and System Ports and Memory Communications Video Audio Storage we...
Page 10
Specifications Views Ports and connectors External: Network One RJ45 port USB • One USB 3.0 port with Powershare • Two USB 3.0 ports Audio/video • One HDMI port • One headphone and microphone combo (h...
Page 11
Specifications Views Communications Ethernet 10/100/1000 Mbps Ethernet controller integrated on system board Wireless • Wi‑Fi 802.11ac • Bluetooth 4.0 • Wireless display (Wi Di) • Miracast (Windows 8....
Page 12
Specifications Views Video Controller • Intel HD Graphics 4400 • Intel HD Graphics 5500 Memory Shared system memory Discrete: Controller • NVIDIA Ge Force GTX 860M • NVIDIA Ge Force GTX 960M Memory 2 ...
Page 13
Specifications Views Audio Controller Realtek ALC 3234 with Creative Sound Blaster X‑Fi MB3 Speakers Two (Klipsch powered stereo speaker system) Speaker output: Average 2 W Peak 2.5 W Microphone Digit...
Page 14
Specifications Views Storage Interface SATA 6 Gbps Hard drive One 2.5‑inch drive Solid‑state drive Two M.2 drives NOTE: Your computer can accomodate either one 2.5‑inch hard drive or two solid‑state d...
Page 15
Specifications Views Display Type • 13.3‑inch HD • 13.3‑inch Full HD • 13.3‑inch QHD • 13.3‑inch QHD+ Non touch (HD) Non touch (Full HD) Touch (QHD/QHD+) Resolution (maximum) 1366 x 768 1920 x 1080 • ...
Page 16
Specifications Views Keyboard Type Backlit keyboard Shortcut keys Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary funct...
Page 17
Specifications Views Camera Resolution: Still image 2.1 megapixel Video 1920 x 1080 (Full HD) at 30 fps (maximum) Diagonal viewing angle 74 degrees Dimensions and System Ports and Memory Communication...
Page 18
Specifications Views Touchpad Resolution: Horizontal 2417 dpi Vertical 2189 dpi Dimensions: Width 107 mm (4.21 in) Height 67 mm (2.63 in) Dimensions and System Ports and Memory Communications Video Au...
Page 19
Specifications Views Battery Type 4 cell Lithium Polymer 51 WHr Dimensions: Width 299.20 mm (11.78 in) Depth 76.83 mm (3.02 in) Height 13.50 mm (0.53 in) Weight (maximum) 0.287 kg (0.63 lb) Voltage 14...
Page 20
Specifications Views Power adapter Type 130 W Input voltage 100 VAC–240 VAC Input frequency 50 Hz–60 Hz Input current 2.5 A Output current 6.70 A Rated output voltage 19.50 VDC Temperature range: Oper...
Page 21
Specifications Views Computer environment Airborne contaminant level G1 as defined by ISA‑S71.04‑1985 Operating Storage Temperature range 0°C to 35°C (32°F to 95°F) –40°C to 65°C (–40°F to 149°F) Rela...
