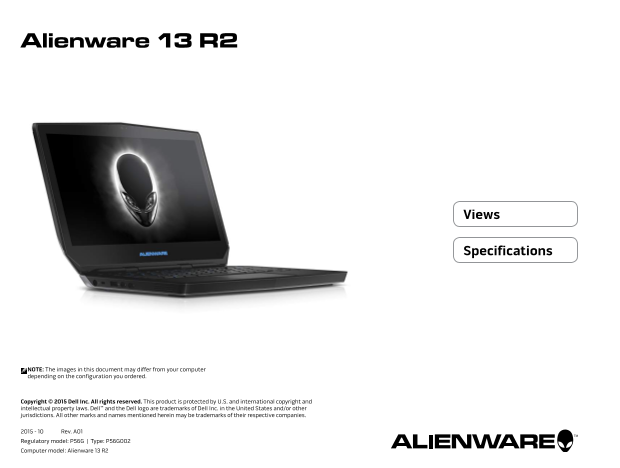

Page 1
Alienware 13 R2 Views Specifications NOTE: The images in this document may differ from your computer depending on the configuration you ordered. Copyright © 2015 Dell Inc. All rights reserved. This pr...
Page 2
Views Specifications External graphics port HDMI port Connect an Alienware Graphics Amplifier. Connect a TV or another HDMI‑in enabled device. Provides video and audio output. Display
Page 3
Views Specifications Power-adapter port Microphone/headphone port Connect a power adapter to provide power to your Connect an external microphone to provide sound input computer and charge the battery...
Page 4
Views Specifications Thunderbolt 3 port (USB-C) Network port Supports USB 3.1 Gen 2, Display Port over USB‑C, and Connect an Ethernet (RJ45) cable from a router or a Thunderbolt 3. Provides data trans...
Page 5
Views Specifications Hard-drive activity light Touch pad Turns on when the computer reads from or writes to the Move your finger on the touch pad to move the mouse hard drive. pointer. Tap to left‑cli...
Page 6
Views Specifications Display Left microphone Camera-status light Provides high‑quality digital sound input for audio Turns on when the camera is in use. recording, voice calls, and so on. Right microp...
Page 7
Specifications Views Dimensions and weight Width 328 mm (12.91 in) Depth 235 mm (9.25 in) Height: HD (Non touch) 26.41 mm to 28.90 mm (1.03 in to 1.14 in) Full HD (Non touch) 26.41 mm to 28.90 mm (1.0...
Page 8
Specifications Views System information Computer model Alienware 13 R2 Processor • 6th generation Intel Core i5 • 6th generation Intel Core i7 L3 cache • 3 MB • 4 MB Dimensions and System Ports and Me...
Page 9
Specifications Views Memory Slot Two SODIMM slots Type DDR3L Speed 1600 MHz Configurations supported 8 GB, 12 GB, and 16 GB Dimensions and System Ports and Memory Communications Video Audio Storage we...
Page 10
Specifications Views Ports and connectors External: Network One RJ45 port USB • One USB 3.0 port with Powershare • One USB 3.0 port • One Thunderbolt 3 port (USB‑C) Audio/video • One HDMI port • One h...
Page 11
Specifications Views Communications Ethernet 10/100/1000 Mbps Ethernet controller integrated on system board Wireless • Wi‑Fi 802.11ac • Bluetooth 4.1 • Wireless display (Wi Di) (optional) • Miracast ...
Page 12
Specifications Views Video Controller Intel HD Graphics 520 Memory Shared system memory Discrete: Controller NVIDIA Ge Force GTX 960M Memory 2 GB GDDR5 Dimensions and System Ports and Memory Communica...
Page 13
Specifications Views Audio Controller Realtek ALC 3234 with Creative Sound Blaster X‑Fi MB3 Speakers Two (Klipsch powered stereo speaker system) Speaker output: Average 2 W Peak 2.5 W Microphone Digit...
Page 14
Specifications Views Storage Interface SATA 6 Gbps Hard drive One 2.5‑inch drive Solid‑state drive Two M.2 PCIe/SATA drives NOTE: Your computer can accommodate either one 2.5‑inch hard drive or two so...
Page 15
Specifications Views Display Type • 13.3‑inch HD • 13.3‑inch Full HD • 13.3‑inch QHD+ Non touch (HD) Non touch (Full HD) Touch (QHD+) Resolution (maximum) 1366 x 768 1920 x 1080 3200 x 1800 (QHD+) Dim...
Page 16
Specifications Views Keyboard Type Backlit keyboard Shortcut keys Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary funct...
Page 17
Keyboard Shortcut keys Allows to disconnect Alienware Graphics Amplifier Disable/Enable wireless Mute audio Decrease volume Increase volume Switch to external display Decrease brightness Increase brig...
Page 18
Specifications Views Camera Resolution: Still image 2.1 megapixel Video 1920 x 1080 (Full HD) at 30 fps (maximum) Diagonal viewing angle 74 degrees Dimensions and System Ports and Memory Communication...
Page 19
Specifications Views Touch pad Resolution: Horizontal 2417 dpi Vertical 2189 dpi Dimensions: Width 107 mm (4.21 in) Height 67 mm (2.63 in) Dimensions and System Ports and Memory Communications Video A...
Page 20
Specifications Views Battery Type • 4‑cell lithium polymer 51 WHr • 4‑cell lithium polymer 62 WHr Dimensions: Width 299.20 mm (11.78 in) Depth 76.83 mm (3.02 in) Height 13.50 mm (0.53 in) Weight (maxi...
Page 21
Specifications Views Power adapter Type 130 W Input voltage 100 VAC–240 VAC Input frequency 50 Hz–60 Hz Input current 2.5 A Output current 6.70 A Rated output voltage 19.50 VDC Temperature range: Oper...
Page 22
Specifications Views Computer environment Airborne contaminant level G1 as defined by ISA‑S71.04‑1985 Operating Storage Temperature range 0°C to 35°C (32°F to 95°F) –40°C to 65°C (–40°F to 149°F) Rela...
