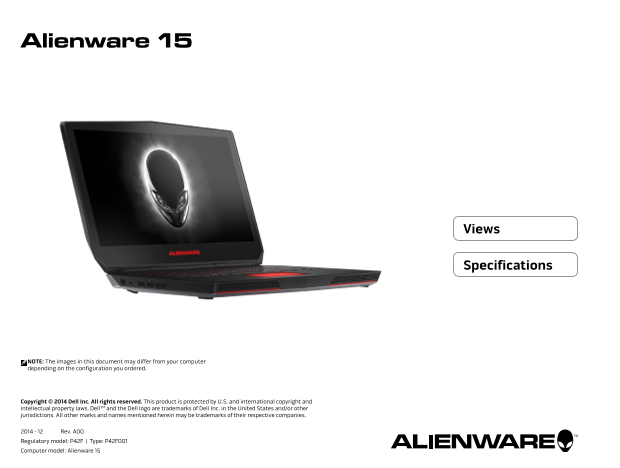

Page 1
Alienware 15 Views Specifications NOTE: The images in this document may differ from your computer depending on the configuration you ordered. Copyright © 2014 Dell Inc. All rights reserved. This produ...
Page 2
Views Specifications External Graphics Port HDMI port Connect an Alienware Graphics Amplifier. Connect a TV or another HDMI‑in enabled device. Provides video and audio output. Mini Display Port Connec...
Page 3
Views Specifications Power-adapter port USB 3.0 port Connect a power adapter to provide power to your Connect peripherals such as storage devices, printers, and computer and charge the battery. so on....
Page 4
Views Specifications Media-card reader Network port Reads from and writes to media cards. Connect an Ethernet (RJ45) cable from a router or a broadband modem for network or internet access. USB 3.0 po...
Page 5
Views Specifications Power button with power-status light Wireless-status light Press to turn on the computer if it is turned off or in sleep Turns on when wireless is turned on. state. Hard-drive act...
Page 6
Views Specifications Display Left digital-array microphone Camera-status light Provides high‑quality digital sound input for audio Turns on when the camera is in use. recording, voice calls, and so on...
Page 7
Specifications Views Dimensions and Weight Height 34 mm (1.33 in) Width 386 mm (15.19 in) Depth 270 mm (10.62 in) Weight (maximum): Full HD (non‑touch screen) 3.22 kg (7.10 lb) Ultra HD (touch screen)...
Page 8
Specifications Views System Information Computer model Alienware 15 Processor 4th Generation Intel Core i5 4th Generation Intel Core i7 Dimensions and System Ports and Memory Communications Video Audi...
Page 9
Specifications Views Memory Slot Two SODIMM slots Type DDR3L Speed 1600 MHz Configurations supported 8 GB, 12 GB, and 16 GB Dimensions and System Ports and Memory Communications Video Audio Storage We...
Page 10
Specifications Views Ports and Connectors External: Network One RJ45 port USB One USB 3.0 port with Power Share Three USB 3.0 ports Audio/video One HDMI port One headphone and microphone combo (headse...
Page 11
Specifications Views Communications Ethernet 10/100/1000 Mbps Ethernet controller integrated on system board Wireless Wi‑Fi 802.11ac Bluetooth 4.0 Intel Wi Di (optional) Miracast (Windows 8.1) Dimensi...
Page 12
Specifications Views Video Controller Memory Integrated Intel HD Graphics 4600 Shared system memory Discrete NVIDIA Ge Force GTX 965M 2 GB GDDR5 NVIDIA Ge Force GTX 970M 3 GB GDDR5 NVIDIA Ge Force GTX...
Page 13
Specifications Views Audio Controller Creative Sound Core3D‑EX with Creative Sound Blaster X‑Fi MB3 Speaker Two Klipsch powered stereo speaker system Speaker output: Average 1.5 W Peak 2 W Microphone ...
Page 14
Specifications Views Storage Interface SATA 6 Gbps Drives supported One hard drive and two M.2 Solid State Drives (SSD) Hard drive One 2.5‑inch drive SSD Two M.2 drives Dimensions and System Ports and...
Page 15
Specifications Views Media-Card Reader Type One 3‑in‑1 slot Cards supported SD card SD High‑Capacity (SDHC) card SD Extended‑Capacity (SDXC) card Dimensions and System Ports and Memory Communications ...
Page 16
Specifications Views Display Non-touch screen Touch screen Type 15.6‑inch Full HD 15.6‑inch Ultra HD Resolution (maximum) 1920 x 1080 3840 x 2160 Dimensions: Height 193.59 mm (7.62 in) 194.40 mm (7.65...
Page 17
Specifications Views Keyboard Type Backlit keyboard Shortcut keys Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary funct...
Page 18
Keyboard Shortcut Keys Allows to disconnect Alienware Graphics Amplifier Disable/Enable wireless Mute audio Macro keys NOTE: You can configure modes and assign multiple tasks for the macro keys on the...
Page 19
Specifications Views Camera Resolution: Still image 2.1 megapixel Video 1920 x 1080 (Full HD) at 30 fps (maximum) Diagonal viewing angle 74 degrees Dimensions and System Ports and Memory Communication...
Page 20
Specifications Views Touch Pad Resolution: Horizontal 1727 dpi Vertical 1092 dpi Dimensions: Height 56 mm (2.20 in) Width 100 mm (3.94 in) Dimensions and System Ports and Memory Communications Video A...
Page 21
Specifications Views Battery Type 8 cell Lithium‑ion 92 WHr Dimensions: Height 19.85 mm (0.78 in) Width 333.85 mm (13.14 in) Depth 79.10 mm (3.11 in) Weight (maximum) 0.497 kg (1.10 lb) Voltage 14.8 V...
Page 22
Specifications Views Power Adapter Type 180 W Input voltage 100 VAC–240 VAC Input frequency 50 Hz–60 Hz Input current 2.34 A Output current 9.23 A Rated output voltage 19.50 VDC Temperature range: Ope...
Page 23
Specifications Views Computer Environment Airborne contaminant level G1 as defined by ISA‑S71.04‑1985 Operating Storage Temperature range 0°C to 35°C (32°F to 95°F) –40°C to 65°C (–40°F to 149°F) Rela...
