Dell Inspiron 15 (1564) Comprehensive Specifications
Summary
Access detailed specifications and technical documentation for the Inspiron 1564 laptop. This comprehensive manual provides essential guidance for setup, driver updates, and component upgrades, covering processors (Intel Core i3/i5), DDR3 memory configurations up to 8GB, various connectivity options (USB, HDMI), and display details. It is designed for users who require in-depth knowledge of hardware specifications or are planning system improvements and maintenance.
Page 1 Text Content
Pryce CS.fm Page 9 Thursday, December 17, 2009 4:29 PM

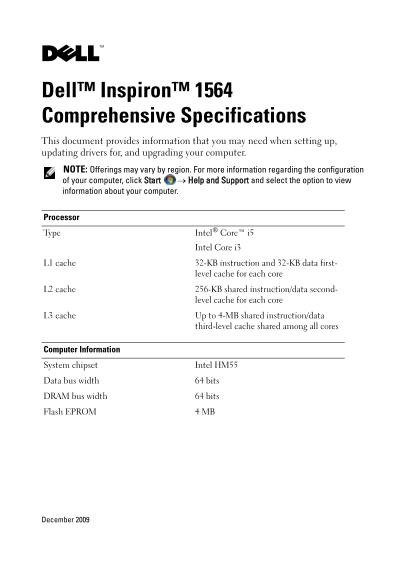

Dell™ Inspiron™ 1564 Comprehensive Specifications This document provides information that you may need when setting up, updating drivers for, and upgrading your computer. NOTE: Offerings may vary by region. For more information regarding the configuration of your computer, click Start → Help and Support and select the option to view information about your computer.
Processor Type Intel® Core™ i5
Intel Core i3
L1 cache 32-KB instruction and 32-KB data first-
level cache for each core
L2 cache 256-KB shared instruction/data second-
level cache for each core
L3 cache Up to 4-MB shared instruction/data
third-level cache shared among all cores
Computer Information System chipset Intel HM55 Data bus width 64 bits DRAM bus width 64 bits Flash EPROM 4 MB
December 2009
Page Summary Contents For Dell Inspiron 15 (1564) Comprehensive Specifications
Manual Details
| Brand | Comprehensive |
|---|---|
| Pages | 8 |
| File Size | 623.70 KB |
| Published | May 18, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What memory types and capacities can I install?
It supports DDR3 1066 MHz, with configurations available in 2 GB, 3 GB, 4 GB, 6 GB, or 8 GB using SODIMM connectors.
What card formats are compatible with the reader?
The built-in reader supports Secure Digital (SD), SDHC, MMC, Memory Stick, xD-Picture Card, and more.
Is wireless connectivity included?
Yes, it has a Mini-Card slot supporting WiFi® 802.11a/b/g/n and Bluetooth technology.
What is the maximum operating temperature range?
For both operation and storage, the recommended temperature range is 0° to 35° C (or –40° to 65° C for storage).
