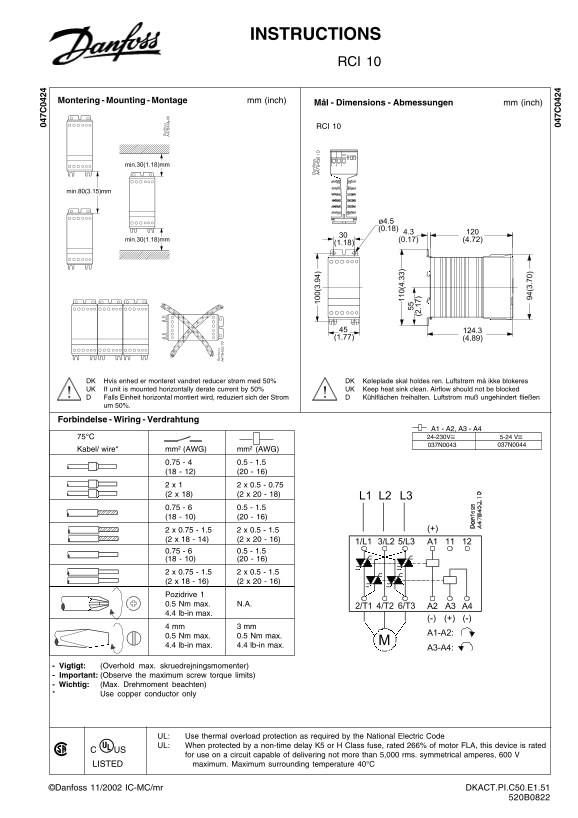

Page 1 Text Content
INSTRUCTIONS
RCI 10
Montering - Mounting - Montage mm (inch)
Mål - Dimensions - Abmessungen mm (inch)
RCI 10
DK Hvis enhed er monteret vandret reducer strøm med 50% DK Køleplade skal holdes ren. Luftstrøm må ikke blokeres UK If unit is mounted horizontally derate current by 50% UK Keep heat sink clean. Airflow should not be blocked Falls Einheit horizontal montiert wird, reduziert sich der Strom Kühlflächen freihalten. Luftstrom muß ungehindert fließen um 50%.
Forbindelse - Wiring - Verdrahtung
Kabel/ wire* mm2 (AWG) mm2 (AWG)
2 x 0.75 - 1.5 2 x 0.5 - 1.5 (2 x 18 - 16) (2 x 20 - 16) Pozidrive 1 0.5 Nm max. N.A. 4.4 lb-in max. 4 mm 3 mm 0.5 Nm max. 0.5 Nm max. 4.4 lb-in max. 4.4 lb-in max.
- Vigtigt: (Overhold max. skruedrejningsmomenter) - Important: (Observe the maximum screw torque limits) - Wichtig: (Max. Drehmoment beachten)
Use copper conductor only
UL: Use thermal overload protection as required by the National Electric Code UL: When protected by a non-time delay K5 or H Class fuse, rated 266% of motor FLA, this device is rated
C SUS
for use on a circuit capable of delivering not more than 5,000 rms. symmetrical amperes, 600 V LISTED maximum. Maximum surrounding temperature 40°C
©Danfoss 11/2002 IC-MC/mr DKACT.PI.C50.E1.51
