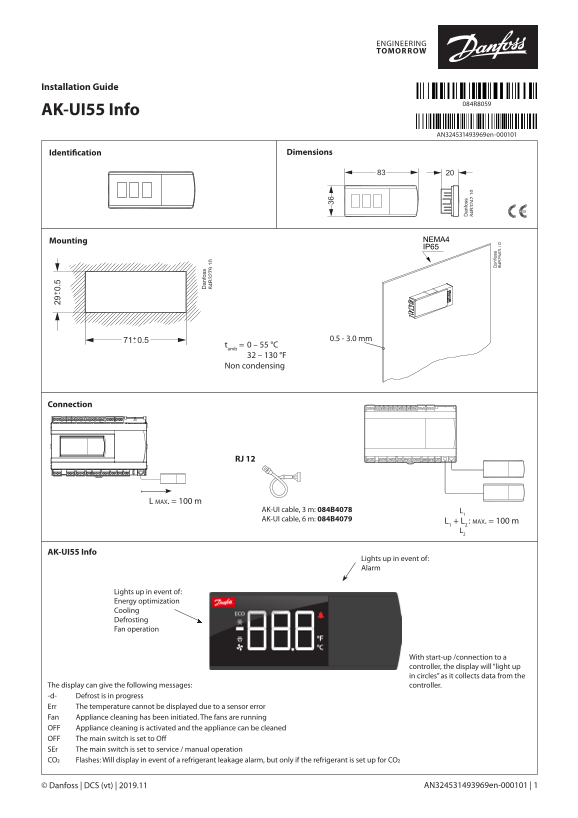

Installation Guide
AK-UI55 Info
AN324531493969en-000101
Identification Dimensions
Mounting NEMA4 IP65
0.5 - 3.0 mm
= 0 – 55 °C amb 32 – 130 °F Non condensing
Connection
RJ 12
L max. = 100 m
AK-UI cable, 3 m: 084B4078 AK-UI cable, 6 m: 084B4079
+ L : max. = 100 m
AK-UI55 Info
Lights up in event of: Alarm
Lights up in event of: Energy optimization Cooling Defrosting Fan operation
With start-up /connection to a controller, the display will “light up in circles” as it collects data from the
The display can give the following messages: controller. -d- Defrost is in progress Err The temperature cannot be displayed due to a sensor error Fan Appliance cleaning has been initiated. The fans are running OFF Appliance cleaning is activated and the appliance can be cleaned OFF The main switch is set to Off SEr The main switch is set to service / manual operation CO2 Flashes: Will display in event of a refrigerant leakage alarm, but only if the refrigerant is set up for CO2
