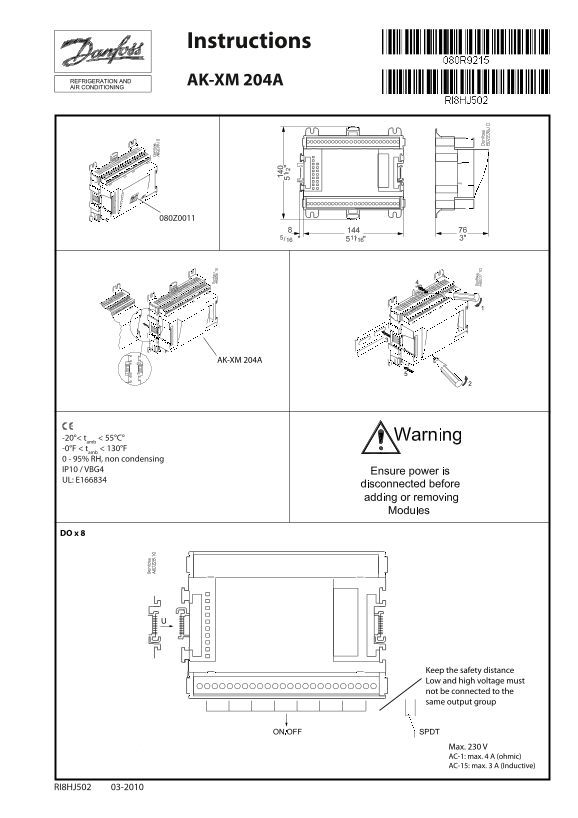

Instructions AK-XM 204A
AK-XM 204A
-20°< t < 55°C° amb -0°F < t < 130°F amb 0 - 95% RH, non condensing IP10 / VBG4 UL: E166834
DO x 8
Keep the safety distance Low and high voltage must not be connected to the same output group
Max. 230 V AC-1: max. 4 A (ohmic) AC-15: max. 3 A (Inductive)
RI8HJ502 03-2010
