Danfoss AK-UI55 Bluetooth - Installation Guide
Summary
The AK-UI55 is a durable, Bluetooth-enabled industrial display designed for modern climate control systems. This manual provides step-by-step setup instructions, enabling users to securely connect and configure the unit using our dedicated mobile application (via App Store or Google Play). It allows technicians to remotely access and manage system parameters, streamlining maintenance and diagnostics in challenging environments (rated IP65). Ideal for HVAC professionals and system integrators requiring advanced wireless connectivity and reliable monitoring.

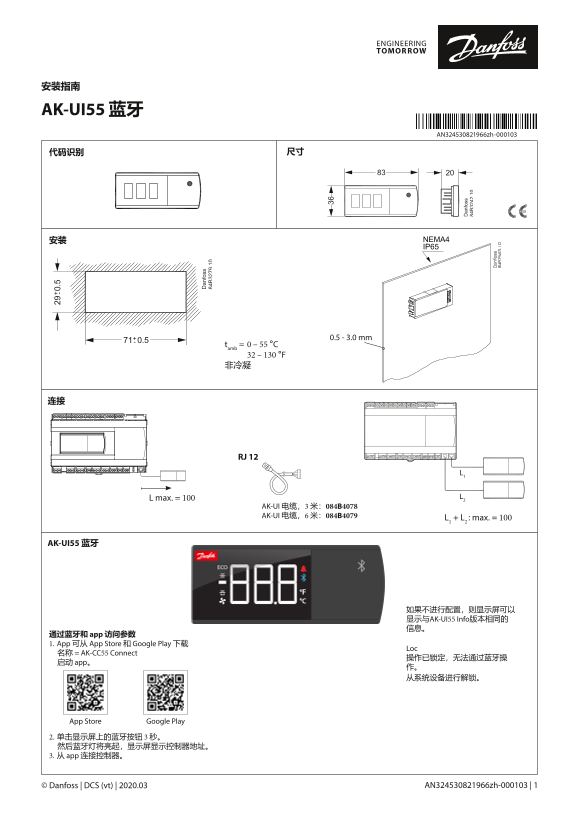

Page 1 Text Content
AK-UI55 蓝牙
AN324530821966zh-000103
安装 NEMA4 IP65
0.5 - 3.0 mm
tamb = 0 – 55 °C 32 – 130 °F 非冷凝
RJ 12
L max. = 100
AK-UI 电缆，3 米：084B4078 AK-UI 电缆，6 米：084B4079
L1 + L2 : max. = 100
AK-UI55 蓝牙
如果不进行配置，则显示屏可以 显示与AK-UI55 Info版本相同的 信息。
通过蓝牙和 app 访问参数 1. App 可从 App Store 和 Google Play 下载
名称 = AK-CC55 Connect
启动 app。
App Store Google Play
2. 单击显示屏上的蓝牙按钮 3 秒。 然后蓝牙灯将亮起，显示屏显示控制器地址。 3. 从 app 连接控制器。
© Danfoss | DCS (vt) | 2020.03 AN324530821966zh-000103 | 1
Page Summary Contents For Danfoss AK-UI55 Bluetooth - Installation Guide
Manual Details
| Brand | Danfoss |
|---|---|
| Pages | 2 |
| File Size | 514.49 KB |
| Published | June 03, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How do I start the Bluetooth pairing process for AK-UI55?
To initiate, press the Bluetooth button on the display screen for 3 seconds, allowing the indicator light to turn on.
What should I do if my device experiences radio interference?
Try reorienting or relocating the receiving antenna, increasing separation between equipment and receiver, or connecting it to a different circuit outlet.
Can the display operate normally before full configuration?
Yes, even without setup, the screen will show information matching the AK-UI55 Info version, and parameters can be accessed via Bluetooth and the app.
Are structural modifications allowed on this equipment?
No. Any changes or modifications not expressly approved may void the authority to use the equipment from the FCC.
What cabling options are listed for various lengths?
The manual lists specific parts: 084B4078 for a 3-meter cable and 084B4079 for a 6-meter cable.
