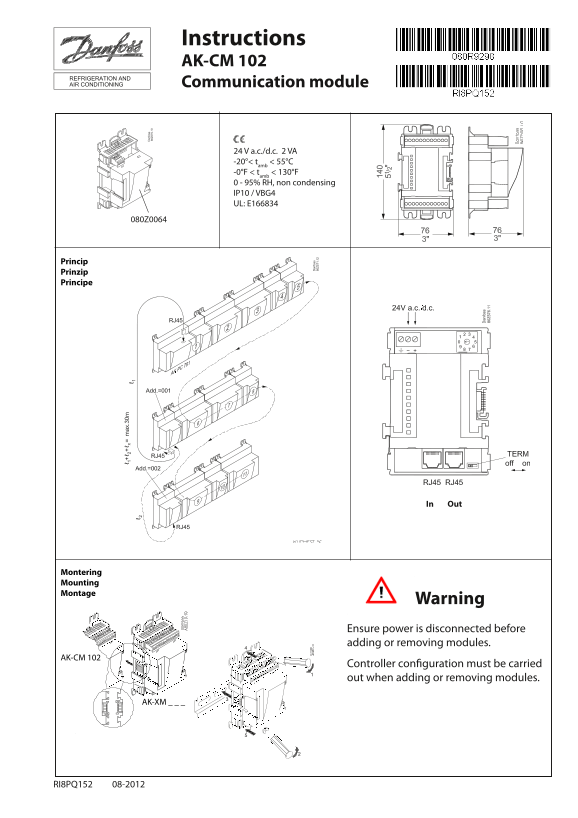

Instructions AK-CM 102 Communication module
24 V a.c./d.c. 2 VA -20°< tamb < 55°C -0°F < tamb < 130°F 0 - 95% RH, non condensing IP10 / VBG4 UL: E166834
Princip Prinzip Principe
In Out
Montering Mounting Montage
Warning Ensure power is disconnected before
adding or removing modules.
AK-CM 102
Controller configuration must be carried out when adding or removing modules.
AK-XM _ _ _
RI8PQ152 08-2012
