Danfoss Extension Module AK-XM 103A Datasheet
Summary
Enhance your refrigeration control infrastructure with this high-capacity extension module. Featuring four analog inputs (AI) for connecting diverse sensors—including temperature, pressure transmitters, and voltage signals—and four analog outputs (AO) for precise speed management via 0-10V signals. This unit is designed to integrate serially with existing ADAP-KOOL® controllers when I/O capacity is limited. The accompanying manual provides comprehensive guidance on installation, signal wiring protocols, and detailed technical specifications, making it essential equipment for HVAC professionals and system integrators requiring robust, scalable process control automation.
Page 1 Text Content

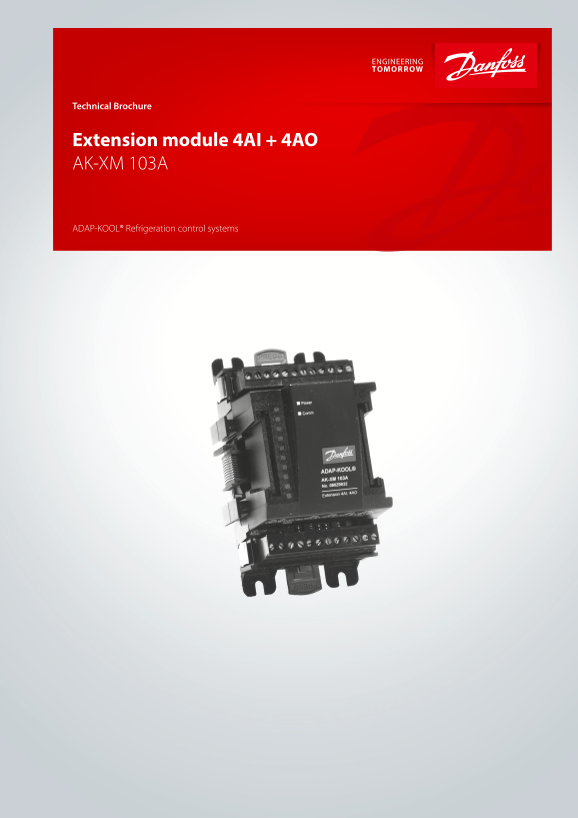

Technical Brochure
Extension module 4AI + 4AO AK-XM 103A
ADAP-KOOL® Refrigeration control systems
Extension module 4AI + 4AO AK-XM 103A
Page Summary Contents For Danfoss Extension Module AK-XM 103A Datasheet
Manual Details
| Brand | Danfoss |
|---|---|
| Pages | 4 |
| File Size | 859.09 KB |
| Published | June 03, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the primary function of the AK-XM 103A module?
It provides four analog inputs (for sensors/signals) and four analogue outputs (for speed control, 0-10V).
How should I connect this extension module?
Connect it to the plug from the previous module in the sequence and use the internal terminals for proper wiring.
What are the typical operating temperature limits?
It can operate in an environment ranging from -20 to 55°C and 0 to 95% RH (non-condensing).
How is power supplied for pressure transmitters?
Pressure transmitter supply voltage can be taken from either the 5 V output or the 12 V output, depending on the specific transmitter type.
