Danfoss HFI 040-070 Installation Guide
Summary
This comprehensive guide details the setup and maintenance of High Pressure Float Valves. It provides expert instructions for safe installation procedures, including critical steps for welding protection, nitrogen purging, and replacing full float assemblies. Essential warnings are provided regarding system safety to prevent damaging incidents like liquid hammering. This manual is designed for HVAC specialists, mechanical engineers, and refrigeration technicians who require precise, reliable guidance for servicing industrial cooling systems using HFI valves.
Page 1 Text Content

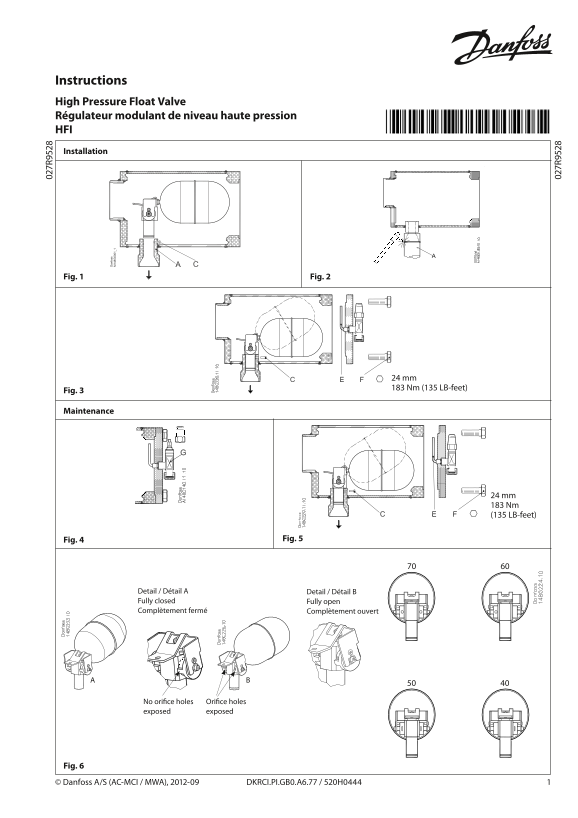

Instructions High Pressure Float Valve Régulateur modulant de niveau haute pression HFI Installation
Fig. 1 Fig. 2
24 mm 183 Nm (135 LB-feet)
Fig. 3
Maintenance
24 mm 183 Nm (135 LB-feet)
Fig. 4 Fig. 5
Detail / Détail A Detail / Détail B Fully closed Fully open Complètement fermé Complètement ouvert
No orifice holes Orifice holes exposed exposed
Fig. 6 © Danfoss A/S (AC-MCI / MWA), 2012-09 DKRCI.PI.GB0.A6.77 / 520H0444 1
