ASUS Server Workstation Universal Server RS720A-E12-RS12 Tool-less Friction Rail Kit Installation Guide

Summary

The Tool-less Friction Rail Kit provides an efficient and stable way to mount server chassis within standard data racks without specialized tools. This comprehensive guide walks IT technicians through every step of deployment, covering bracket installation on the server unit, proper positioning and securing of the rack rails, and finally, lifting and mounting the entire server into place. It is essential reading for professionals responsible for safely assembling or upgrading complex server infrastructure in a data center environment.

📄 Preview ‹ PAGE OF 6 ›

‹

ASUS Server Workstation Universal Server RS720A-E12-RS12 Tool-less Friction Rail Kit Installation Guide - Page 1

›

Page 1 Text Content

ae E21630

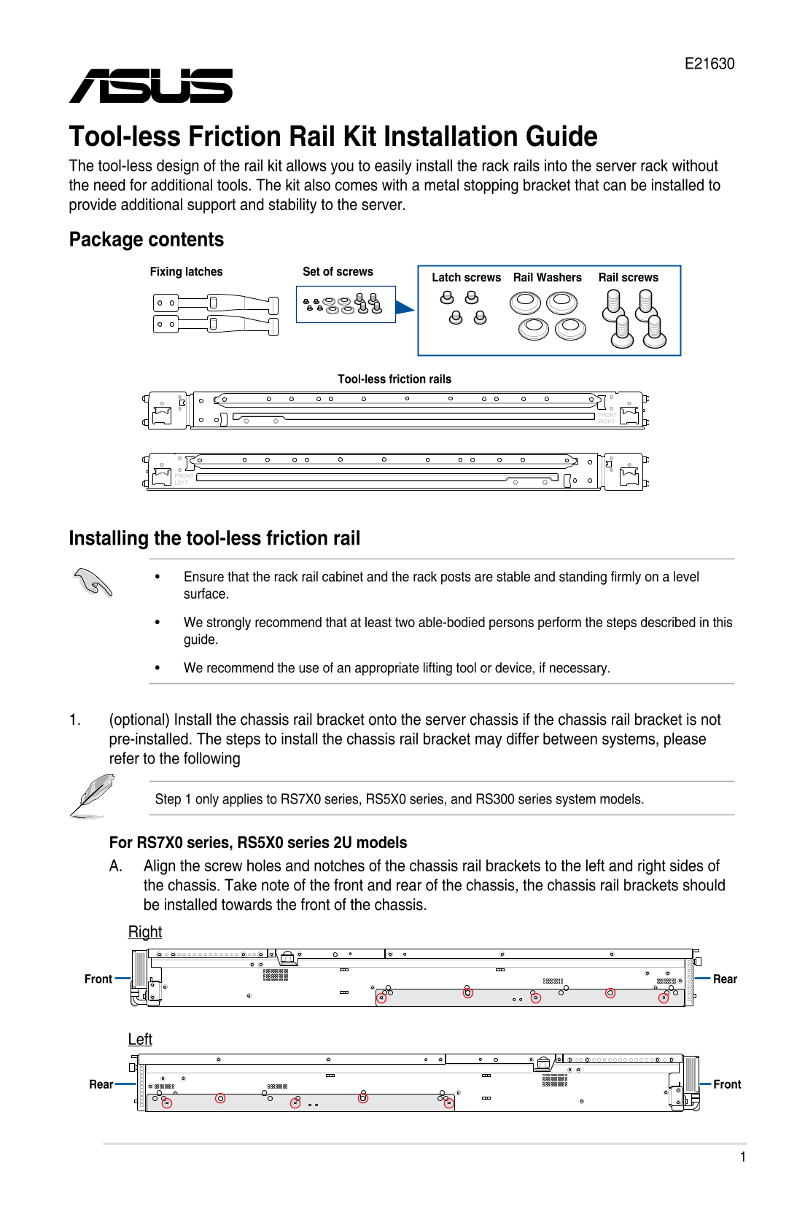

Tool-less Friction Rail Kit Installation Guide The tcol-less design ofthe rail kit allows you to easily install the rack rails into the server rack without the need for additional tools. The kit also comes with a metal stopping bracket that can be installed to provide additional support and stability to the server-.

Package contents

Fixing latches Setof screws Latch screws Rail Washers 。 Rail screws

EEC [was | 95 2Q 84 Toolless ffiction rails 间距 9 6 5 IE 豆上

招亲 IC 5 ER 二品

Installing the tool-less friction rail

ASN * Ensure that the rack rail cabinet and the rack posts are stable and standing frmly on alevel

surface.

*， We strongly recommend that at least two able-bodied persons perform the steps described in this

guide.

*， We recommend the use of an appropriate lifting tool or device, if necessary-

1 (optional) Install the chassis rail bracket onto the Server chassis ifthe chassis rail bracket is not pre-installed. The steps to install the chassis rail bracket may differ between systems, please refer to the following

5 Step 1 only applies to RS7X0 series, RS5X0 series, and RS300 series System models. For RS7X0 series, RS5X0 series 2U models AAAlign the screw holes and notches of the chassis rail brackets to the left and right sides of

the chassis. Take note of the front and rear of the chassis, the chassis rail brackets should

be installed towards the front of the chassis.

Page Summary Contents For ASUS Server Workstation Universal Server RS720A-E12-RS12 Tool-less Friction Rail Kit Installation Guide

Page 1 ae E21630 Tool-less Friction Rail Kit Installation Guide The tcol-less design ofthe rail kit allows you to easily install the rack rails into the server rack without the need for additional tools. The...

Page 2 B， S$ecure the chassis rail brackets to the side of the chassis Using three (3) Screws on each side. Righ 站 [aa ED Ts = = Front 一上一。一忆 L 。 =” 邯各二 5 For RS7X0 series, RS5X0 series 1U models A、。 ...

Page 3 Secure the two fixing latches to the two sides of the server using the set of latch Screws, The locations of the Screw holes vary with different server models. Refer to the following diagrams for the ...

Page 4 3 Select a desired space and place the appropriate rack rail lleft and right) on cpposite positions on the rack. 2 六 1U space consists of three square mounting holes with two thin lips on the top and ...

Page 5 5， ”Press the spring lock on the other end of rail then insert the stud into the mounting hole on the rack post. Extend the rack rail, if necessary. 6， (Optional) Use the rail screw and rail washer th...
