ASUS Server Workstation Universal Server RS720A-E11-RS24U Tool-less Friction Rail Kit Installation Guide
Summary
This Friction Rail Kit provides a tool-less solution for installing reliable server rack supports and enhancing system stability in data center environments. Included with the kit are mounting brackets and stabilizing components designed for easy assembly onto your server chassis and into the main rack frame. The detailed guide covers every step of installation, from securing the chassis brackets to mounting the robust rack rails and finally seating the server unit securely. This product is essential for IT technicians and system builders who require efficient, hands-down hardware integration for maintaining organized and stable server deployments.
Page 1 Text Content

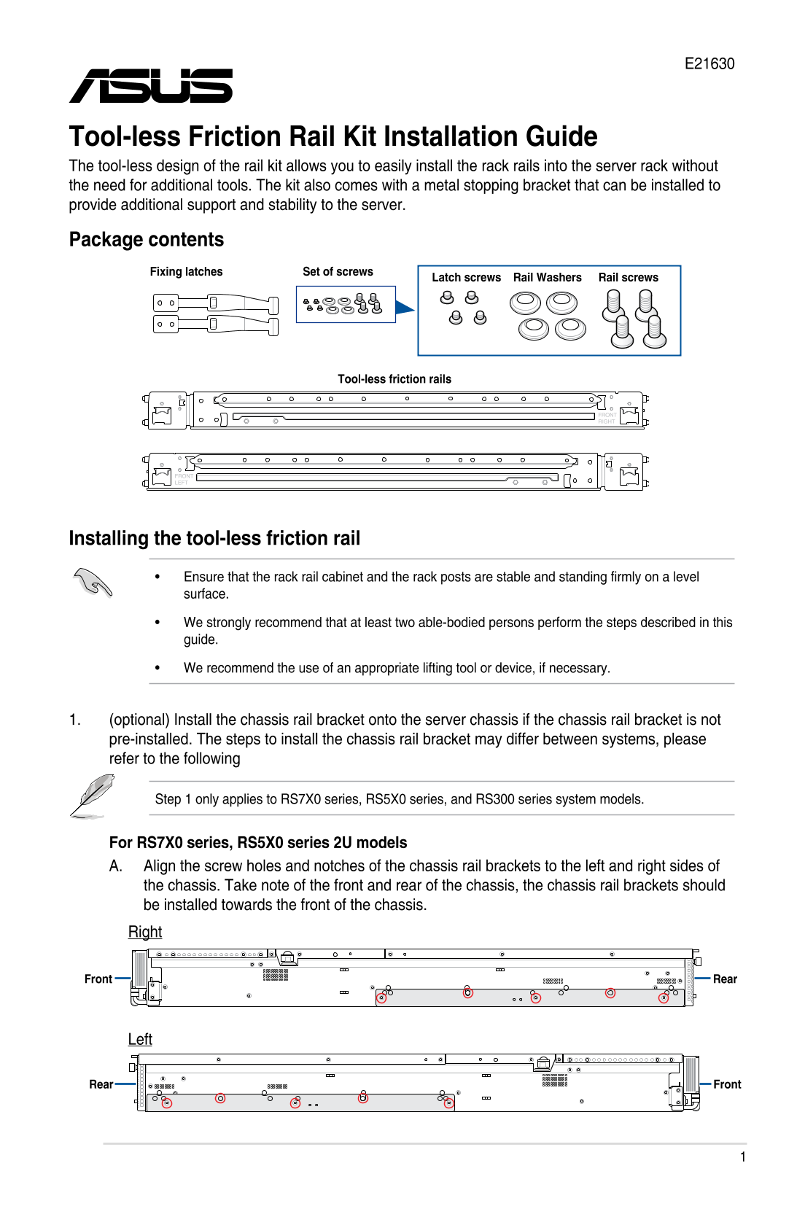

ae E21630
Tool-less Friction Rail Kit Installation Guide The tcol-less design ofthe rail kit allows you to easily install the rack rails into the server rack without the need for additional tools. The kit also comes with a metal stopping bracket that can be installed to provide additional support and stability to the server-.
Package contents
Fixing latches Setof screws Latch screws Rail Washers 。 Rail screws
EEC [was | 95 2Q 84 Toolless ffiction rails 间距 9 6 5 IE 豆 上
招亲 IC 5 ER 二 品
Installing the tool-less friction rail
ASN * Ensure that the rack rail cabinet and the rack posts are stable and standing frmly on alevel
surface.
*， We strongly recommend that at least two able-bodied persons perform the steps described in this
guide.
*， We recommend the use of an appropriate lifting tool or device, if necessary-
1 (optional) Install the chassis rail bracket onto the Server chassis ifthe chassis rail bracket is not pre-installed. The steps to install the chassis rail bracket may differ between systems, please refer to the following
5 Step 1 only applies to RS7X0 series, RS5X0 series, and RS300 series System models. For RS7X0 series, RS5X0 series 2U models AAAlign the screw holes and notches of the chassis rail brackets to the left and right sides of
the chassis. Take note of the front and rear of the chassis, the chassis rail brackets should
be installed towards the front of the chassis.
