ASUS Server Workstation Universal Server RS720-E11-RS12U Tool-less Friction Rail Kit Installation Guide
Summary
Effortlessly secure your server in the rack with this tool-less Friction Rail Kit. This comprehensive manual guides technical professionals through every step of the setup process, including mounting chassis brackets, securing fixing latches, and installing durable support rails into standard equipment racks. Designed for maximizing stability and minimizing downtime, it ensures precise, professional installation of your critical IT hardware.
Page 1 Text Content

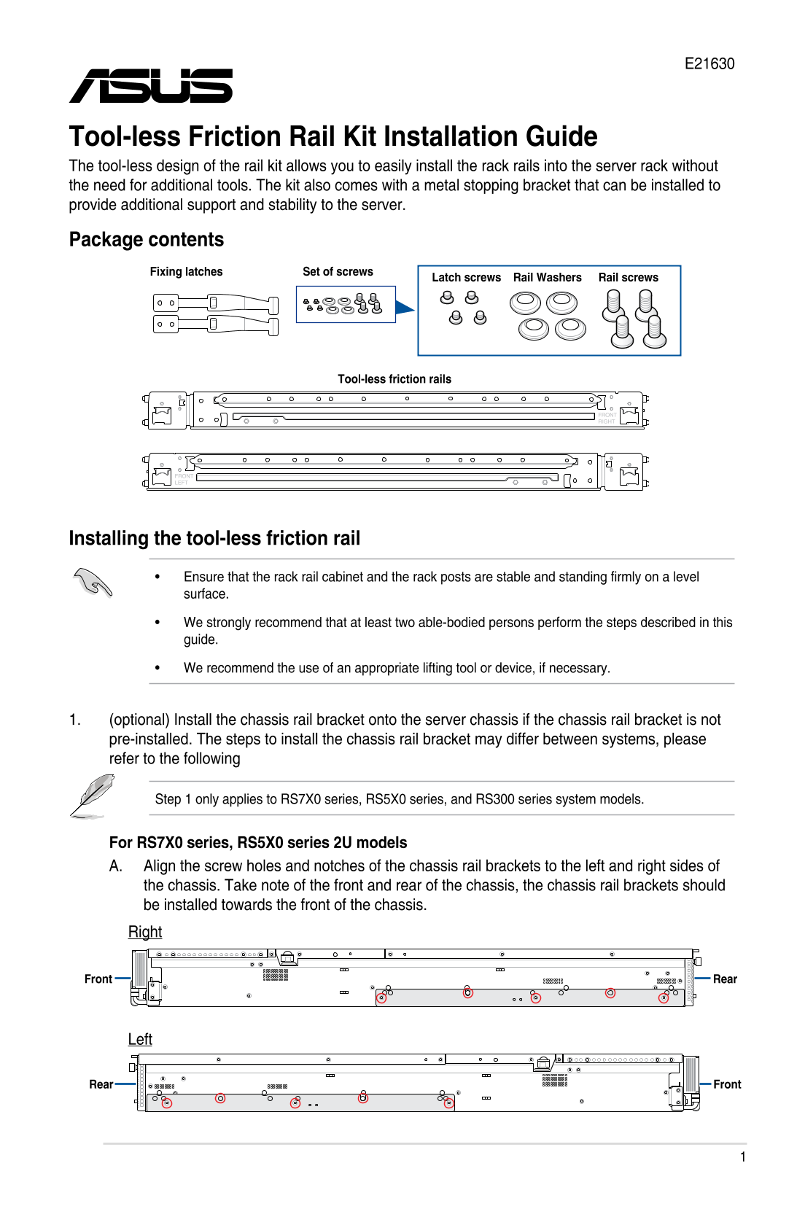

ae E21630
Tool-less Friction Rail Kit Installation Guide The tcol-less design ofthe rail kit allows you to easily install the rack rails into the server rack without the need for additional tools. The kit also comes with a metal stopping bracket that can be installed to provide additional support and stability to the server-.
Package contents
Fixing latches Setof screws Latch screws Rail Washers 。 Rail screws
EEC [was | 95 2Q 84 Toolless ffiction rails 间距 9 6 5 IE 豆 上
招亲 IC 5 ER 二 品
Installing the tool-less friction rail
ASN * Ensure that the rack rail cabinet and the rack posts are stable and standing frmly on alevel
surface.
*， We strongly recommend that at least two able-bodied persons perform the steps described in this
guide.
*， We recommend the use of an appropriate lifting tool or device, if necessary-
1 (optional) Install the chassis rail bracket onto the Server chassis ifthe chassis rail bracket is not pre-installed. The steps to install the chassis rail bracket may differ between systems, please refer to the following
5 Step 1 only applies to RS7X0 series, RS5X0 series, and RS300 series System models. For RS7X0 series, RS5X0 series 2U models AAAlign the screw holes and notches of the chassis rail brackets to the left and right sides of
the chassis. Take note of the front and rear of the chassis, the chassis rail brackets should
be installed towards the front of the chassis.
