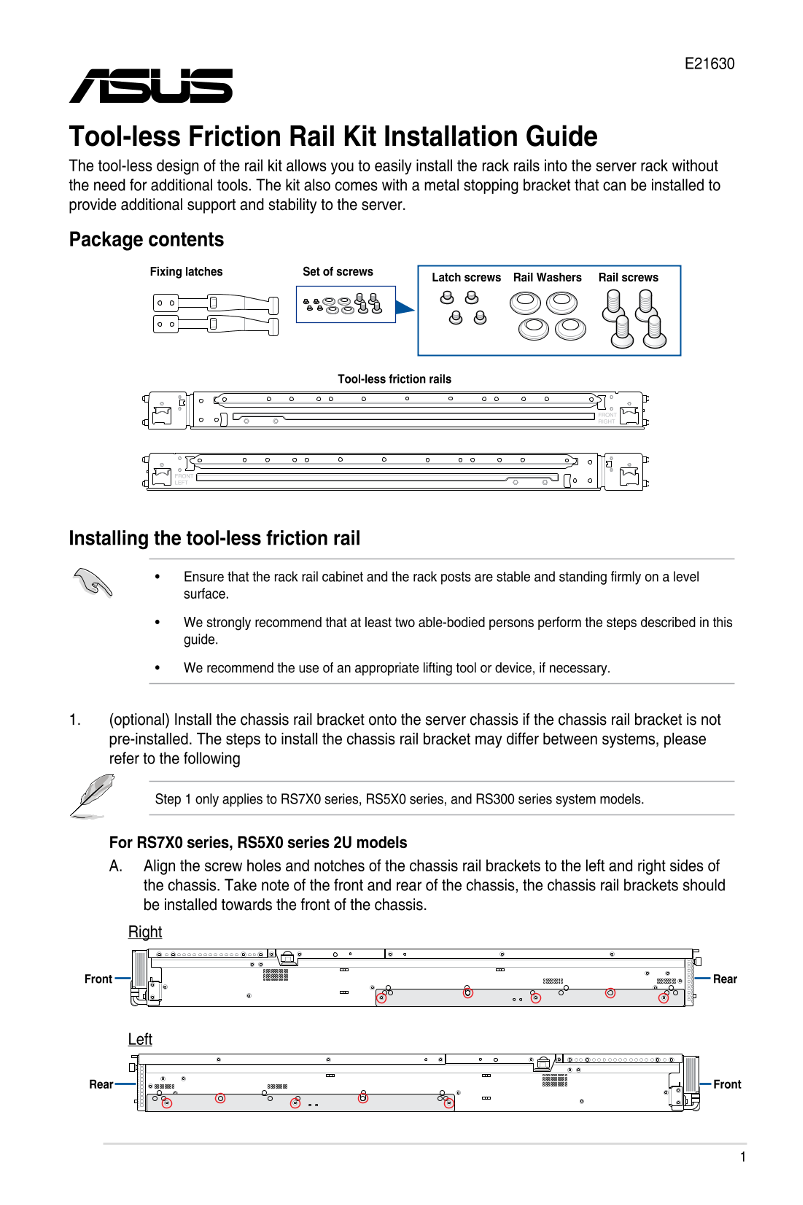

ASUS Server Workstation Universal Server RS520-E9-RS8 V2 Tool-less Friction Rail Kit Installation Guide

ae E21630

Tool-less Friction Rail Kit Installation Guide The tcol-less design ofthe rail kit allows you to easily install the rack rails into the server rack without the need for additional tools. The kit also comes with a metal stopping bracket that can be installed to provide additional support and stability to the server-.

Package contents

Fixing latches Setof screws Latch screws Rail Washers 。 Rail screws

EEC [was | 95 2Q 84 Toolless ffiction rails 间距 9 6 5 IE 豆 上

招亲 IC 5 ER 二 品

Installing the tool-less friction rail

ASN * Ensure that the rack rail cabinet and the rack posts are stable and standing frmly on alevel

surface.

*， We strongly recommend that at least two able-bodied persons perform the steps described in this

guide.

*， We recommend the use of an appropriate lifting tool or device, if necessary-

1 (optional) Install the chassis rail bracket onto the Server chassis ifthe chassis rail bracket is not pre-installed. The steps to install the chassis rail bracket may differ between systems, please refer to the following

5 Step 1 only applies to RS7X0 series, RS5X0 series, and RS300 series System models. For RS7X0 series, RS5X0 series 2U models AAAlign the screw holes and notches of the chassis rail brackets to the left and right sides of

the chassis. Take note of the front and rear of the chassis, the chassis rail brackets should

be installed towards the front of the chassis.
