ASRock BIOS Setup Utility User Guide

Summary

This comprehensive utility provides deep access to your system's core functions, empowering advanced users and builders to fine-tune every aspect of their PC setup. The manual covers extensive topics including precise memory timing control, CPU overclocking settings, managing BIOS security features, updating storage modes (SATA/RAID), and adjusting boot parameters. Ideal for tech enthusiasts and power users who require granular control over hardware performance and stability, allowing for optimized system operation beyond default settings.

📄 Preview ‹ PAGE OF 20 ›

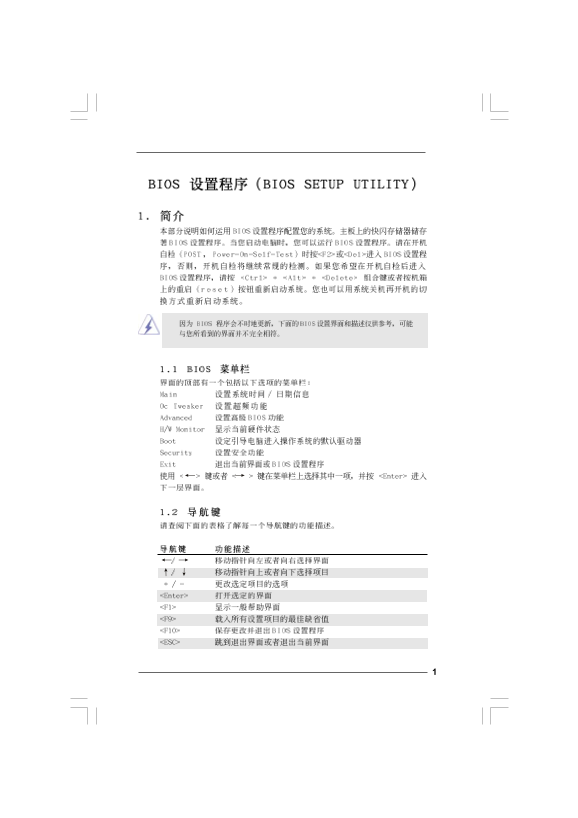

‹ ASRock BIOS Setup Utility User Guide - Page 1 ›

Page Summary Contents For ASRock BIOS Setup Utility User Guide

Page 2 BIOS SETUP UTILITY Main OC Tweaker H/W Monitor Boot Security Exit Advanced System Overview Use [Enter], [TAB] or [SHIFT-TAB] to System Time :00:09] select field. System Date [Tue 07/14/2009] BIOS Vers...
Page 4 BIOS SETUP UTILITY Advanced DRAM Timing Control DRAM t CL DRAM t CL [Auto] DRAM t RCD [Auto] DRAM t RP [Auto] DRAM t RAS [Auto] DRAM t RFC [Auto] DRAM t WR [Auto] DRAM t WTR [Auto] DRAM t RRD [Auto] D...
Page 6 BIOS SETUP UTILITY Main OC Tweaker Advanced H/W Monitor Boot Security Exit Advanced Settings Options for CPU WARNING Setting wrong values in below sections may cause system to malfunction. CPU Configu...
Page 7 BIOS SETUP UTILITY Advanced Configure advanded CPU settings Select the ration between CPU Core Intel (R) Core (TM) CPU 2.93GHz Clock and the FSB Frequency :2.93GHz Frequency. Cache L1 :128 KB Cache L2...
Page 9 BIOS SETUP UTILITY Advanced Chipset Settings ENABLE: Allow remapping of Memory Remap Feature [Disabled] overlapped PCI memory Primary Graphics Adapter [PCI] above the total Onboard HD Audio [Auto] phy...
Page 10 BIOS SETUP UTILITY Advanced ACPI Configuration Select auto-detect or disable the STR Suspend To RAM [Disabled] feature. Restore on AC/Power Loss [Power Off] Ring-In Power On [Disabled] PCI Devices Pow...
Page 11 BIOS SETUP UTILITY Advanced Storage Configuration Options SATAII Operation Mode [IDE] IDE SATAII 1,2,3,4 Configuration [Compatible] RAID SATAII 5,6 Configuration [Enhanced] AHCI Onboard IDE [Enabled] ...
Page 12 BIOS SETUP UTILITY Advanced Primary IDE Master Select the type of device connected Device :Hard Disk to the system. Vendor :ST340014A Size :40.0 GB LBA Mode :Supported Block Mode :16Sectors PIO Mode :...
Page 13 BIOS SETUP UTILITY Advanced Advanced PCI Pn P Settings Value in units of PCI clocks for PCI device latency timer PCI Latency Timer [64] register. PCI IDE Bus Master [Enabled] Select Screen Select Item...
Page 14 BIOS SETUP UTILITY Advanced Floppy Configuration Select the type of floppy drive Floppy [1.44 MB "]1 connected to the system. Select Screen Select Item Change Option F1 General Help F9 Load Defau...
Page 16 BIOS SETUP UTILITY Advanced USB Configuration To enable or disable the onboard USB USB Controller [Enabled] controllers. Legacy USB Support [Enabled] USB 2.0 Rate Matching hub [Enabled] Select Screen ...
Page 17 BIOS SETUP UTILITY Main OC Tweaker Advanced Monitor Boot Security Exit H/W Hardware Health Event Monitoring CPU Temperature M/B Temperature CPU Fan Speed N/A Chassis Fan Speed N/A Power Fan Speed N/A ...
Page 18 BIOS SETUP UTILITY Main OC Tweaker Advanced H/W Monitor Boot Security Exit Boot Settings Configure Settings during System Boot. Boot Settings Configuration 1st Boot Device [1st Floppy Device] 2nd Boot...
Page 19 BIOS SETUP UTILITY Main OC Tweaker Advanced H/W Monitor Boot Security Exit Security Settings Install or Change the password. Supervisor Password Not Installed User Password Not Installed Change Superv...
Page 20 BIOS SETUP UTILITY Main OC Tweaker Advanced H/W Monitor Boot Security Exit Exit Options Exit system setup after saving the Save Changes and Exit changes. Discard Changes and Exit Discard Changes F10 k...
